26170 Water Intrusion To Fan Module Connector (26170)

26170 WATER INTRUSION TO FAN MODULE CONNECTOR

SERVICE CAMPAIGN BULLETIN

SERVICE INFORMATION

Reference Number:  N152026170	Release Date:  August 2016
GWM Number:  2026710	Revision:  00

Attention:

This program is in effect until August 31, 2018.

Make	Model	Model Year		RPO	Description
		From	To
Chevrolet	Camaro	2016	2016	LGX/LTG	V6/L4-Turbo

Involved vehicles are marked "open" on the Investigate Vehicle History screen in GM Global Warranty Management system. This site should always be checked to confirm vehicle involvement prior to beginning any required inspections and/or repairs.

Condition

Certain 2016 model year Chevrolet Camaro vehicles, equipped with a V6 or L4-Turbo engine (RPO LGX or LTG), may have a condition in which water can migrate within the forward lamp wire harness and intrude into the fan control module connector and can lead to connectivity loss and terminal corrosion. If a customer experiences this condition, an SES light (DTC P0480 and possibly P0691) can illuminate. In addition, if the loss of the engine cooling fan operation is not corrected, the condition can lead to engine overheating or engine damage.

Correction

Inspect connector and ground terminals for presence of water or corrosion. Clean and add a sealant and a patch, or replace the wire harness and/or cooling fan module or assembly if necessary.

PARTS

Quantity	Part Name	Part No.
1	Forward Lamp Wiring Harness Assembly	23398676
1	Forward Lamp Wiring Harness Assembly	23398677
1	Forward Lamp Wiring Harness Assembly	23398679
1	Forward Lamp Wiring Harness Assembly	23398680
1	Forward Lamp Wiring Harness Assembly	23398681
1	Deadener (Services 12 Vehicles)	22709067
1	Engine Coolant Fan Assembly	23347101
1	Fan Control Module Assembly	23506648
1	Dielectric Synthetic Lubricant (Services 100 Vehicles)	12377900 (US) 10953529 (CA)
1	Black Weather Strip Adhesive Gel (Services 1500 Vehicles)	12345097 (US) 10953479 (CA)

Note: Use the VIN and the GM Electronic Parts Catalog (EPC) to determine which part to order.

WARRANTY INFORMATION

Labor Operation	Description	Labor Time	Trans. Type	Net Item
9102324	Apply adhesive and deadener patch to G101 and G102 ground and dielectric grease to connector Add: Replace forward lamp wiring harness and replace fan control module (LGX without RPO Y4Q) Add: Replace forward lamp wiring harness and engine coolant fan (LGX with Y4Q or LTG) Add: Fill cooling system	1.3 2.0 2.9 0.3	ZFAT	*

* The amount identified in "Net Item" should represent the actual sum total of the current GMCC&A dealer net price for deadener, dielectric synthetic lubricant, and black weather strip adhesive gel needed to perform the required repairs, not to exceed $0.36 USD, $0.56 CAD, plus applicable Mark-Up or Landed Cost (for Export).

SERVICE PROCEDURE

1. Disconnect the forward lamp wiring harness from the fan control module on vehicles equipped a LGX engine WITHOUT RPO Y4Q. Disconnect the forward lamp wiring harness from the engine coolant fan on vehicles equipped with a LGX engine with RPO Y4Q or a LTG engine.
2. NOTE:

   The forward lamp wiring harness connects to the fan control module on vehicles equipped a LGX engine WITHOUT RPO Y4Q or to the engine coolant fan on vehicles equipped with a LGX engine with RPO Y4Q or a LTG engine.


   Inspect the forward lamp harness and fan connectors for the presence of moisture and/or corrosion.

   Courtesy of GENERAL MOTORS COMPANY

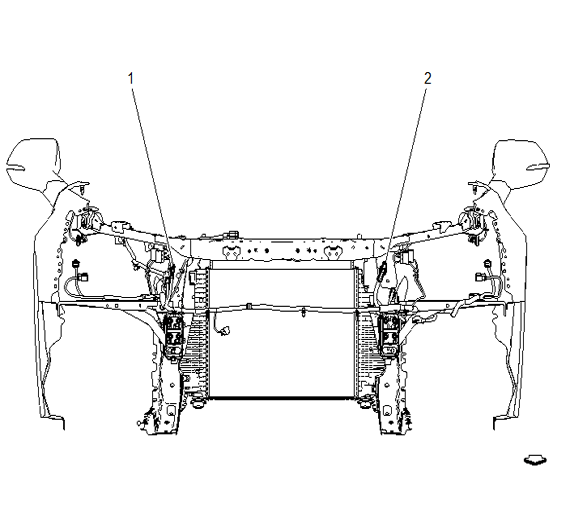

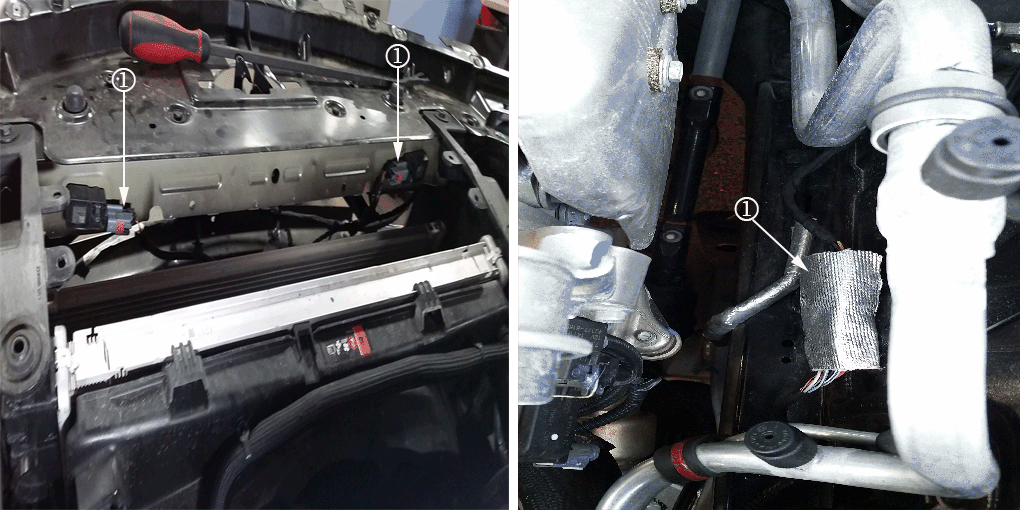

   • If the presence of moisture and/or corrosion is NOT found, apply adhesive and a deadener patch to G101 (2) and G102 (1) and apply dielectric lubricant to the forward lamp wiring harness connector and fan control module (LGX engine without RPO Y4Q) or engine coolant fan connector (LGX engine with RPO Y4Q or a LTG engine). Refer to steps 9-12, 16-20, and 22-23 below.
   • If the presence of moisture and/or corrosion is found, the forward lamp wiring harness and the fan control module assembly will require replacement on vehicles equipped with a LGX engine WITHOUT RPO Y4Q or the engine coolant fan will require replacement on vehicles equipped with a LGX engine with RPO Y4Q or a LTG engine. Proceed to step 3.
3. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection   in SI.
4. Remove the covers from the engine wiring harness junction block.

   Courtesy of GENERAL MOTORS COMPANY

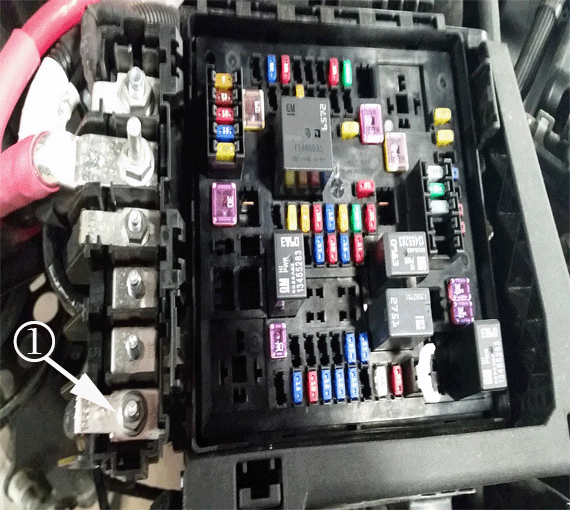

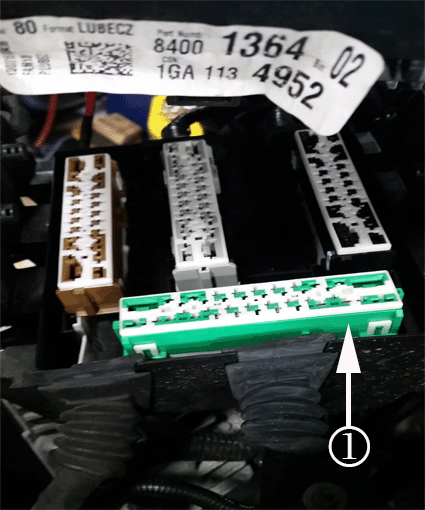

5. Disconnect the forward lamp wiring harness cable (1).

   Courtesy of GENERAL MOTORS COMPANY

6. Slide the locking bar forward to release the engine wiring harness junction block (1) from the engine wiring harness junction block bracket.

   Courtesy of GENERAL MOTORS COMPANY

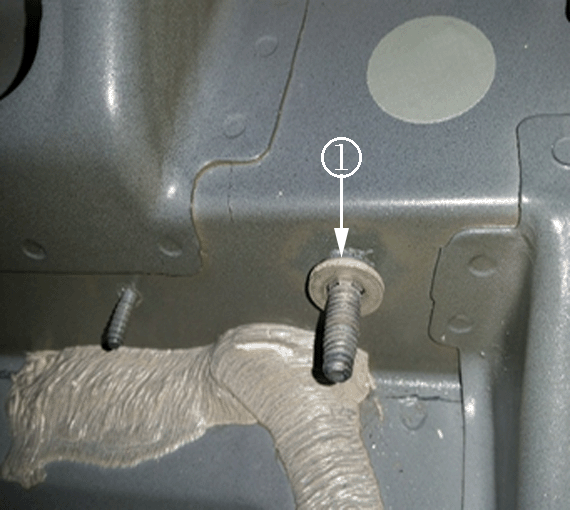

7. Remove the forward lamp harness connector (1) from the engine wiring harness junction block bracket.
8. Remove the air cleaner outlet duct and air cleaner assembly. Refer to Air Cleaner Assembly Replacement  in SI.
9. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement   in SI.
10. Remove both front headlamp assemblies. Refer to Headlamp Replacement (HID)   or Headlamp Replacement (Halogen)   in SI.
11. Remove both intake air baffles. Refer to Intake Air Baffle Replacement  in SI.

    Courtesy of GENERAL MOTORS COMPANY

12. Remove the driver side front fender front brace. Refer to Front Fender Front Brace Replacement   in SI.
13. Remove the radiator air upper baffle and deflector. Refer to Radiator Air Upper Baffle and Deflector Replacement (LGX)   or Radiator Air Upper Baffle and Deflector Replacement (LTG)  in SI.

    Courtesy of GENERAL MOTORS COMPANY

    Courtesy of GENERAL MOTORS COMPANY

    Courtesy of GENERAL MOTORS COMPANY

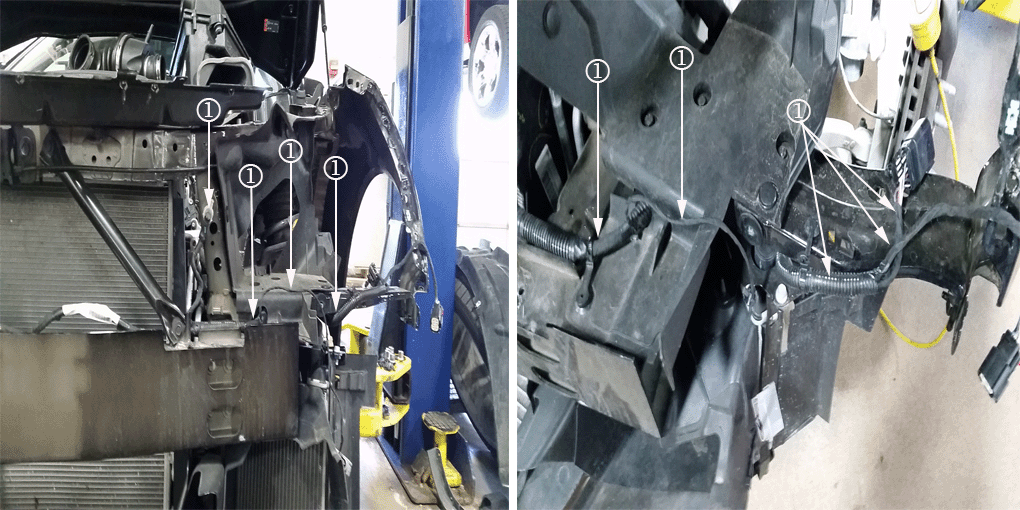

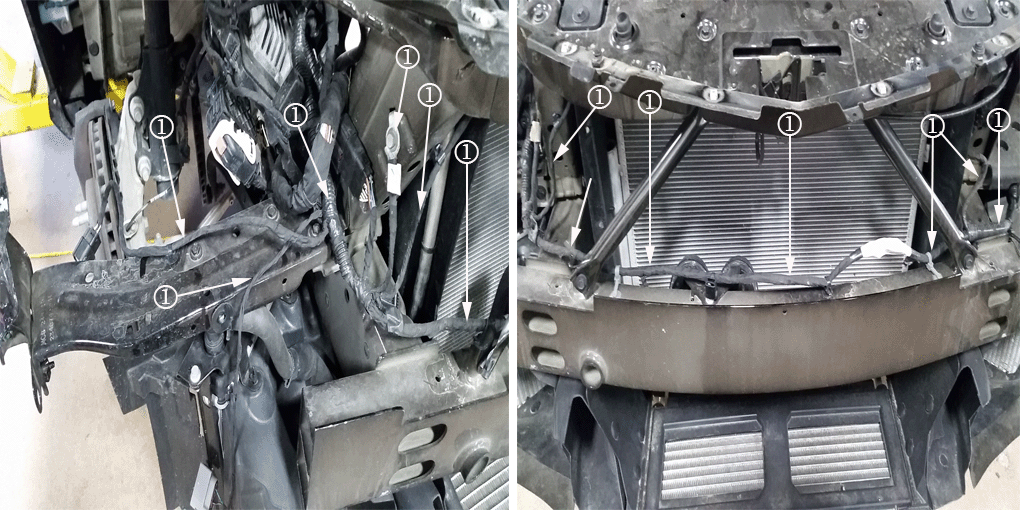

    CAUTION:

    Note the routing of the forward lamp harness prior to removing it. Harness chafing and/or damage could occur if the forward lamp harness is routed improperly when reinstalling.

14. Remove the forward lamp harness (1).
    CAUTION:

    Route the forward lamp harness in the exact same location as noted prior to removing it. Harness chafing and/or damage could occur if the forward lamp harness is routed improperly.

15. Install the new forward lamp harness.

    Courtesy of GENERAL MOTORS COMPANY

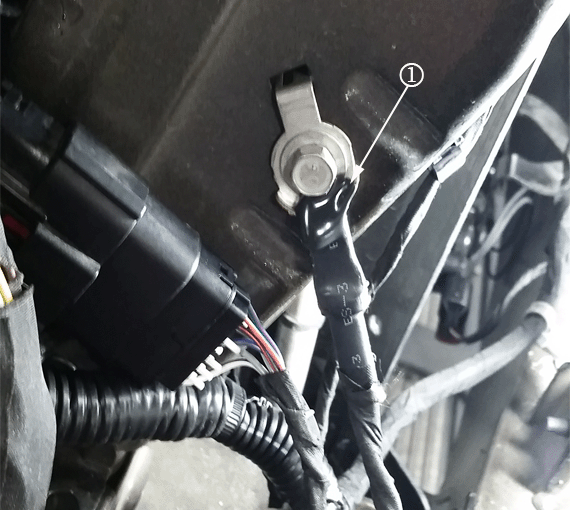

    G102 is shown. G101 is similar.

16. Apply adhesive (1) to the G101 and G102 ground cables making sure to completely coat the end of the cable.

    Courtesy of GENERAL MOTORS COMPANY

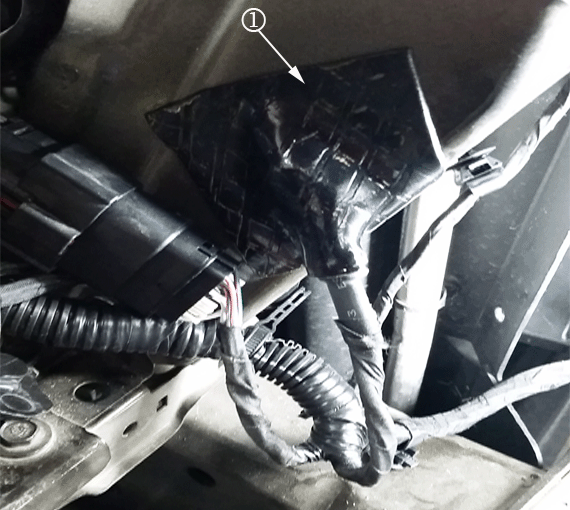

    G102 is shown. G101 is similar.

17. Apply a 6 x 6 cm (2.5 x 2.5 in) square patch of deadener (1) over top of the G101 and G102 connections.
18. Install the driver side front fender front brace. Refer to Front Fender Front Brace Replacement   in SI.
19. Install both intake air baffles. Refer to Intake Air Baffle Replacement  in SI.
20. Install both front headlamp assemblies. Refer to Headlamp Replacement (HID)   or Headlamp Replacement (Halogen)   in SI.
21. Depending on vehicle content, perform one of the following:
    • If the vehicle is equipped a LGX engine with RPO Y4Q or a LTG engine, replace the engine coolant fan. Refer to Engine Coolant Fan Replacement (LTG without V18), Engine Coolant Fan Replacement (LTG with V18), Engine Coolant Fan Replacement (LGX With V03),  orEngine Coolant Fan Replacement (LGX Without V03)  in SI.

      Courtesy of GENERAL MOTORS COMPANY

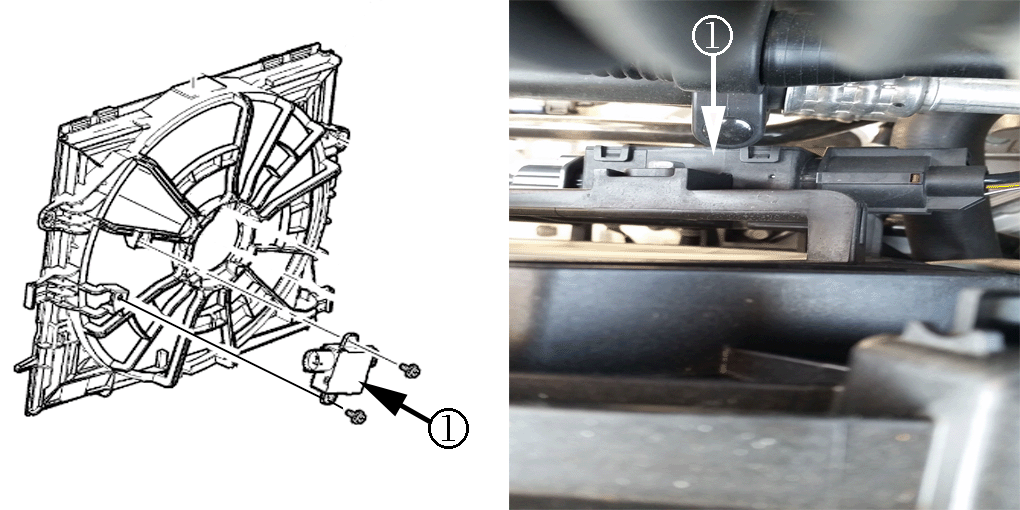

    • If the vehicle is equipped a LGX engine WITHOUT RPO Y4Q, replace the fan control module (1).
22. Apply dielectric lubricant to the fan control module or engine coolant fan connector and forward lamp harness connector at the fan control module or engine coolant fan connection and secure the connector.
23. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement   in SI.
24. Install the radiator air upper baffle and deflector. Refer to Radiator Air Upper Baffle and Deflector Replacement (LGX)   or Radiator Air Upper Baffle and Deflector Replacement (LTG)  in SI.
25. Install the air cleaner outlet duct and air cleaner assembly. Refer to Air Cleaner Assembly Replacement  in SI.

    Courtesy of GENERAL MOTORS COMPANY

26. Install the forward lamp harness connector (1) into the engine wiring harness junction block bracket.

    Courtesy of GENERAL MOTORS COMPANY

27. Install the engine wiring harness junction block (1) to the bracket. Slide the locking bar rearward to lock the engine wiring harness junction block to the bracket.

    Courtesy of GENERAL MOTORS COMPANY

28. Connect the forward lamp wiring harness cable (1) and tighten the nut to 9 Nm (80 lb in).
29. Install the covers to the engine wiring harness junction block.
30. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection   in SI.

DEALER RESPONSIBILITY

All new, used, GM Certified Used, courtesy transportation vehicles, dealer shuttle vehicles, etc. in dealers' possession and subject to this recall must  be held and inspected/repaired per the service procedure of this bulletin before  customers take possession of these vehicles. Involved vehicles must be held and not delivered to customers, dealer-traded, released to auction, used for demonstration, or any other purpose.

All GM Certified Used vehicles currently in the dealers' inventory within the Certified Pre-Owned Inventory System (CPOIS) will be de-certified and must be held and remedied per the service procedure in this bulletin. Upon submitting an accepted/paid warranty transaction in the Global Warranty Management (GWM) system, the vehicle can be re-certified for sale within the CPOIS system, or once again be used in the CTP program.

Dealers are to service all vehicles subject to this program at no charge to customers, regardless of mileage, age of vehicle, or ownership, through August 31, 2018. Customers who have recently purchased vehicles sold from your vehicle inventory, and for which there is no customer information indicated on the involved vehicle listing, are to be contacted by the dealer. Arrangements are to be made to make the required correction according to the instructions contained in this bulletin. A copy of the customer letter is provided in this bulletin for your use in contacting customers. Program follow-up cards should not be used for this purpose, since the customer may not as yet have received the notification letter.

In summary, whenever a vehicle subject to this program enters your vehicle inventory, or is in your facility for service through August 31, 2018, you must take the steps necessary to be sure the program correction has been made before selling or releasing the vehicle.

DEALER REPORTS

For dealers with involved vehicles, a listing with involved vehicles has been prepared and will be provided to U.S. and Canadian dealers through the GM GlobalConnect Recall Reports, or sent directly to export dealers. The listing may contain customer names and addresses obtained from Motor Vehicle Registration Records. The use of such motor vehicle registration data for any purpose other than follow-up necessary to complete this recall is a violation of law in several states/provinces/countries. Accordingly, you are urged to limit the use of this report to the follow-up necessary to complete this recall.

COURTESY TRANSPORTATION - FOR USA & CANADA

Courtesy transportation is available for customers whose vehicles are involved in a product program and still within the warranty coverage period. See General Motors Service Policies and Procedures Manual, Section 6.1.10 - Courtesy Transportation, for details.

CUSTOMER NOTIFICATION

USA & Canada - General Motors will notify customers of this program on their vehicle (see copy of customer letter included with this bulletin).

Export - Letters will be sent to known owners of record located within areas covered by the US National Traffic and Motor Vehicle Safety Act. For owners outside these areas, dealers should notify customers using the attached sample letter.
