Engine Oil Pressure Sensor Replacement

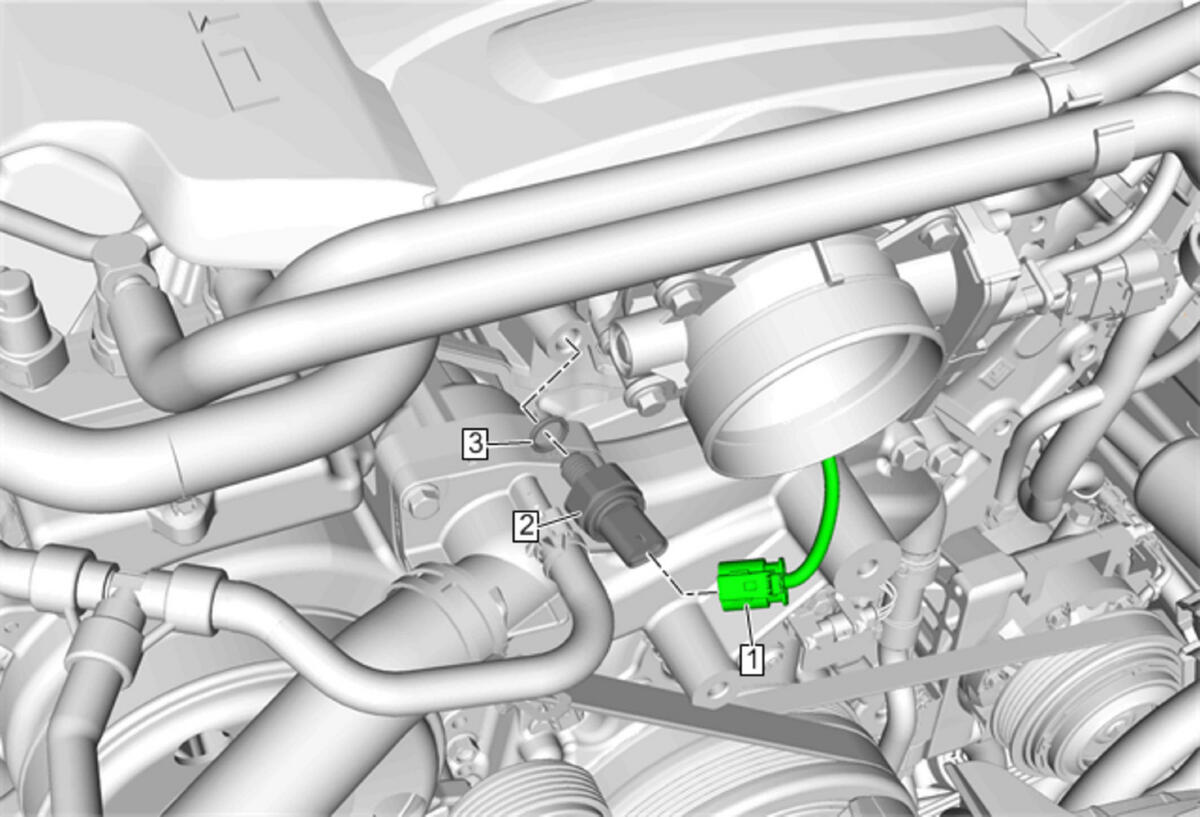

Fig 1: Engine Oil Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Throttle Body Assembly Replacement
1	Electrical Connector
2	Engine Oil Pressure Sensor CAUTION: Refer to Component Fastener Tightening Caution . Tighten  35 N.m (26 lb ft)
3	O-Ring Procedure  Install a NEW O-ring seal.
