GMLAN Communication Wake Up and Enable

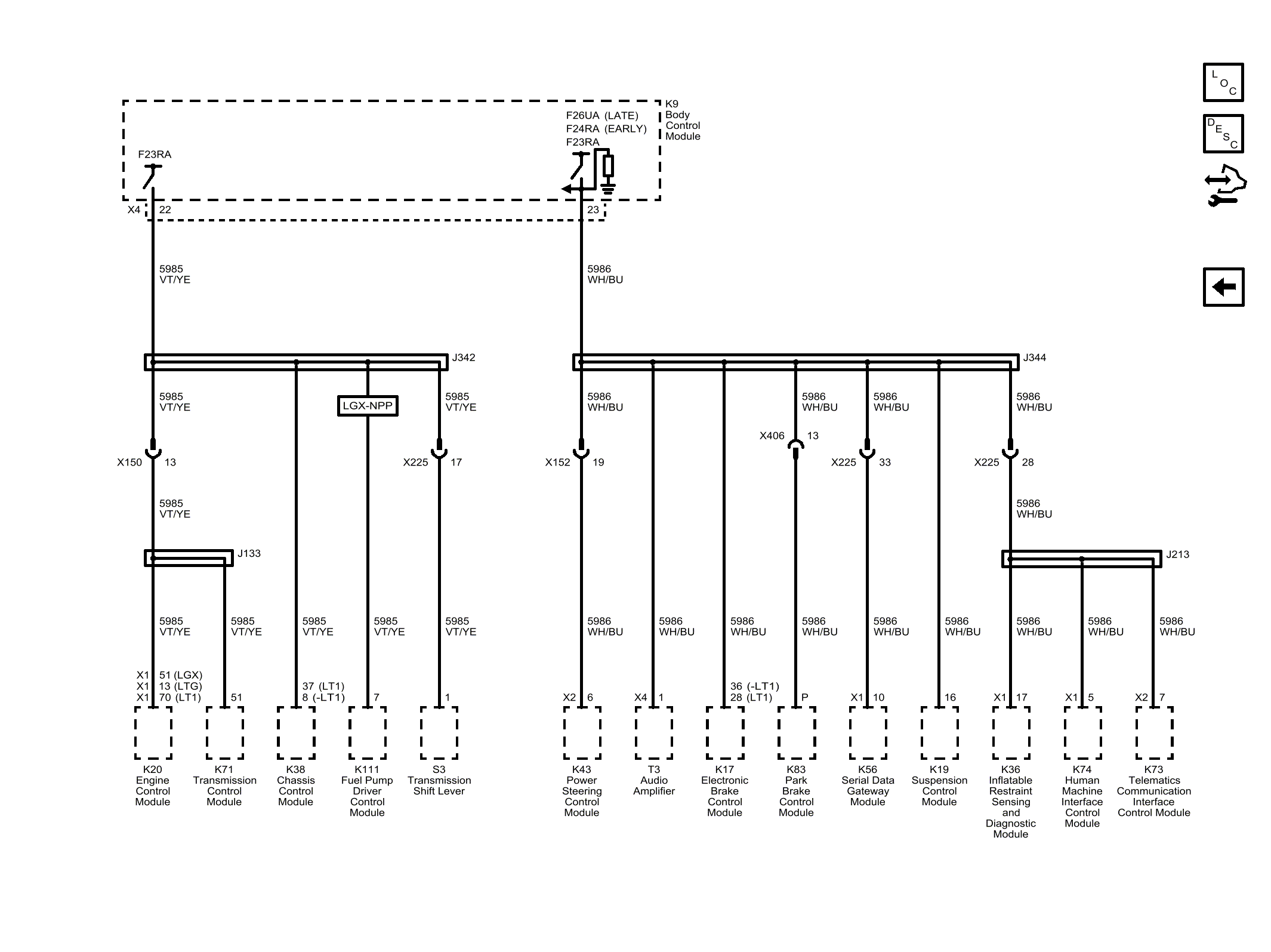

Fig 1: GMLAN Communication Wake Up and Enable

GM4232409

Courtesy of GENERAL MOTORS COMPANY
