Fuel Feed Intermediate Pipe Replacement - Position 1

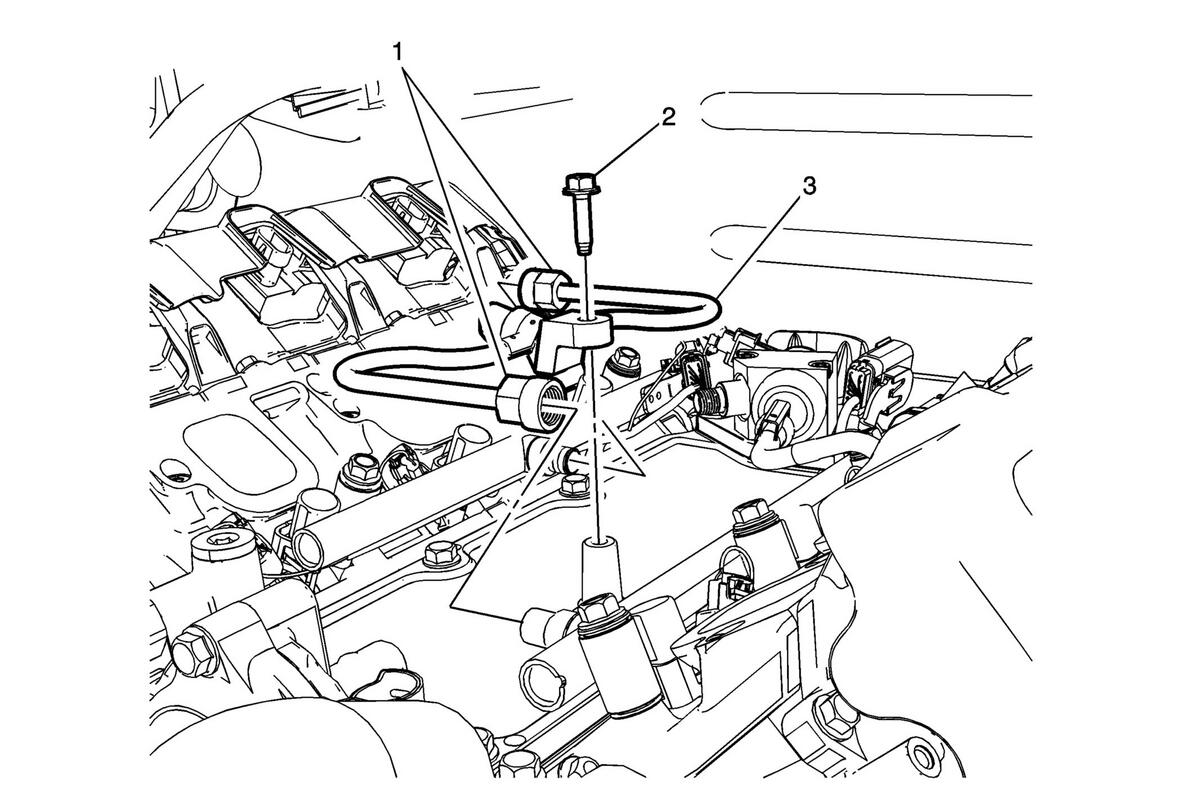

Fig 1: Fuel Feed Intermediate Pipe - Position 1
GM3255972Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Fuel Pressure Relief
  2. Fuel Pump Insulator Replacement
  3. Fuel Feed Intermediate Pipe Replacement - Position 2
1 Fuel Feed Intermediate Pipe Fitting (Qty: 2)
CAUTION:

Refer to Component Fastener Tightening Caution .


Tighten
28 N.m (21 lb ft)
2 Fuel Feed Intermediate Pipe Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
3 Fuel Feed Intermediate Pipe Position 1

Procedure

  1. DISCARD the old fuel feed pipe and install a NEW fuel feed pipe.
  2. Ensure that the high pressure fuel pipe, and fuel rail fittings are clean and dry prior to assembly.
  3. Pressure up the fuel system and check for leaks.
