Installation Procedure

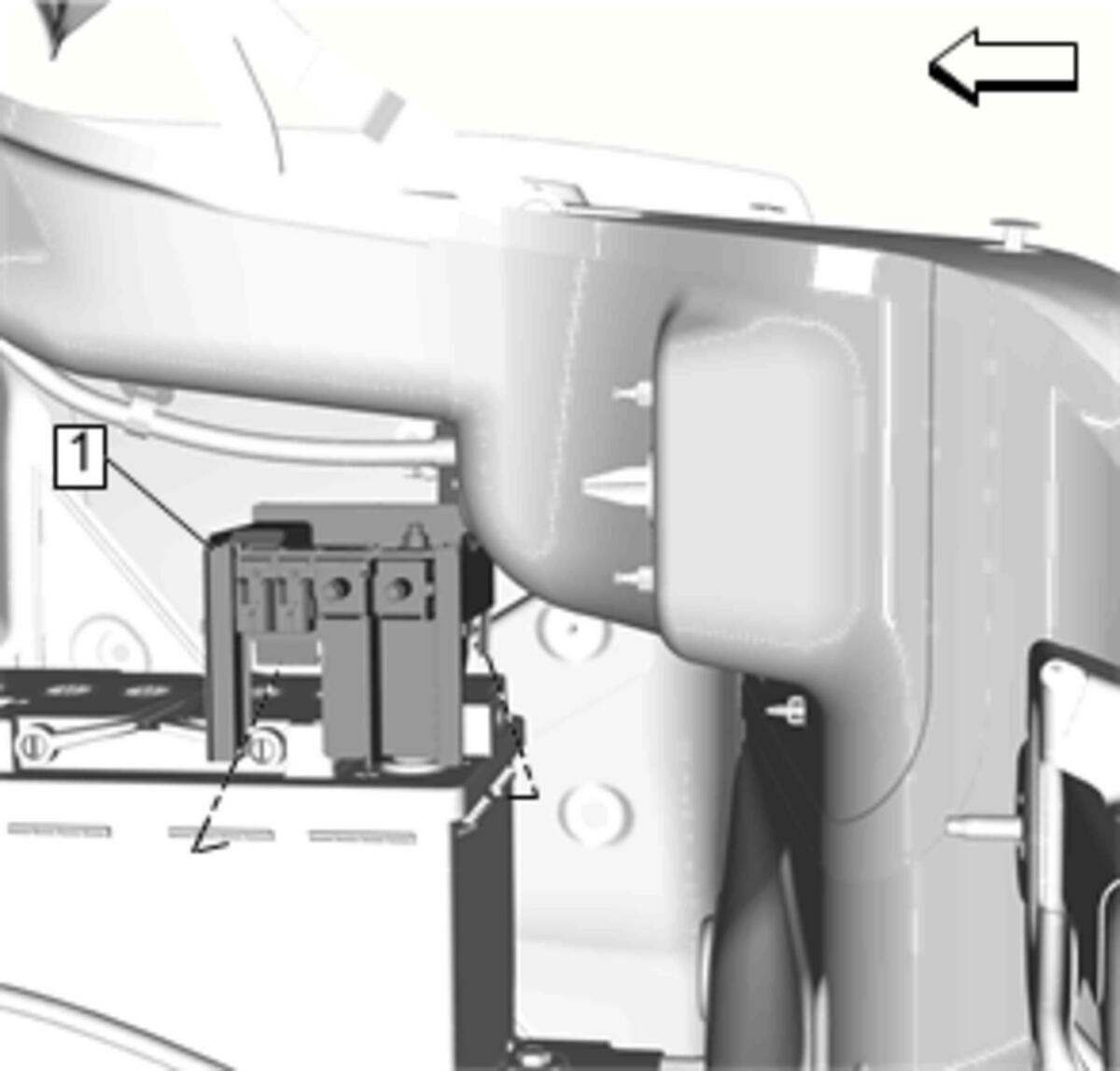

    Fig 1: Rear Body Fuse Block
    GM4194538Courtesy of GENERAL MOTORS COMPANY
  1. Install Rear Body Fuse Block (1).

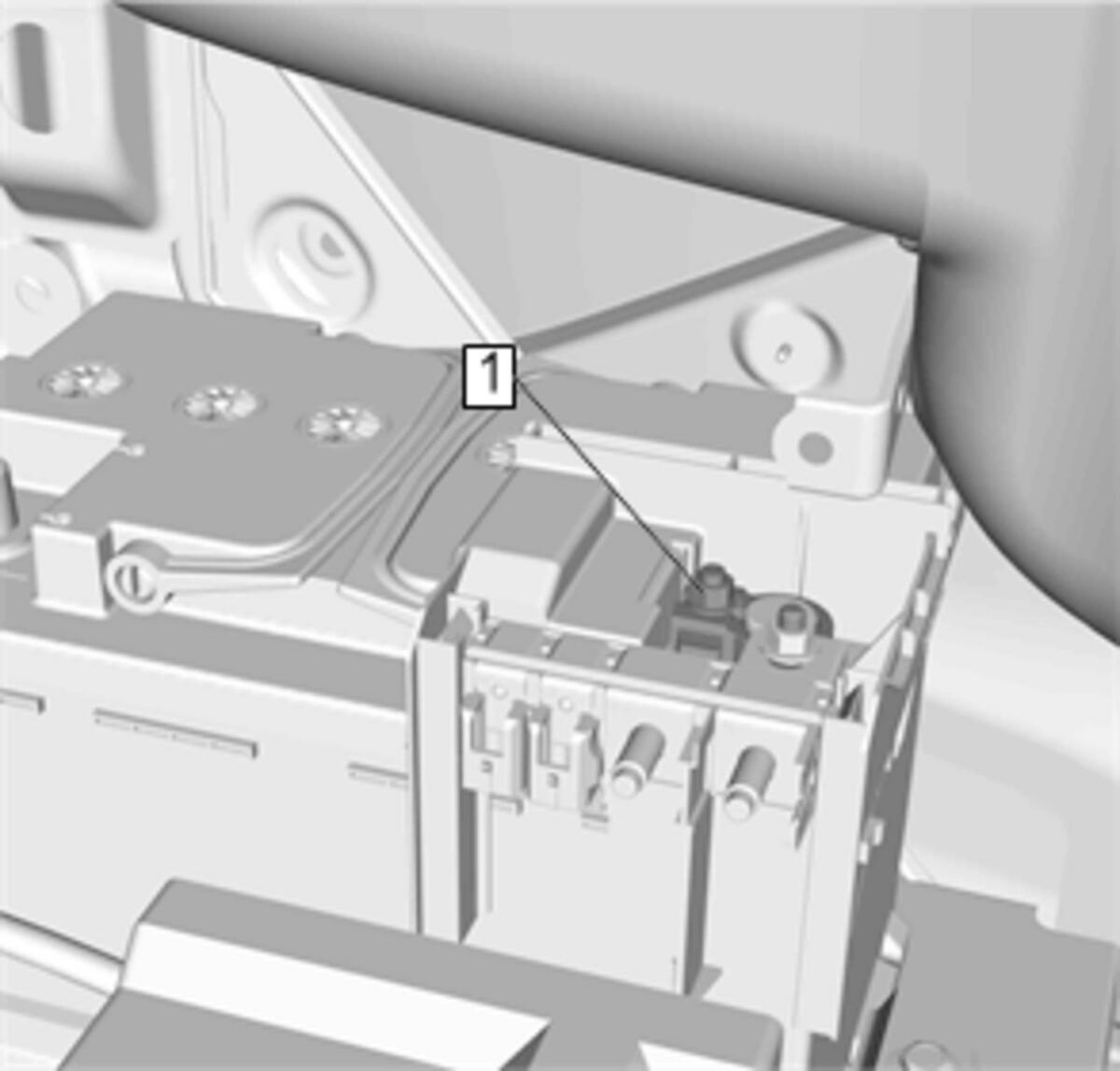

    2. Fig 2: Battery Terminal Clamp Nut
    GM4194536Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install and tighten Battery Terminal Clamp Nut (1) to 7 N.m (62 lb in).

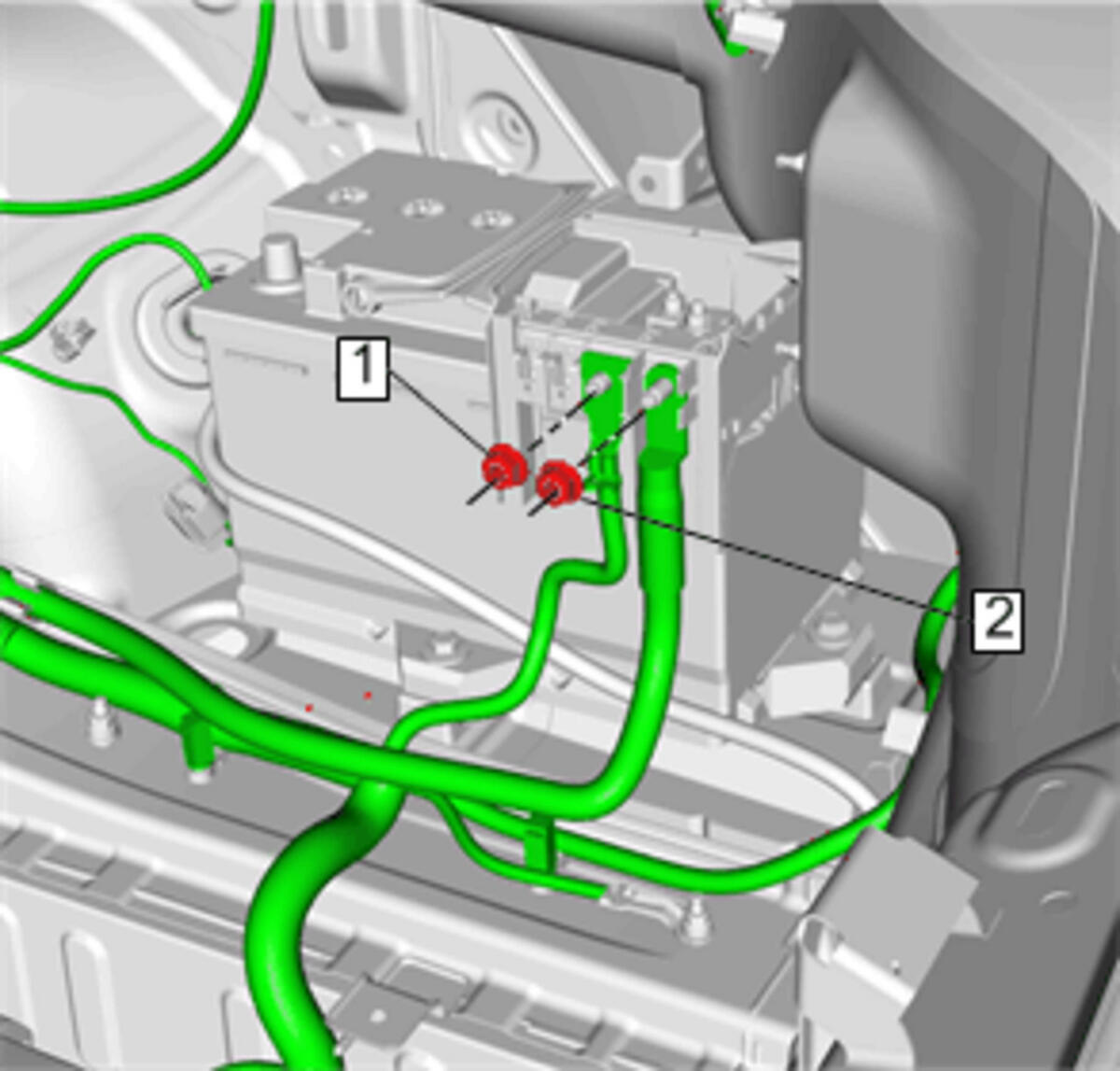

    3. Fig 3: Body Wiring Harness Terminal Nut
    GM4194535Courtesy of GENERAL MOTORS COMPANY
  3. Install and tighten Body Wiring Harness Terminal Nut (1) to 12 N.m (106 lb in).
  4. Install and tighten Battery Positive Cable Extension Cable Nut (2) to 12 N.m (106 lb in).

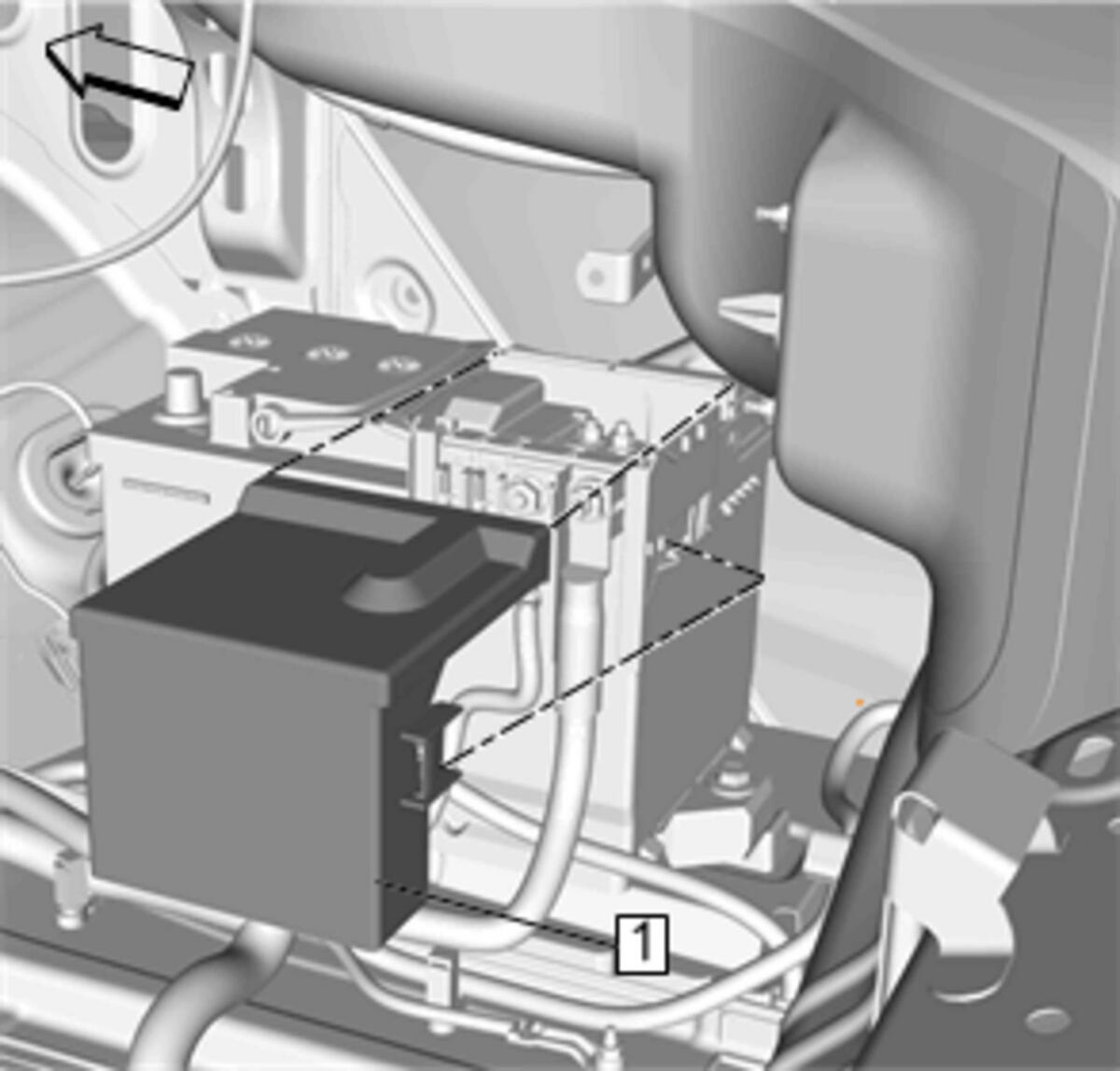

    5. Fig 4: Rear Body Fuse Block Cover
    GM4194533Courtesy of GENERAL MOTORS COMPANY
  5. Install Rear Body Fuse Block Cover (1).
  6. Battery Negative Cable Disconnection and Connection
  7. Rear Compartment Side Trim Replacement - Right Side (Coupe)Rear Compartment Side Trim Replacement - Right Side (Convertible)
