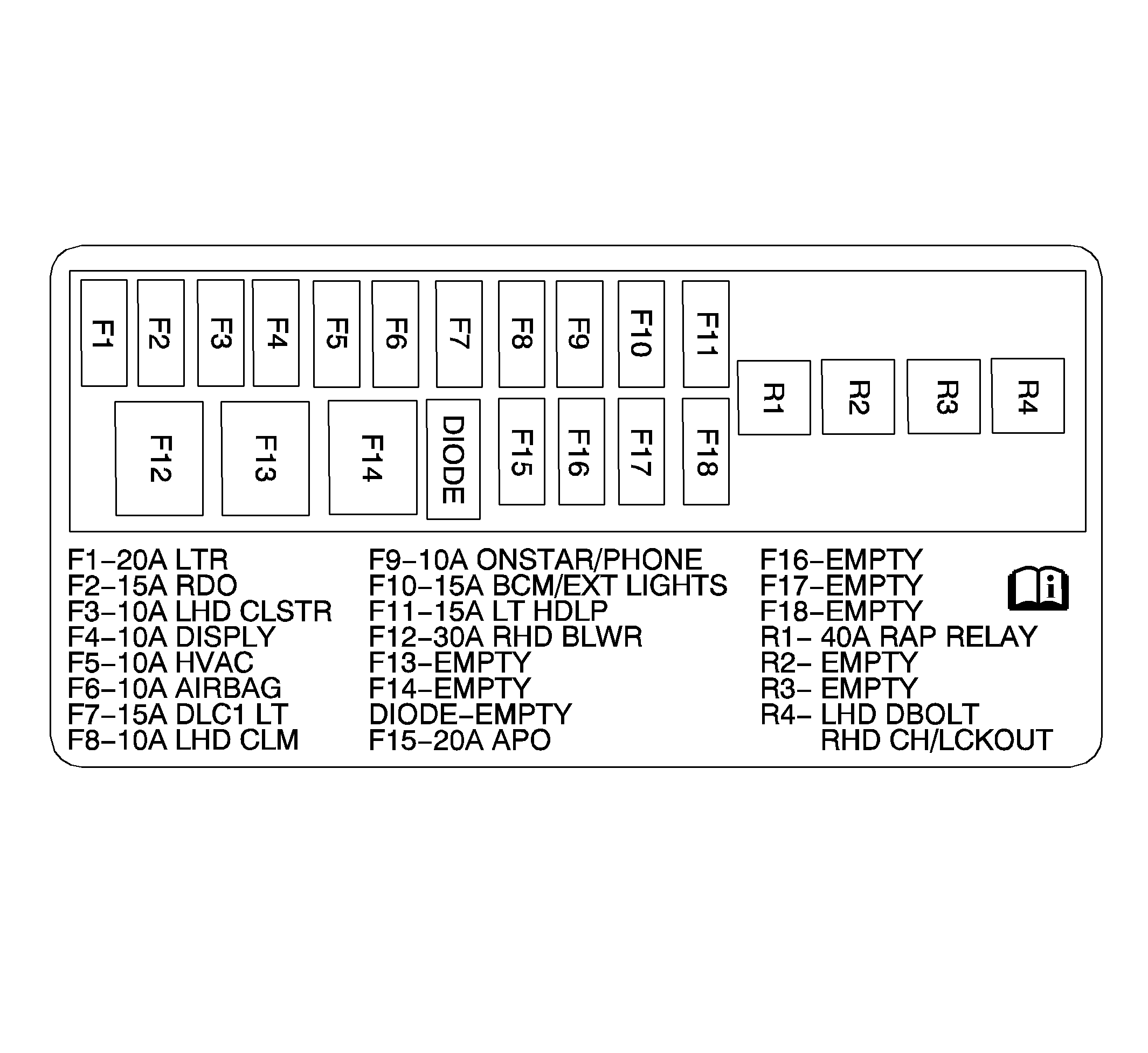

X51L Fuse Block - Instrument Panel Left Label
X51L FUSE BLOCK- INSTRUMENT PANEL LEFT FUSE AND RELAY IDENTIFICATION LEGEND
| No. | Device Label Name | Fuse And Relay Description | Rating | Circuits |
|---|---|---|---|---|
| Fuses | ||||
| F1 | RDO | F1DL | 20A | E32 Cigarette Lighter Receptacle |
| F2 | RDO | F2DL | 15 A | A11 Radio |
| F3 | LHD CLSTR | F3DL | 10 A | P16 Instrument Cluster (LHD) |
| F4 | DISPLY | F4DL | 10 A | P17 Info Display Module |
| F5 | HVAC | F5DL | 10 A | A20 Radio/HVAC Controls, K33 HVAC Control Module |
| F6 | AIRBAG | F6DL | 10 A | K36 Inflatable Restraint Sensing and Diagnostic Module, K85 Passenger Presence Detection Module |
| F7 | DLC LT | F7DL | 15 A | X84 Data Link Connector |
| F8 | LHD CLM | F8DL | 10 A | Not Used |
| F9 | ONSTAR/PHONE | F9DL | 10 A | Handsfree Phone Module |
| F10 | BCM/EXT LIGHTS | F10DL | 15 A | K9 Body Control Module |
| F11 | LT HDLP | F11DL | 15 A | K9 Body Control Module |
| F12 | RHD BLWR | F12DL | 30 A | Blower Motor (RHD) |
| F13 | Empty | F13DL | - | Not Used |
| F14 | Empty | F14DL | - | Not Used |
| F15 | APO | F15DL | 20 A | X80H Accessory Power Receptacle - Center Console |
| F16 | Empty | F16DL | - | Not Used |
| F17 | Empty | F17DL | - | Not Used |
| F18 | Empty | F18DL | - | Not Used |
| Diodes | ||||
| DIODE | Empty | - | - | Not Used |
| Relays | ||||
| R1 | RAP RELAY | KR76 Retained Accessory Power Relay | - | F1DL, F15DL Fuses |
| R2 | Empty | - | - | Not Used |
| R3 | Empty | - | - | Not Used |
| R4 | LHD DBOLT RHD CH/LCKOUT |
- | - | Deadbolt Locks (LHD) Child Locks (RHD) |
