Ignition Controls - Ignition Coil Module

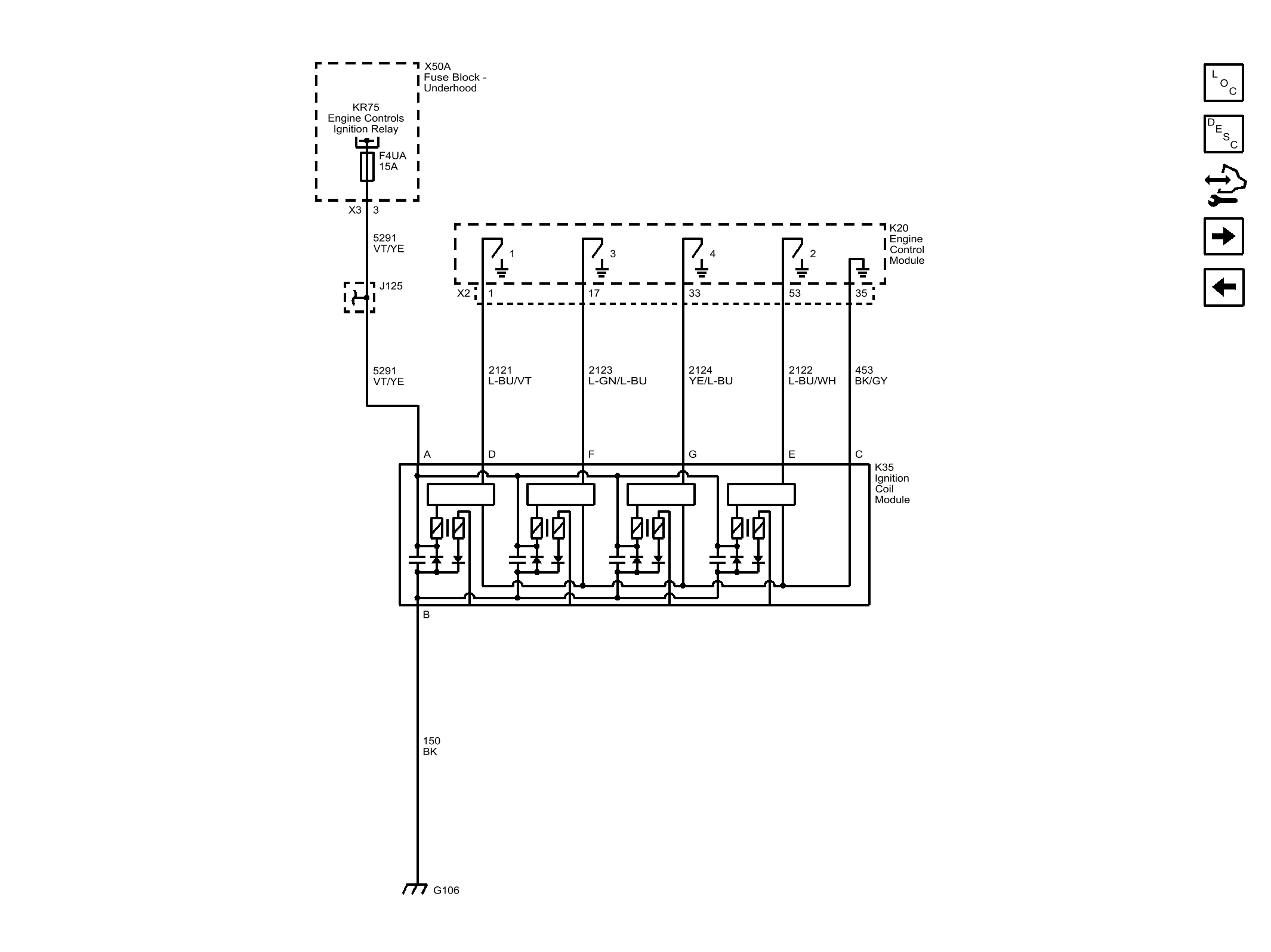

Fig 1: Ignition Controls - Ignition Coil Module

GM3745544

Courtesy of GENERAL MOTORS COMPANY
