Installation Procedure

  1. Install the evaporative emission pipe (1) to the vehicle.

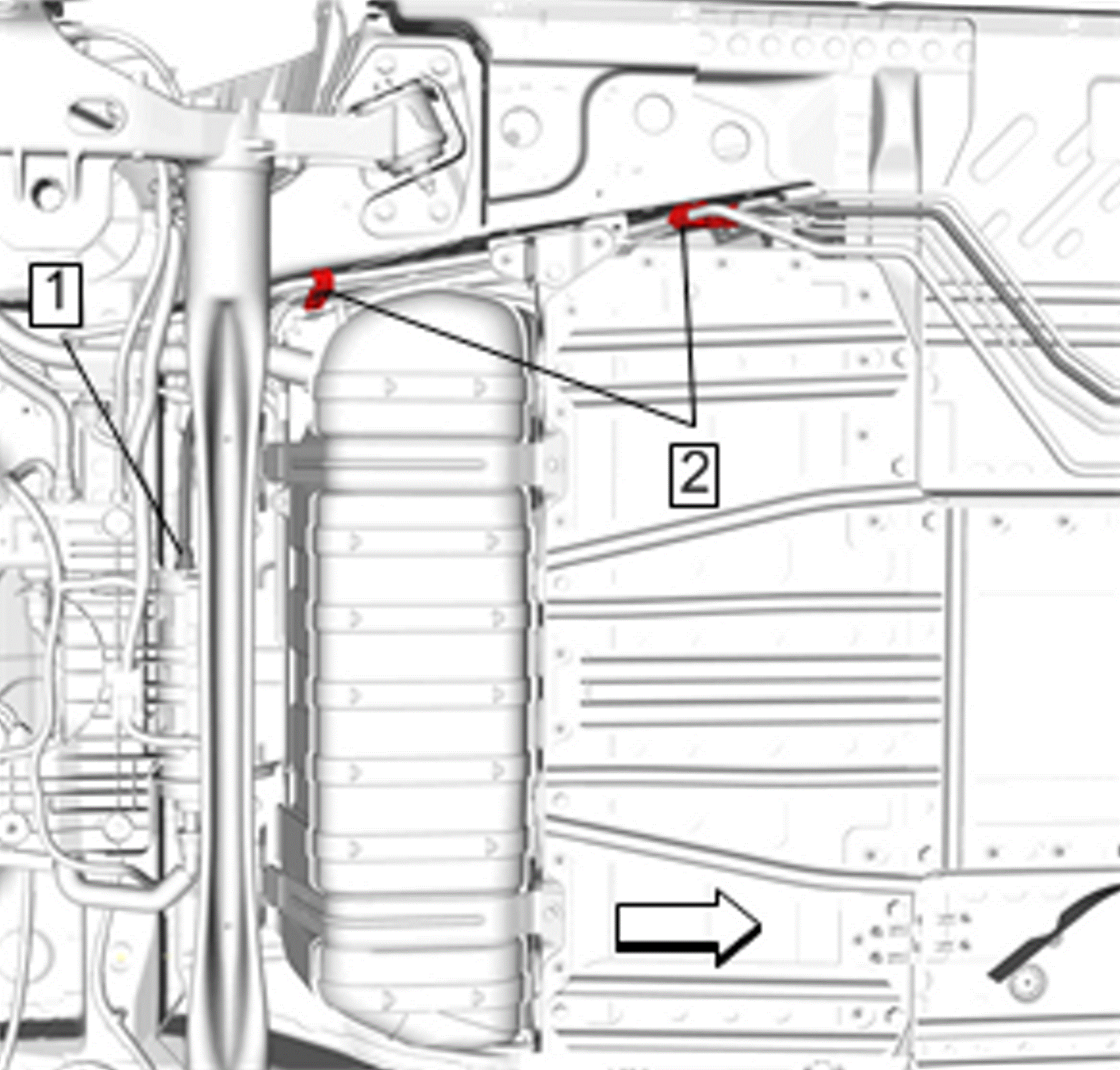

    Fig 1: Locating Plastic Clips
    GM3979477Courtesy of GENERAL MOTORS COMPANY
  2. Connect the evaporative emission pipe (1) to the evaporative emission canister. Refer to Plastic Collar Quick Connect Fitting Service .
  3. Install the evaporative emission pipe (1) to the plastic clips (2).
  4. Install the evaporative emission pipe (1) to the plastic clips (2).

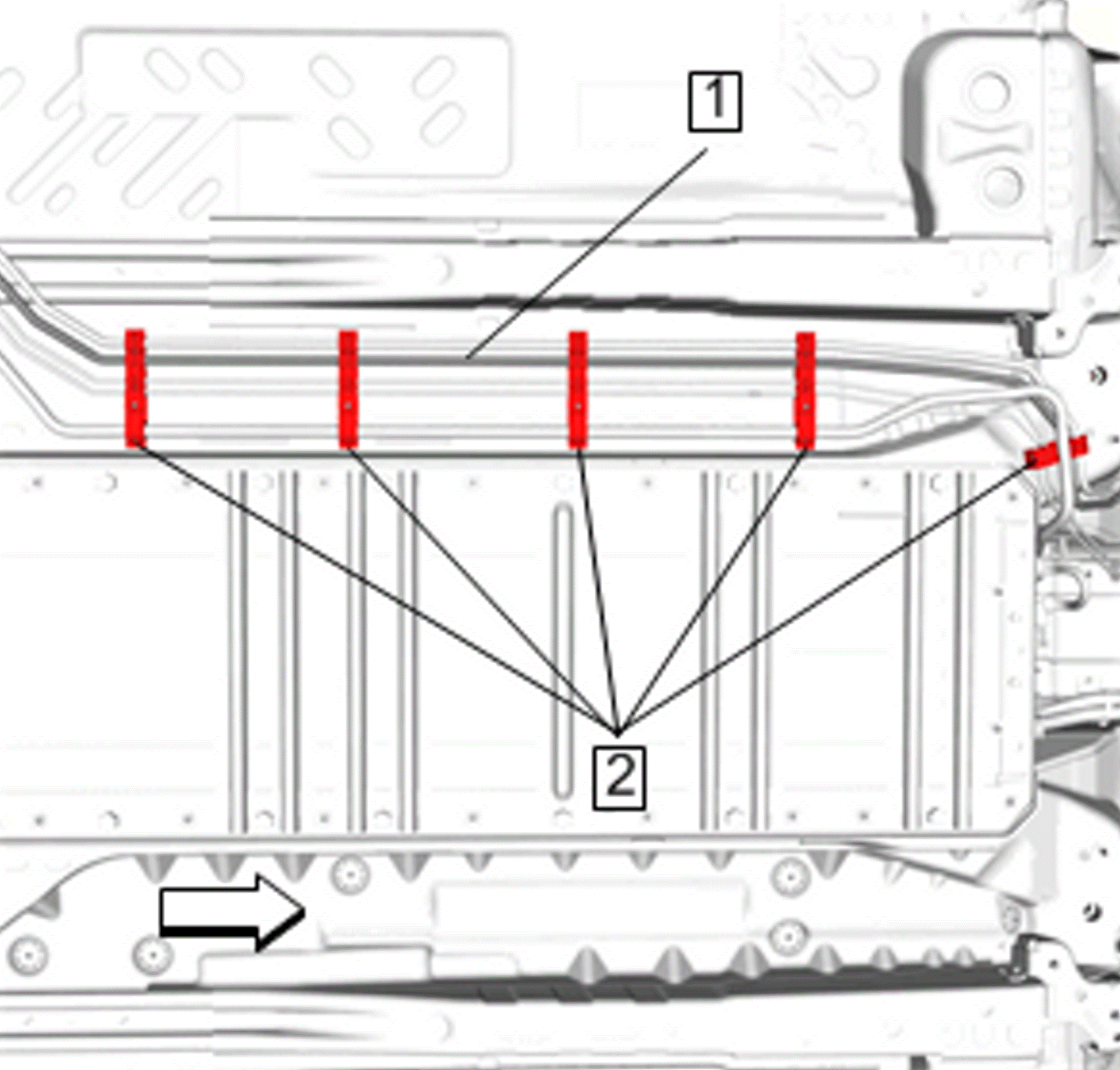

    Fig 2: Identifying Plastic Clips
    GM3979474Courtesy of GENERAL MOTORS COMPANY
  5. Install the evaporative emission pipe (1) to the engine compartment bulkhead plastic clips (2).

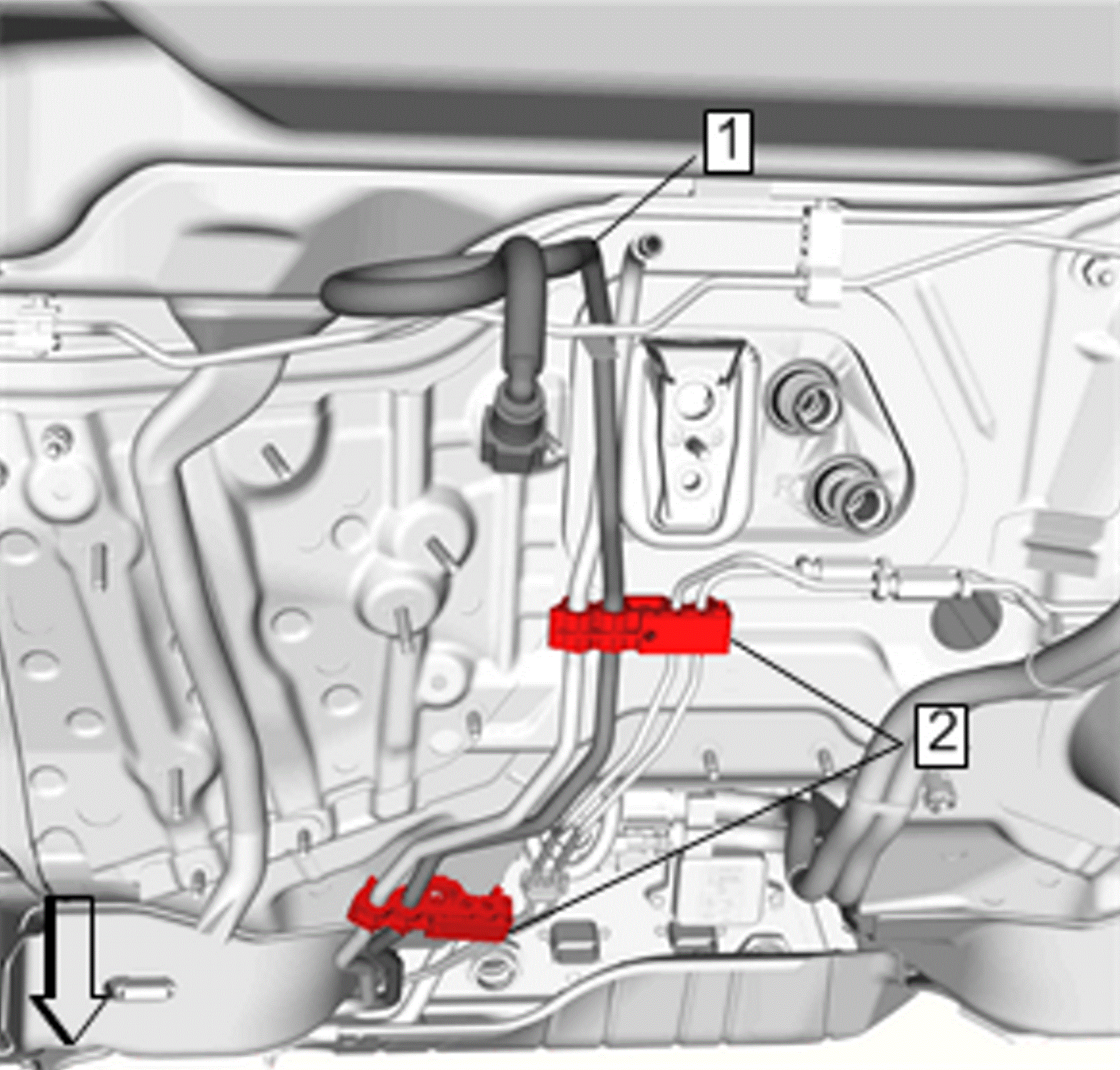

    Fig 3: Identifying Engine Compartment Bulkhead Plastic Clips
    GM3979471Courtesy of GENERAL MOTORS COMPANY
  6. Connect the evaporative emission pipe (1) to the evaporative emission canister purge solenoid valve. Refer to Plastic Collar Quick Connect Fitting Service .

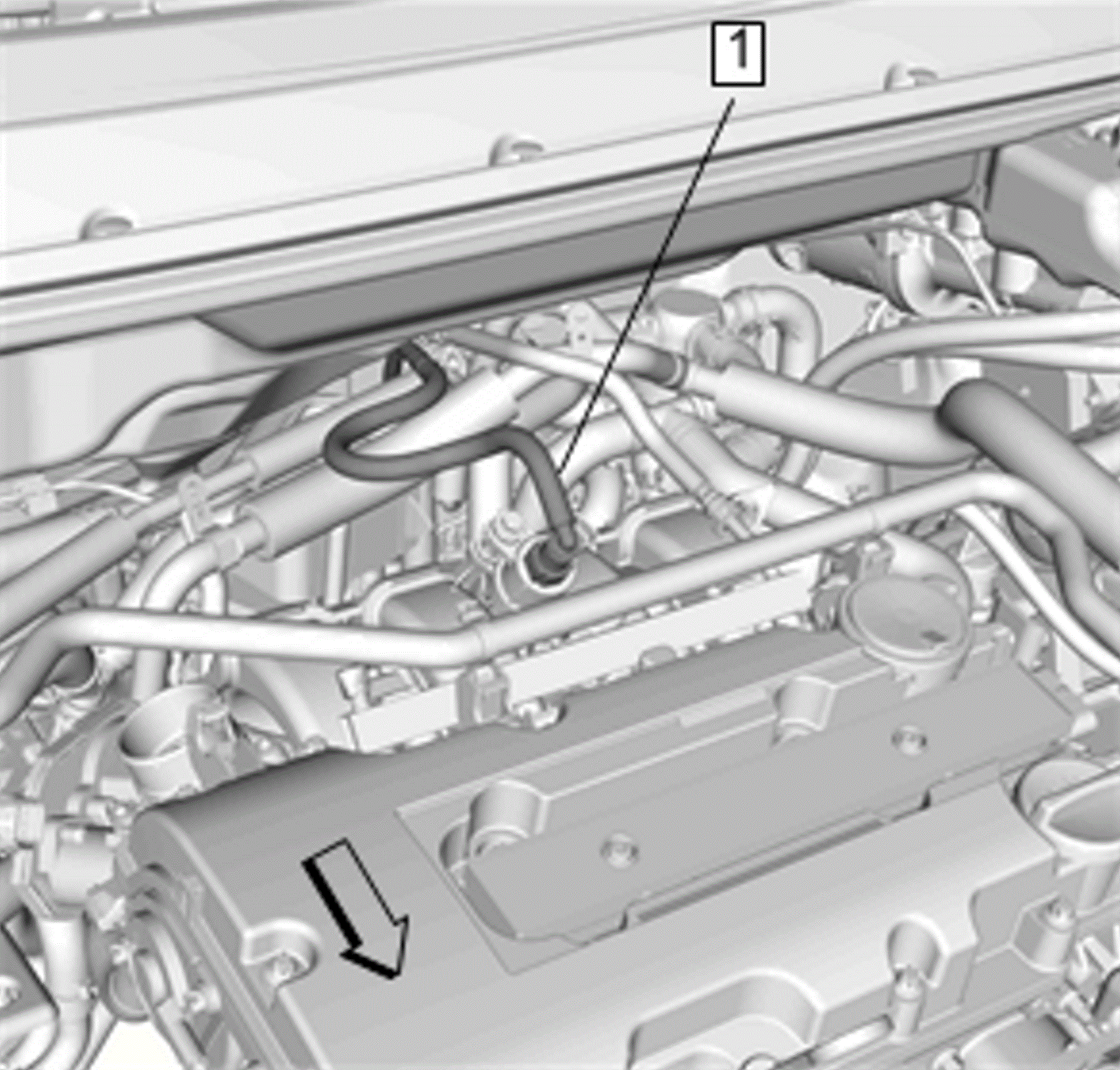

    Fig 4: Identifying Evaporative Emission Pipe
    GM3979464Courtesy of GENERAL MOTORS COMPANY
  7. Install the drivetrain and front suspension frame. Refer to Drivetrain and Front Suspension Frame Replacement (Volt) .
