Subsystem References (Trax, page 2 of 5)

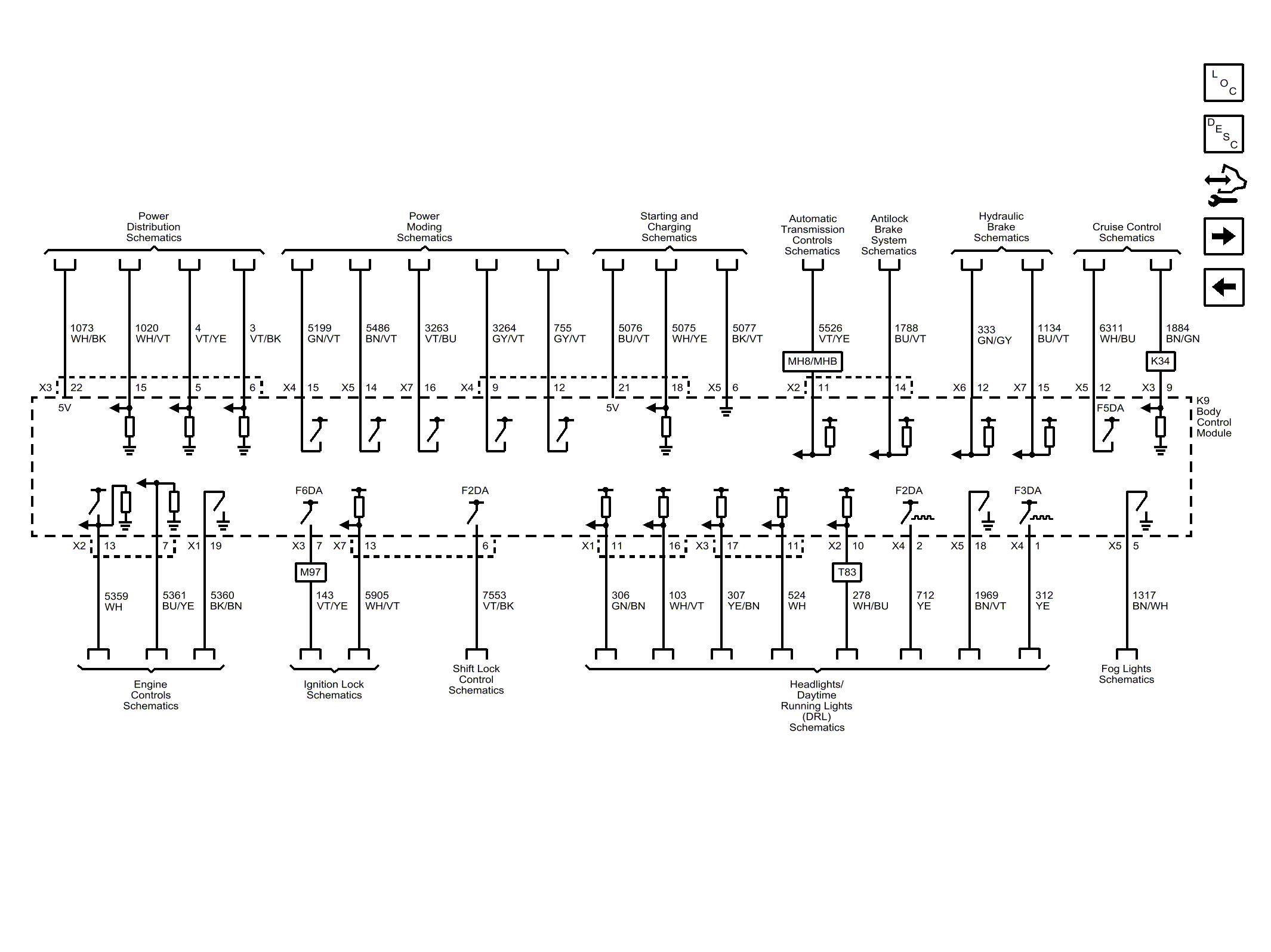

Fig 1: Subsystem References (Trax, page 2 of 5)

GM3695480

Courtesy of GENERAL MOTORS COMPANY
