Engine Oil Pressure Sensor Replacement

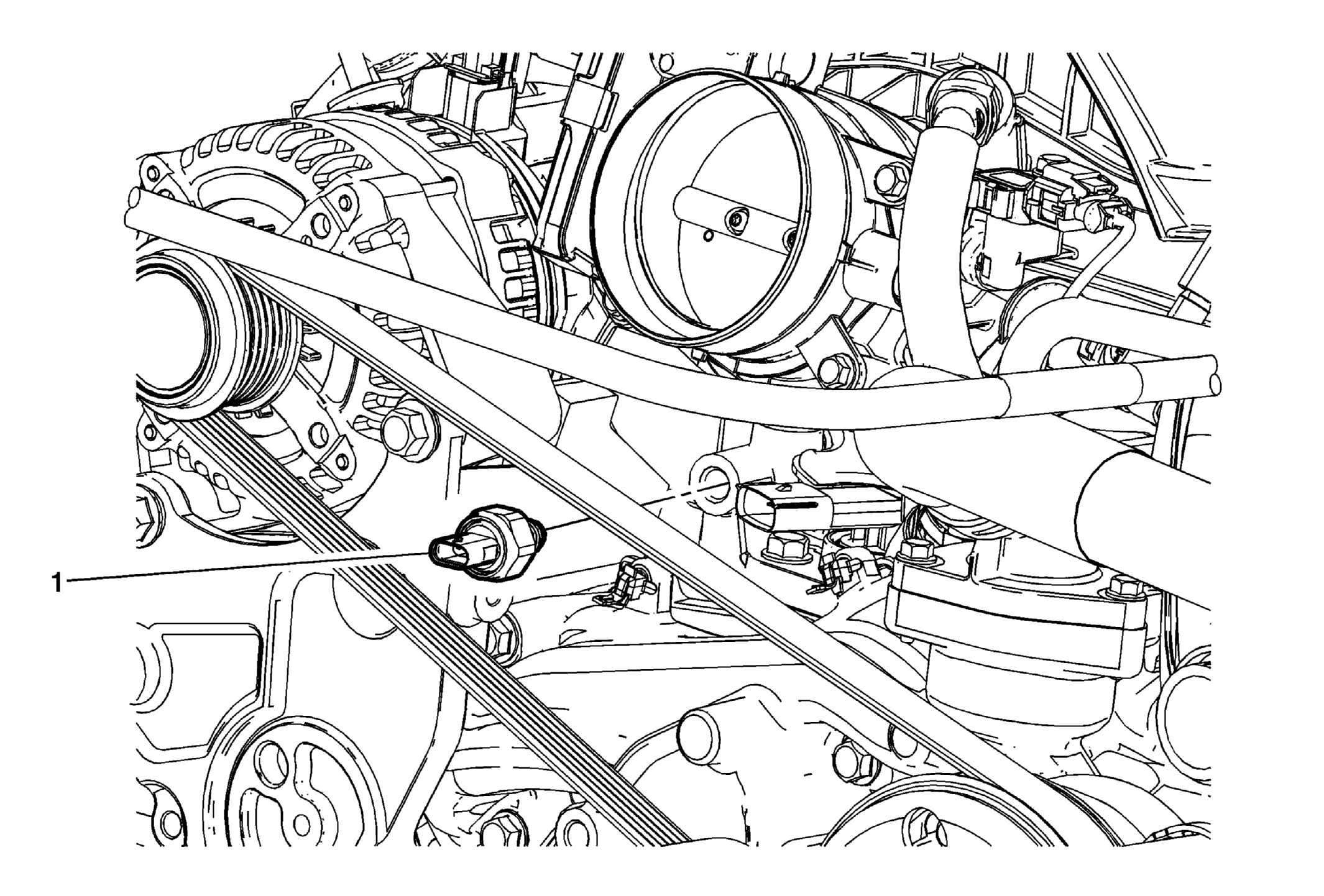

Fig 1: Engine Oil Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (Chevrolet and GMC) Air Cleaner Outlet Duct Replacement (Cadillac) .
1	Engine Oil Pressure Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure  Disconnect the engine oil pressure sensor electrical wiring harness connector. Tighten  35 N.m (26 lb ft)
