Installation Procedure

  1. Install the fuse block terminals.

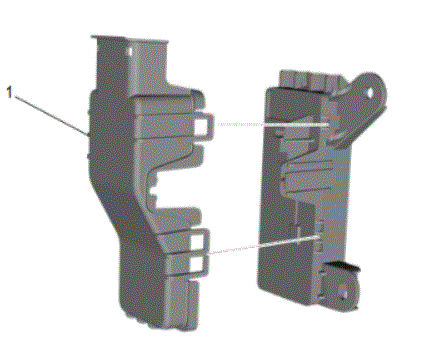

    G00667382Courtesy of GENERAL MOTORS COMPANY
  2. Rear Body Fuse Block Cover (1) - Install

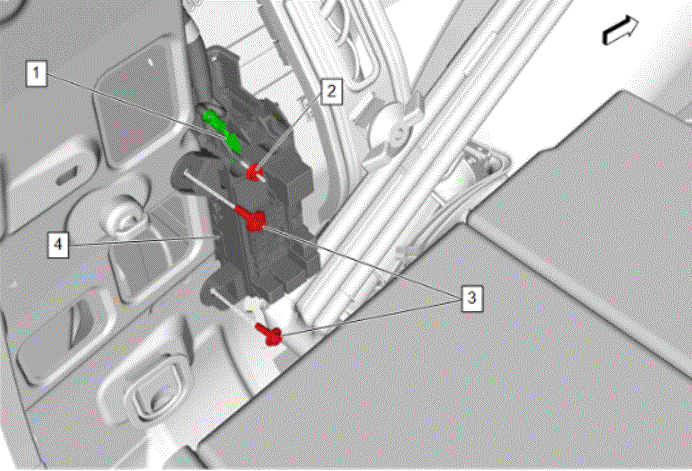

    G00667378Courtesy of GENERAL MOTORS COMPANY
  3. Rear Body Fuse Block (4) - Install
  4. Body Harness Terminal (1) - Install
  5. Rear Body Fuse Block Bolt (3) - Install and tighten [2x] 9 N.m (80 lb in)
  6. Rear Body Fuse Block Nut (2) - Install and tighten 9 N.m (80 lb in)
  7. Quarter Lower Rear Trim Panel - Install. Refer to QUARTER LOWER REAR TRIM PANEL REPLACEMENT (LEFT SIDE, STANDARD WHEELBASE) , QUARTER LOWER REAR TRIM PANEL REPLACEMENT (RIGHT SIDE, STANDARD WHEELBASE) ,QUARTER LOWER REAR TRIM PANEL REPLACEMENT (LEFT SIDE, EXTENDED WHEELBASE) , QUARTER LOWER REAR TRIM PANEL REPLACEMENT (RIGHT SIDE, EXTENDED WHEELBASE)
  8. Connect the battery negative cable. Refer toBATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION (DUAL BATTERY)BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION (SINGLE BATTERY)
