Module Power, Ground, Serial Data and MIL

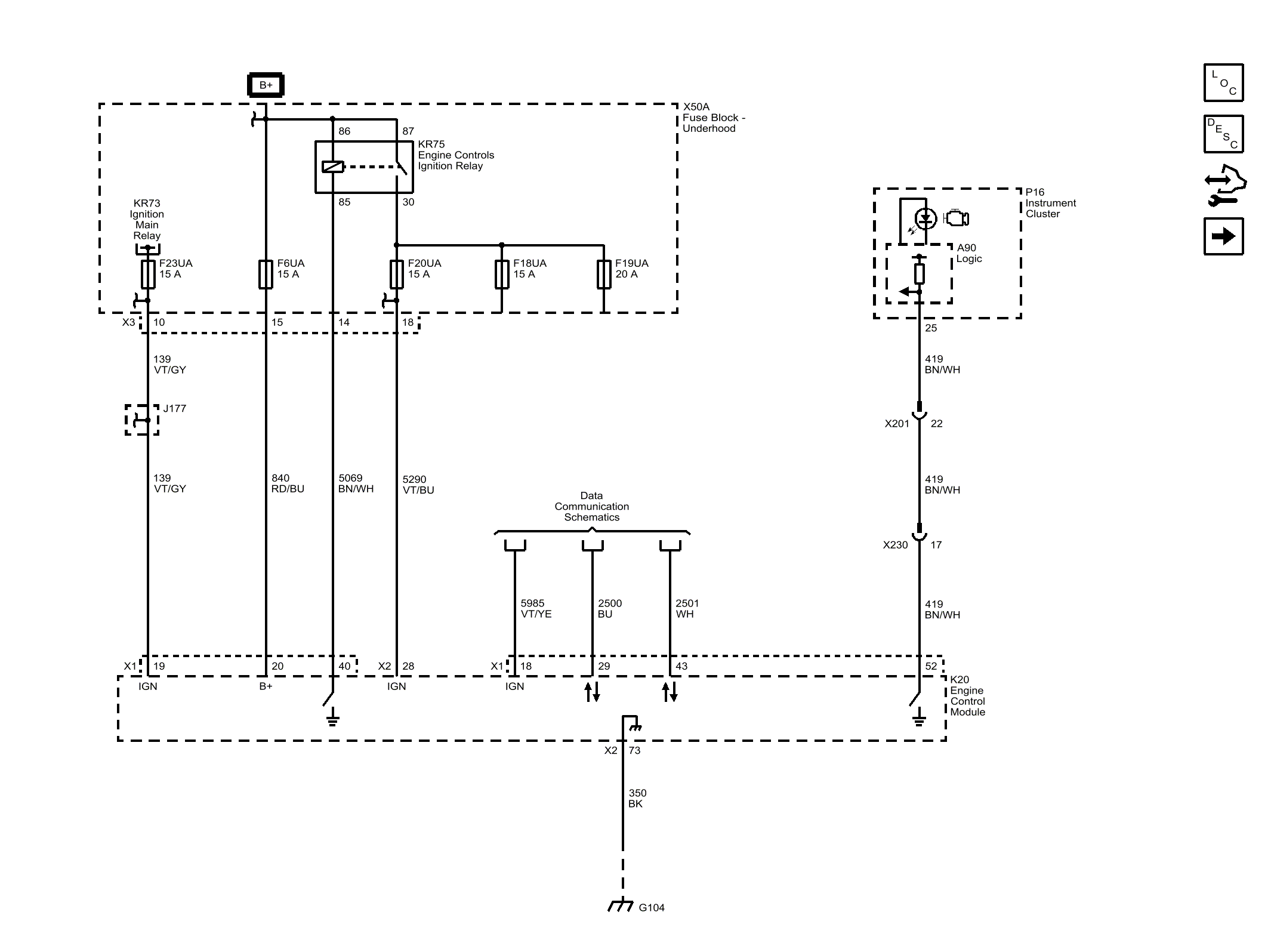

Fig 1: Module Power, Ground, Serial Data and MIL

GM3680710

Courtesy of GENERAL MOTORS COMPANY
