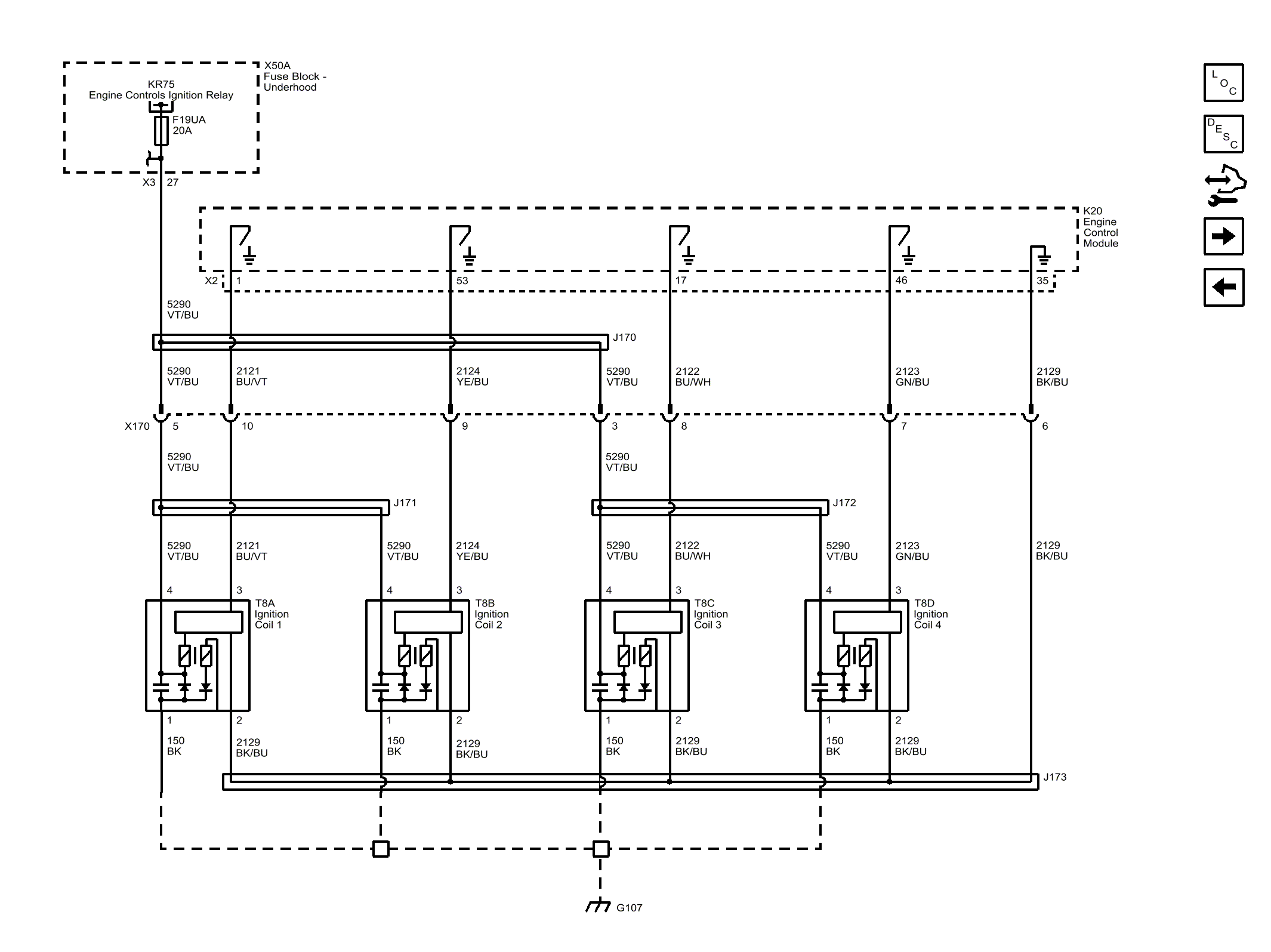

Home >> Chevrolet >> 2015 >> Spark LS, Standard Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls And Fuel - 1.2L - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Engine Controls Wiring Schematics (LFM/LL0+M4M) >> Ignition Controls - Ignition System
