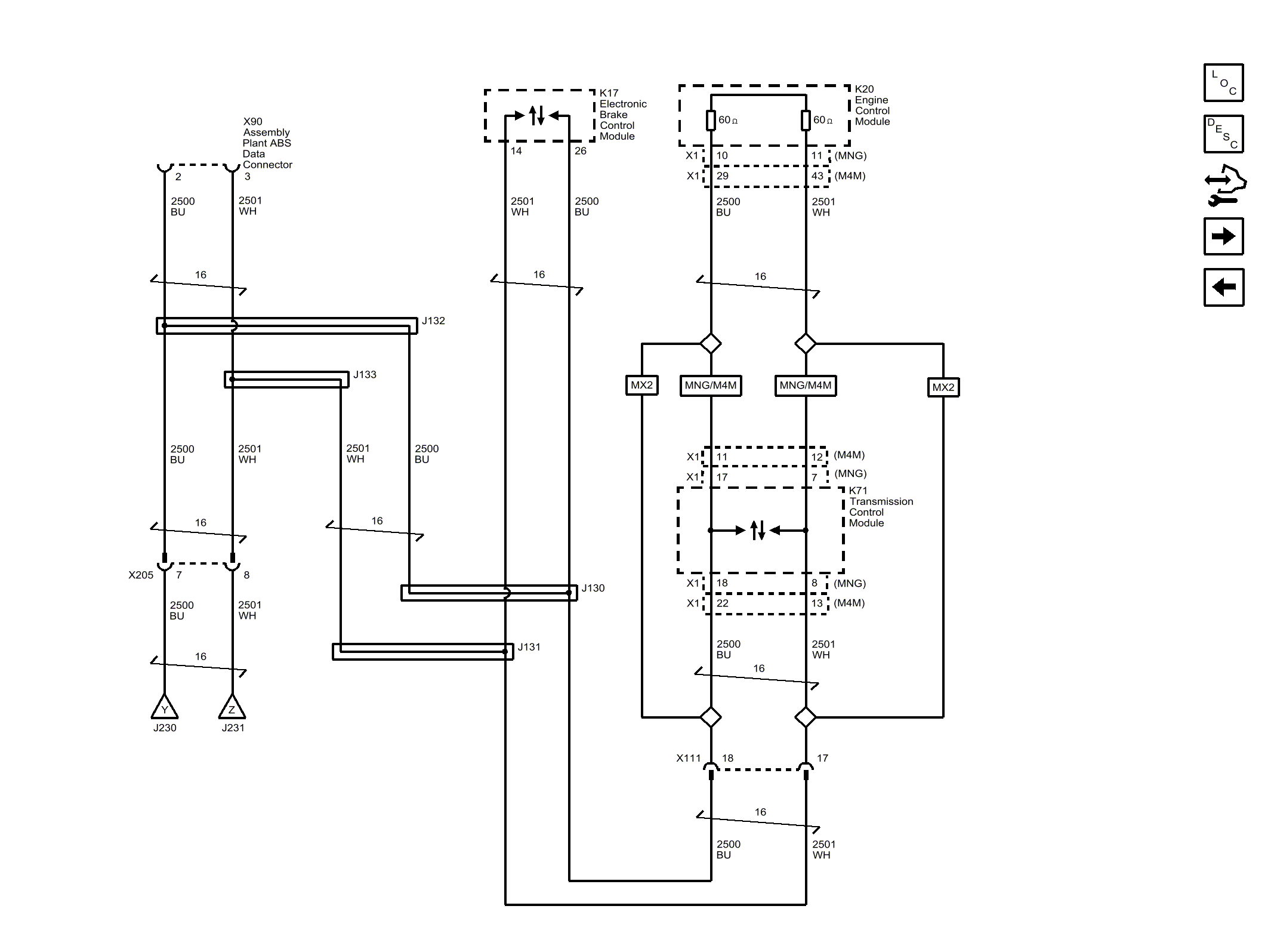

Home >> Chevrolet >> 2015 >> Spark LS, Standard Trans >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> High Speed GMLAN Bus 1 (2 of 2)
