Installation Procedure

  1. Install NEW 2 camshaft position actuator solenoid valve seal (3).
    Fig 1: Camshaft Position Actuator Solenoid Valve Bolts
    GM2810160Courtesy of GENERAL MOTORS COMPANY
    NOTE: Lubricate the NEW camshaft position actuator solenoid valve seals with NEW engine oil.
  2. Install the camshaft position actuator solenoid valves (2).
  3. Install the camshaft position actuator solenoid valve bolts (1) and tighten to 10 N.m (53 lb in).
    CAUTION: Refer to Fastener Caution .
  4. Connect the camshaft position actuator solenoid valve electrical connector.
  5. Connect the power brake booster vacuum hose (2) from the upper intake manifold. Refer to Power Brake Booster Vacuum Hose Replacement .

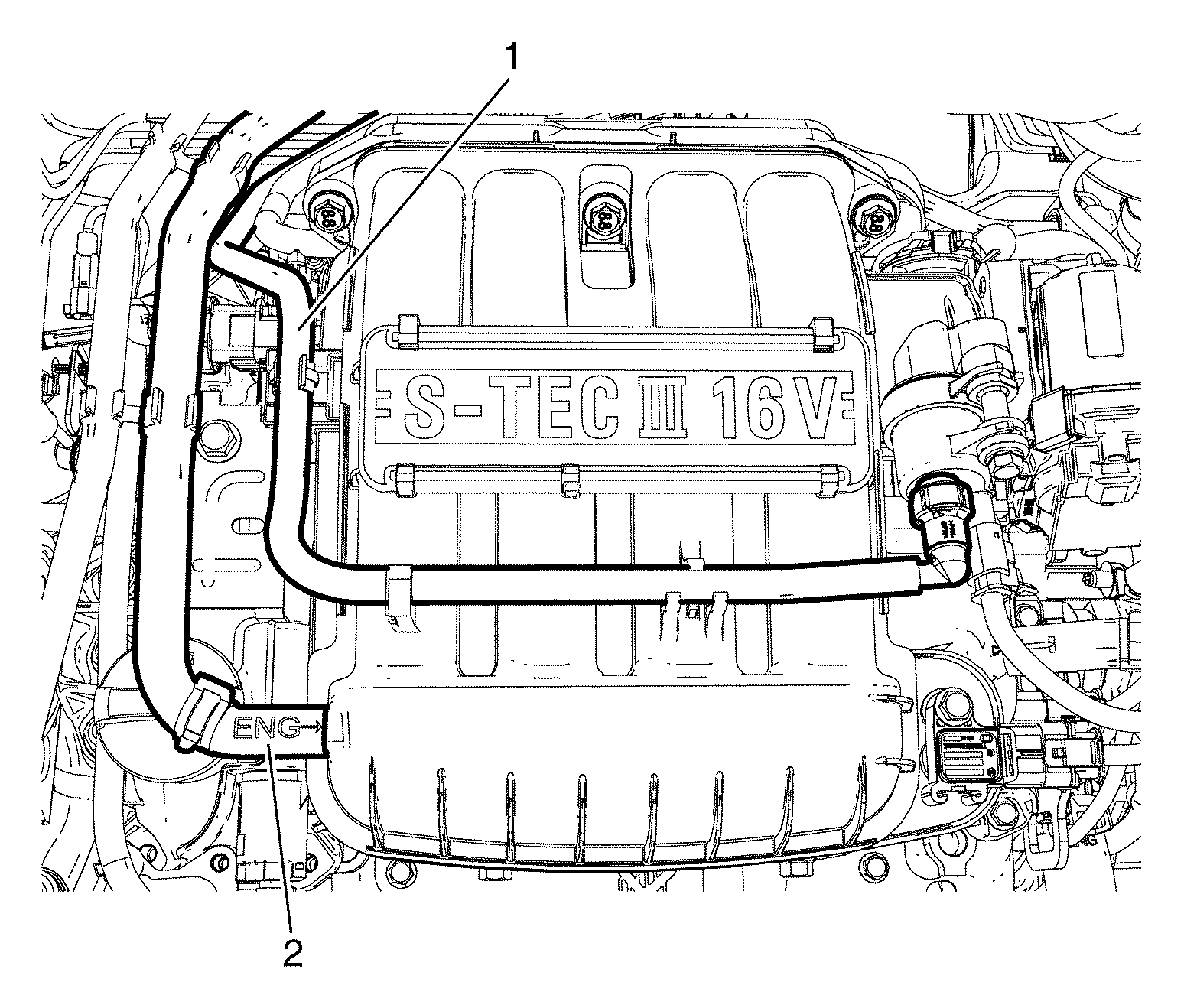

    Fig 2: Evaporative Emission Canister Purge Solenoid Valve Hose
    GM3416010Courtesy of GENERAL MOTORS COMPANY
  6. Connect the evaporative emission canister purge solenoid valve hose (1) from the upper intake manifold. Refer to Evaporative Emission Canister Purge Solenoid Valve Replacement (LFM) .
  7. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  8. Close the hood.
