Installation Procedure

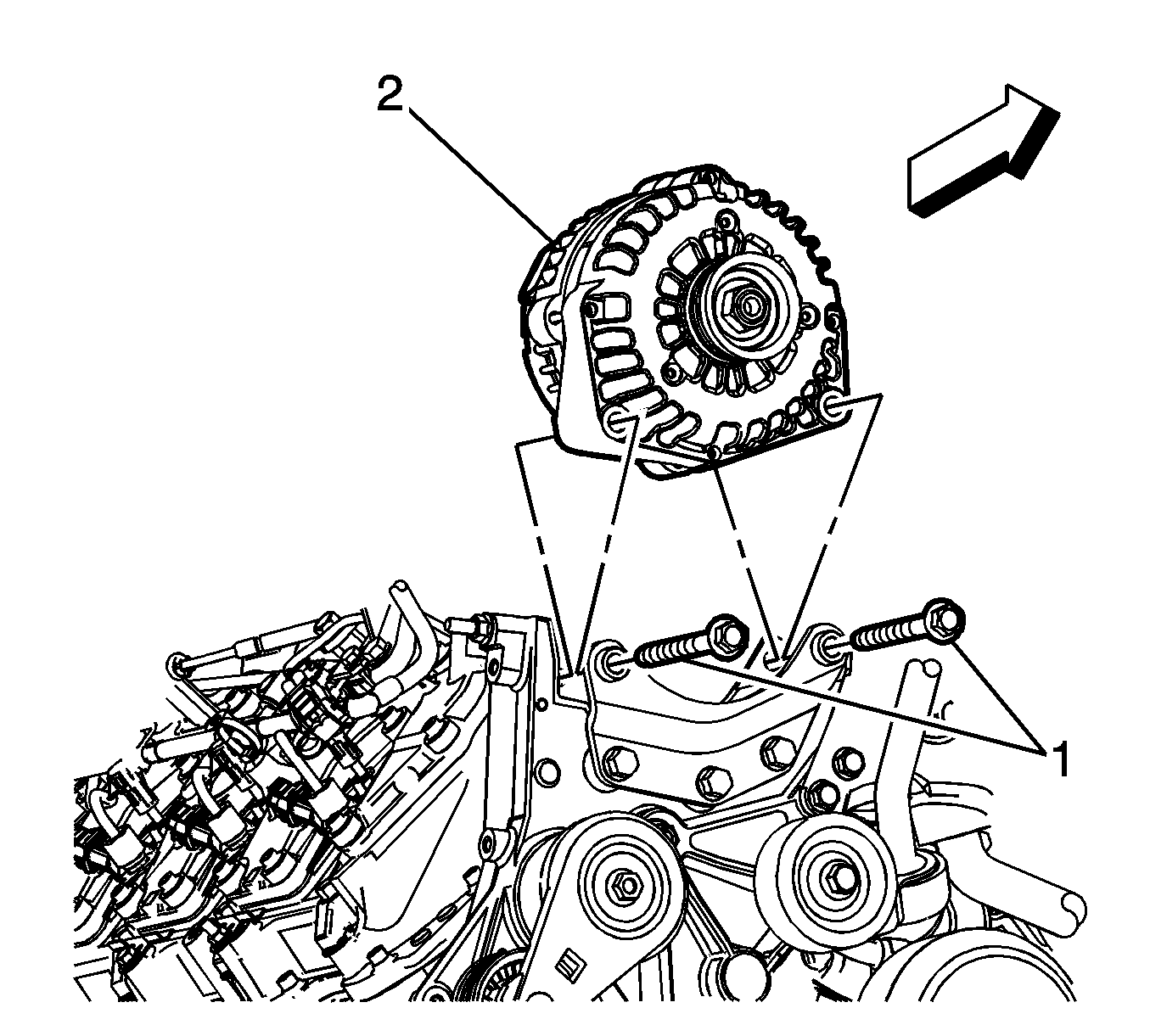

    Fig 1: Generator And Bolts
    GM2382170Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the generator (2) to the generator bracket and tighten the generator mounting bolts (1) to 58 N.m (43 lb ft).

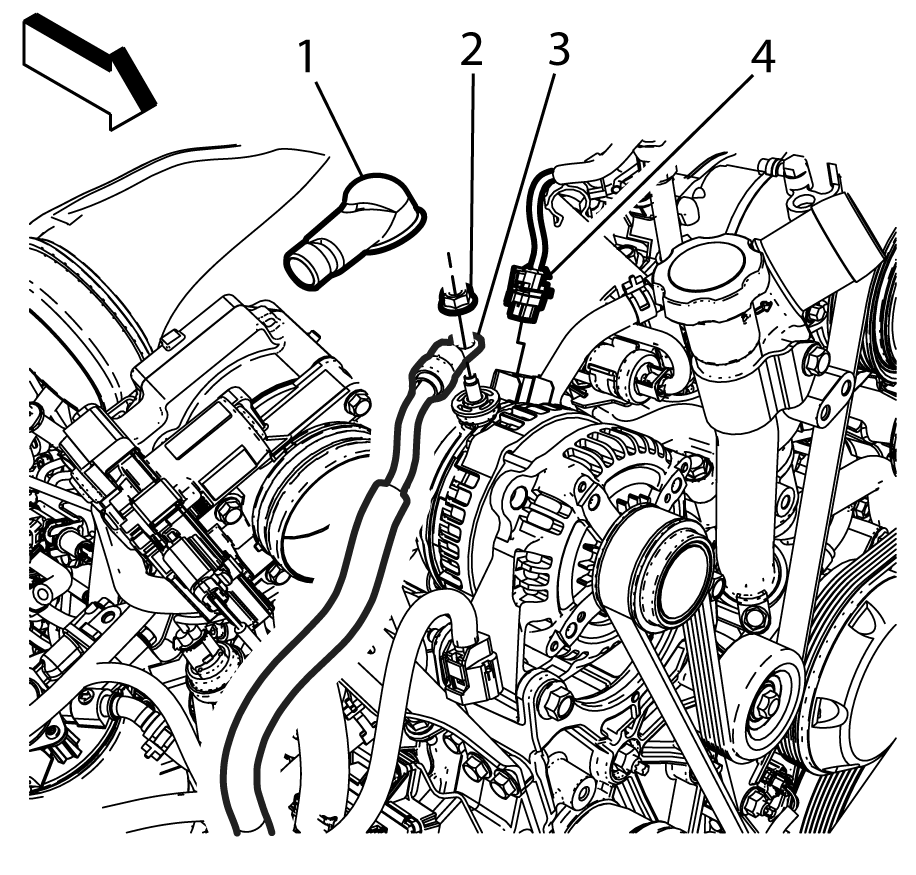

    2. Fig 2: Starter Solenoid Cable At Generator
    GM3627462Courtesy of GENERAL MOTORS COMPANY
  2. Connect the generator engine harness connector (4) and install the starter solenoid cable (3) to the generator stud. Tighten the nut (2) to 12 N.m (106 lb in).
  3. Slide the protective boot (1) back onto the terminal stud.
  4. Install the drive belt. Refer to Drive Belt Replacement .
  5. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (Dual Battery)  .
