Installation Procedure

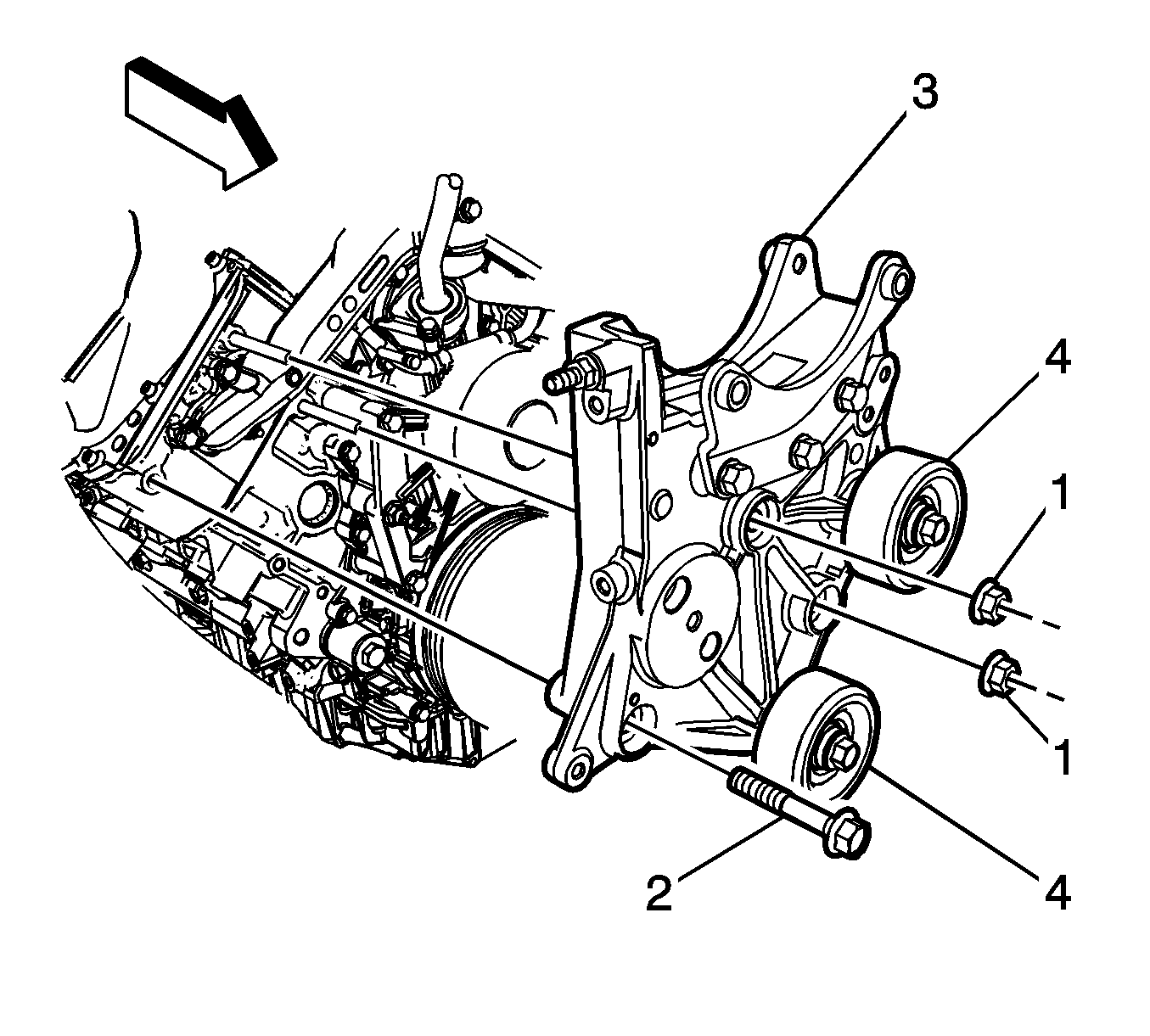

    Fig 1: Identifying Idler Pulleys, Generator Bracket, Nuts And Bolt
    GM2382167Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Position the generator bracket to the engine and install the nuts (1) and bolt (2).Tighten to 50 N.m (37 lb ft).
    2. Fig 2: Upper Intake Manifold Brace And Bolts

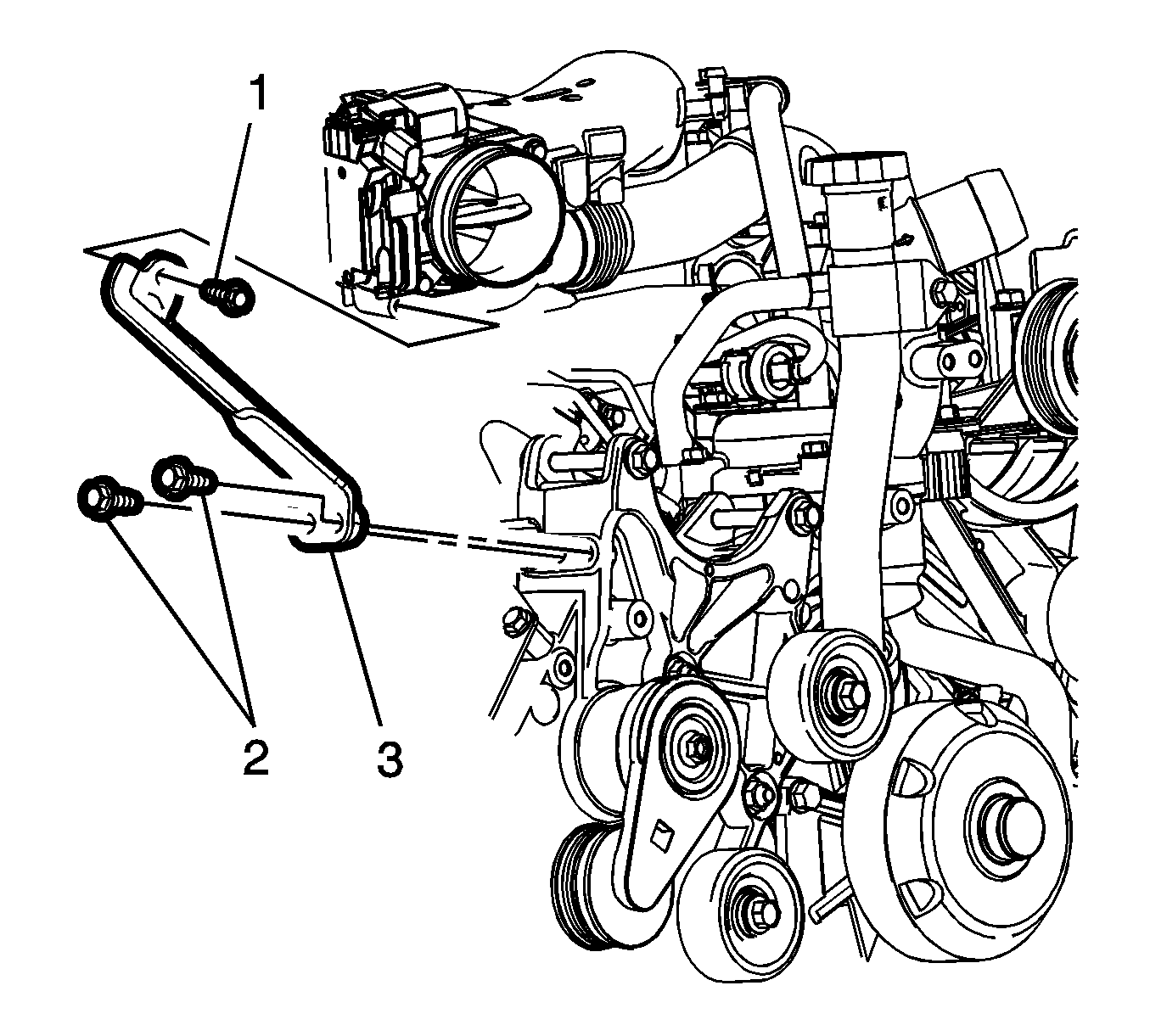

    GM2403126Courtesy of GENERAL MOTORS COMPANY
  2. Install the upper intake manifold brace bolt (1)and tighten to 25 N.m (17 lb ft).
  3. Install the bolts (2) securing the upper intake manifold brace (3) to the generator bracket and tighten to 25 N.m (17 lb ft).
    4. Fig 3: Identifying Fuel Line Retainer And Bolt

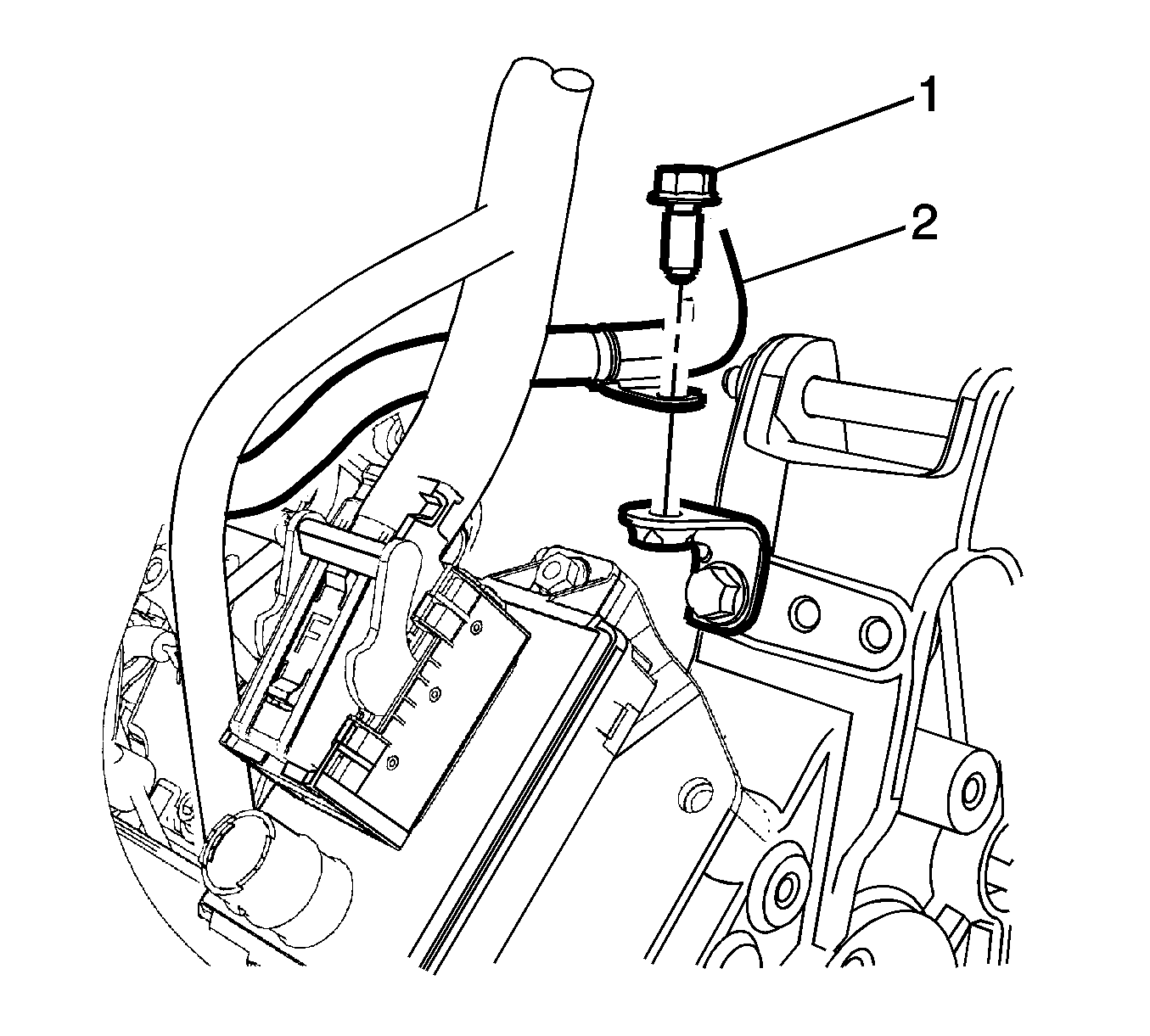

    GM2406139Courtesy of GENERAL MOTORS COMPANY
  4. Install the bolt (1) securing the fuel line retainer (2) to the generator bracket and tighten to 25 N.m (17 lb ft).
    5. Fig 4: Identifying Engine Harness Retainer, Engine Harness Stud Clip Nut, Heater Outlet Pipe Retainer And Nut

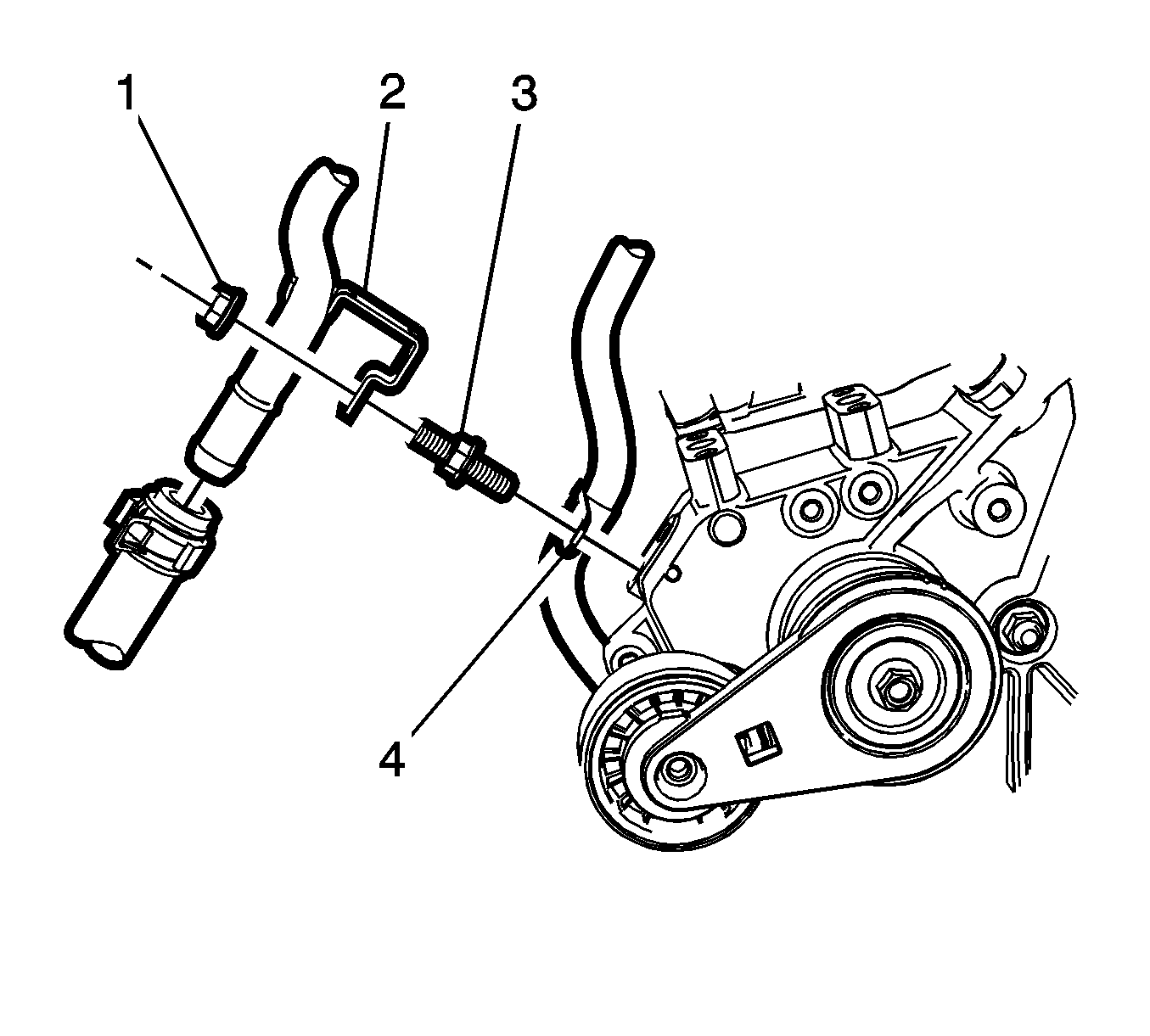

    GM2403153Courtesy of GENERAL MOTORS COMPANY
  5. Install the engine harness stud clip nut (3) and engine harness retainer (4) and tighten to 10 N.m (89 lb in).
  6. Install the heater outlet pipe retainer (2) and nut (1)and tighten to 25 N.m (17 lb ft).
    7. Fig 5: Identifying Glow Plug Module, Glow Plug Module Bracket Bolts And Nuts

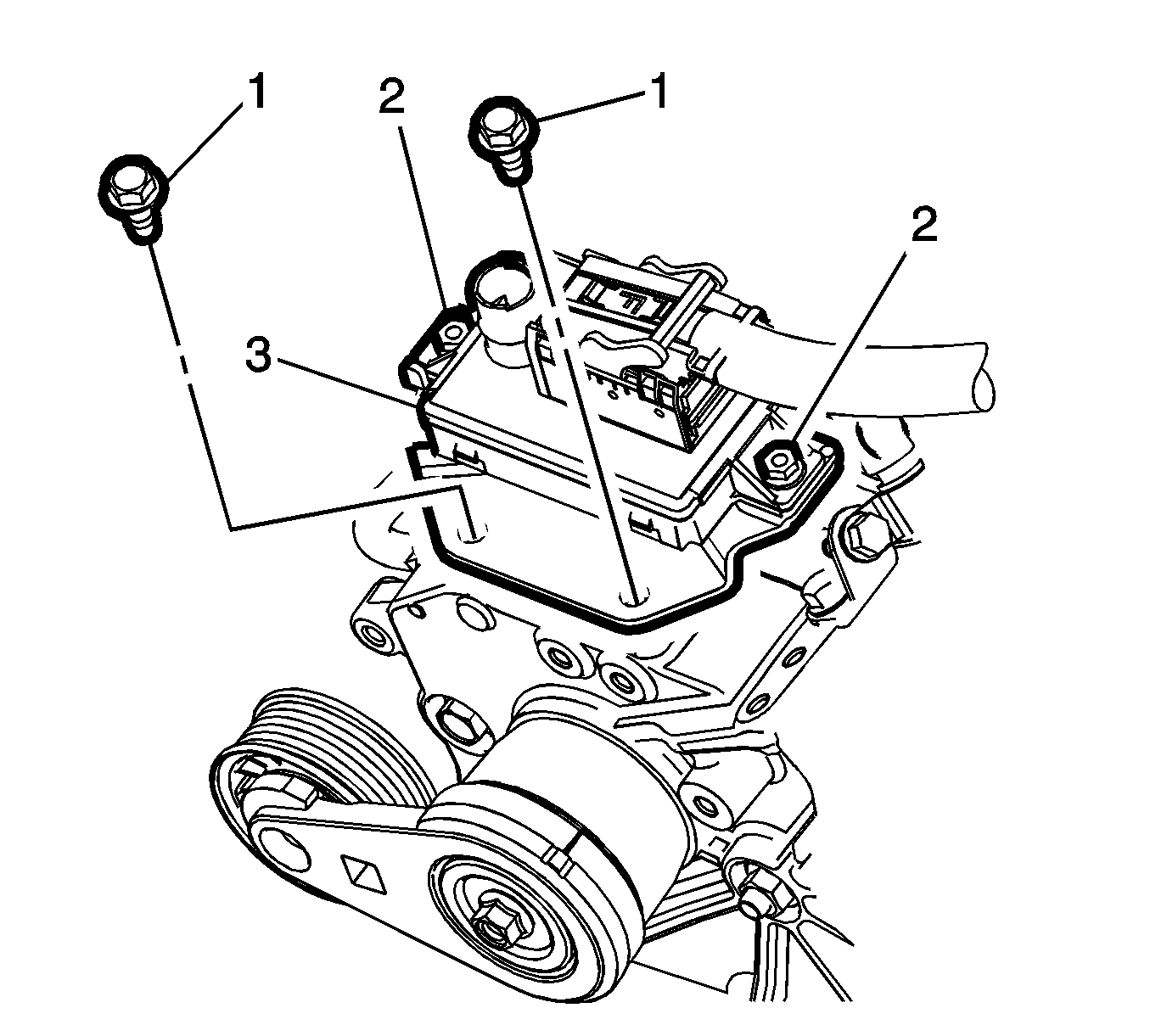

    GM2403130Courtesy of GENERAL MOTORS COMPANY
  7. Position the glow plug module on top of the generator bracket and tighten the nuts (2) and bolts (1) to 25 N.m (17 lb ft).
  8. Install the drive belt tensioner. Refer to Drive Belt Tensioner Replacement .
  9. Install the generator. Refer to Generator Replacement (Diesel) .
  10. Install the fan blade. Refer to Fan Blade Replacement (LML) .
  11. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Dual Battery) .
