Installation Procedure

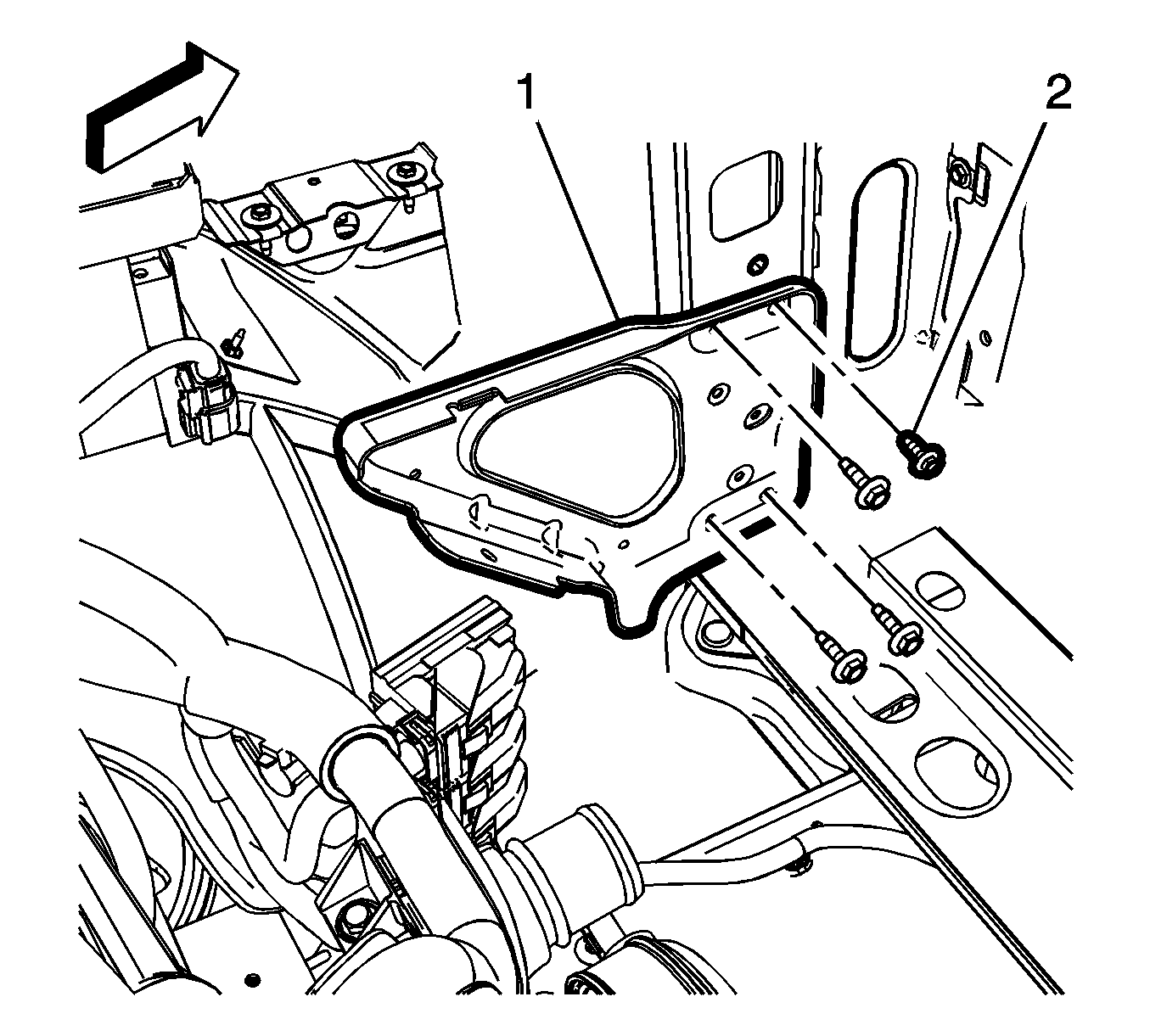

    Fig 1: Battery Tray Support Fasteners
    GM3258895Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the battery tray support (1) into position and tighten the fasteners (2) to 9 N.m (80 lb in).

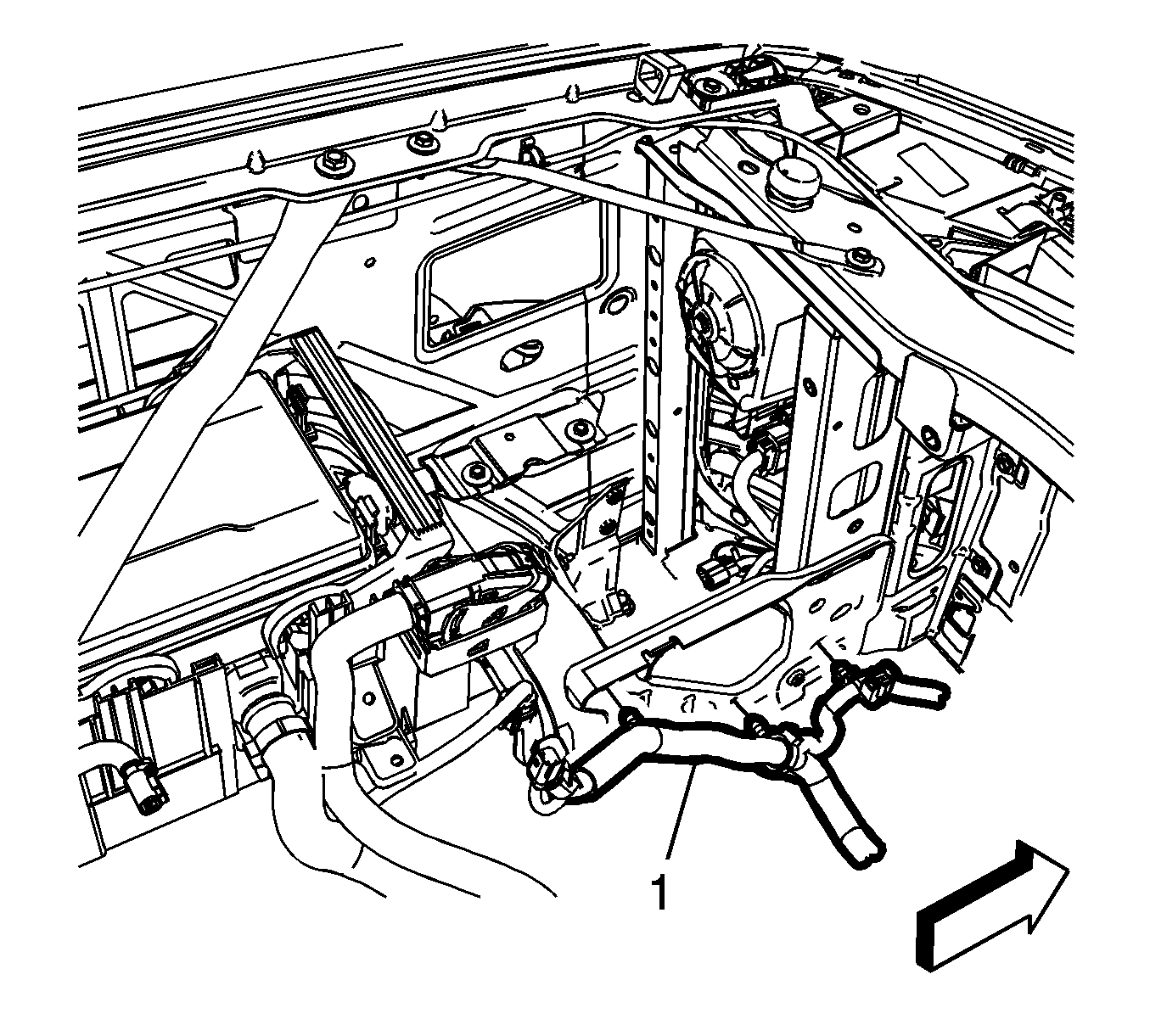

    2. Fig 2: Forward Lamp Harness
    GM3258898Courtesy of GENERAL MOTORS COMPANY
  2. Attach the forward lamp harness (1) to the battery tray support.
  3. Install the auxiliary battery tray. Refer to Auxiliary Battery Tray Replacement .
