Installation Procedure

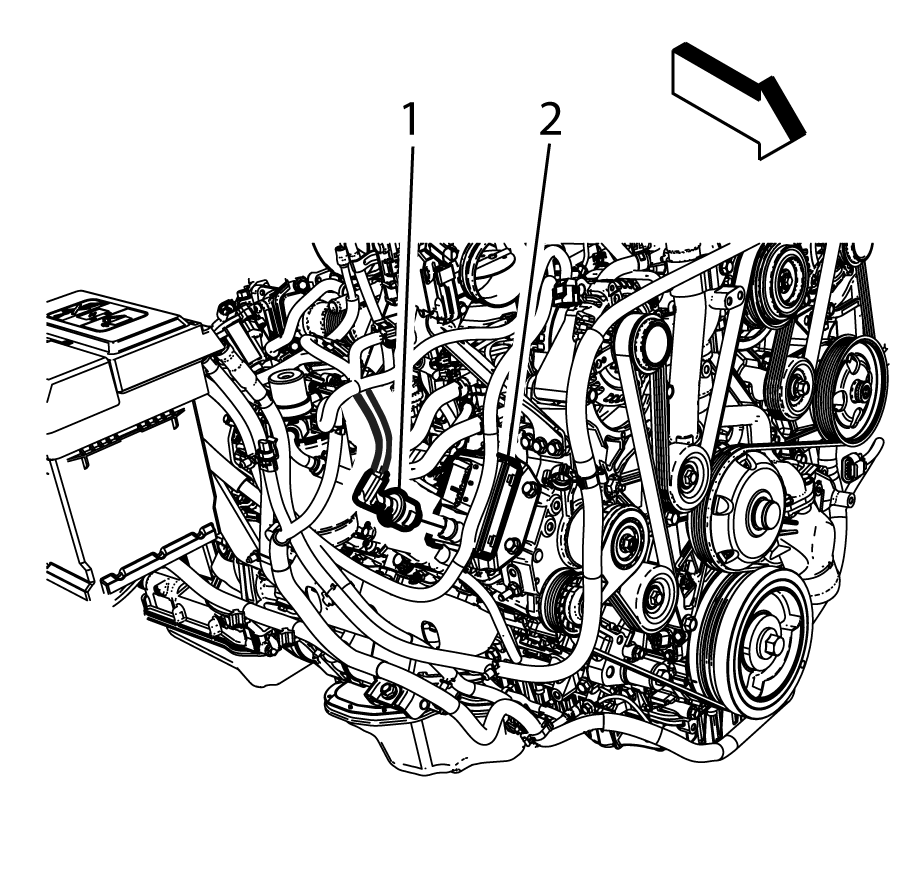

    Fig 1: Glow Plug Module
    GM3620772Courtesy of GENERAL MOTORS COMPANY
  1. Connect the battery positive junction block cable connector (1) to the glow plug module (2).

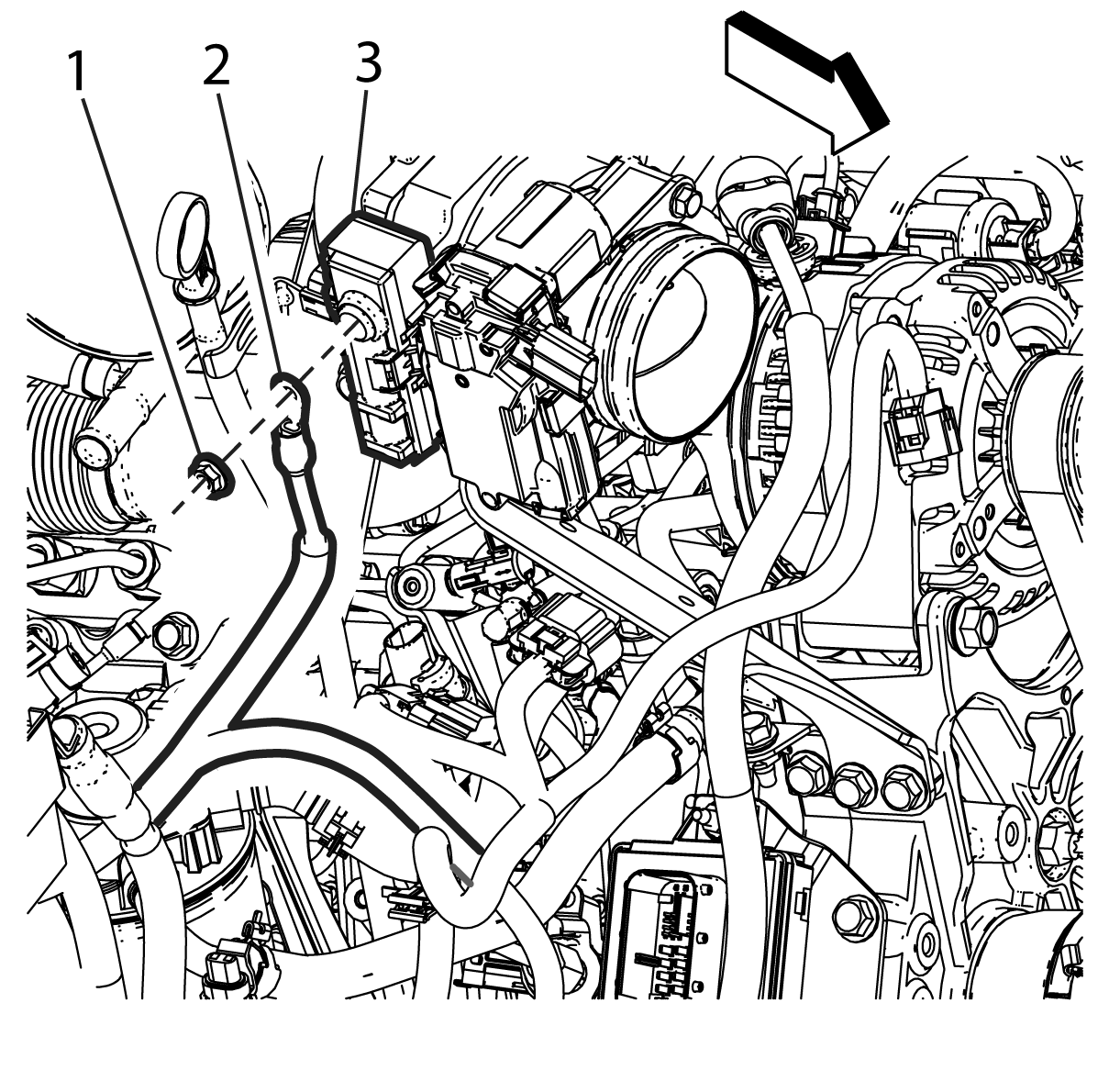

    2. Fig 2: Intake Heater Module
    GM3620774Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the battery positive junction block cable (2) to the intake heater module (3) and tighten the fastener (1) to 9 N.m (80 lb in).

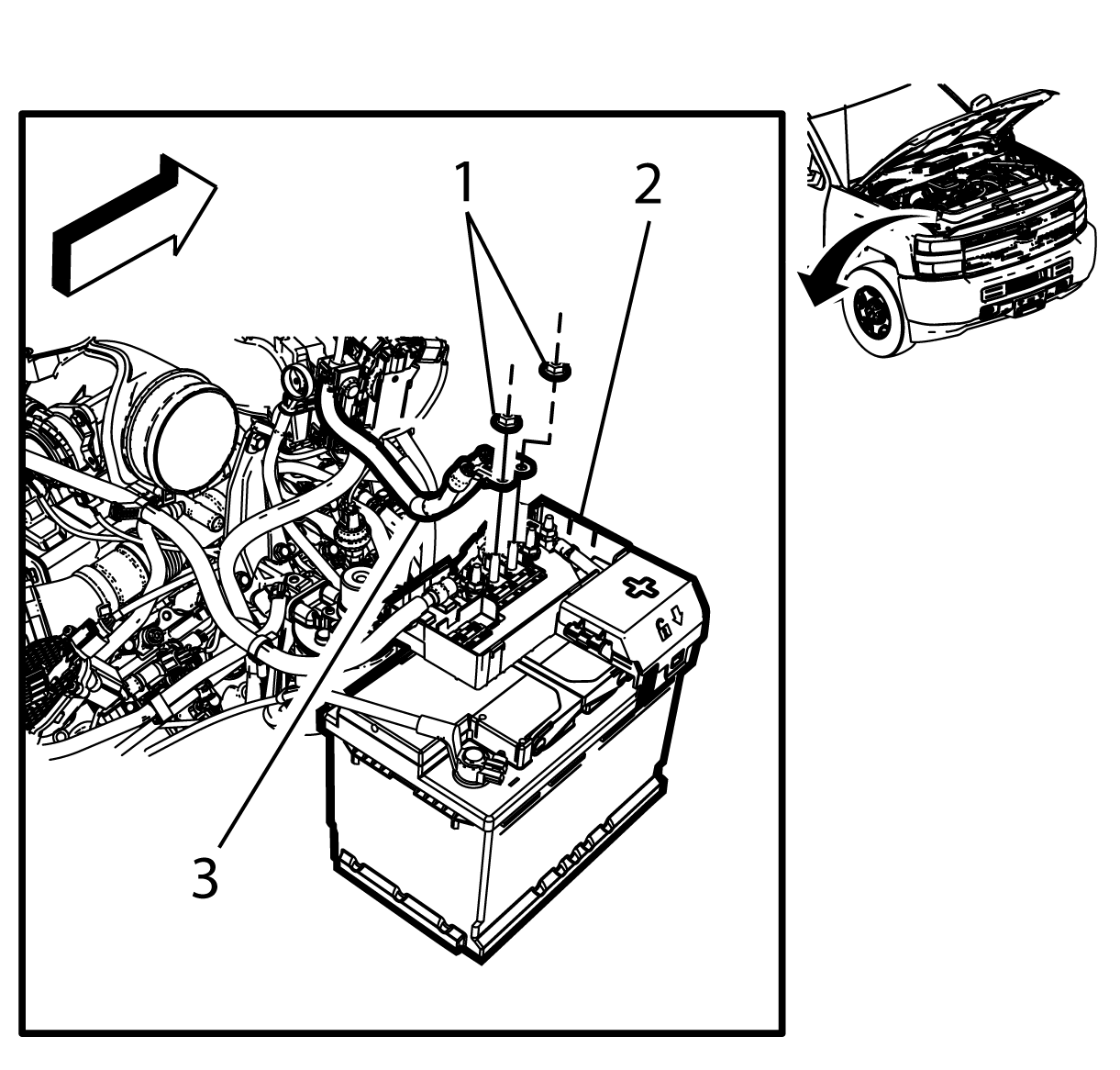

    3. Fig 3: Battery Positive Junction Block Cable
    GM3620775Courtesy of GENERAL MOTORS COMPANY
  3. Install the battery positive junction block cable (3) to the battery fuse block (2) and tighten the fasteners (1) to 9 N.m (80 lb in).
  4. Close the battery fuse block cover.
  5. Air Cleaner Assembly Replacement »Install
  6. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (Dual Battery) .
