Auxiliary Inputs

WARNING: This page is about a different car, the 2015 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

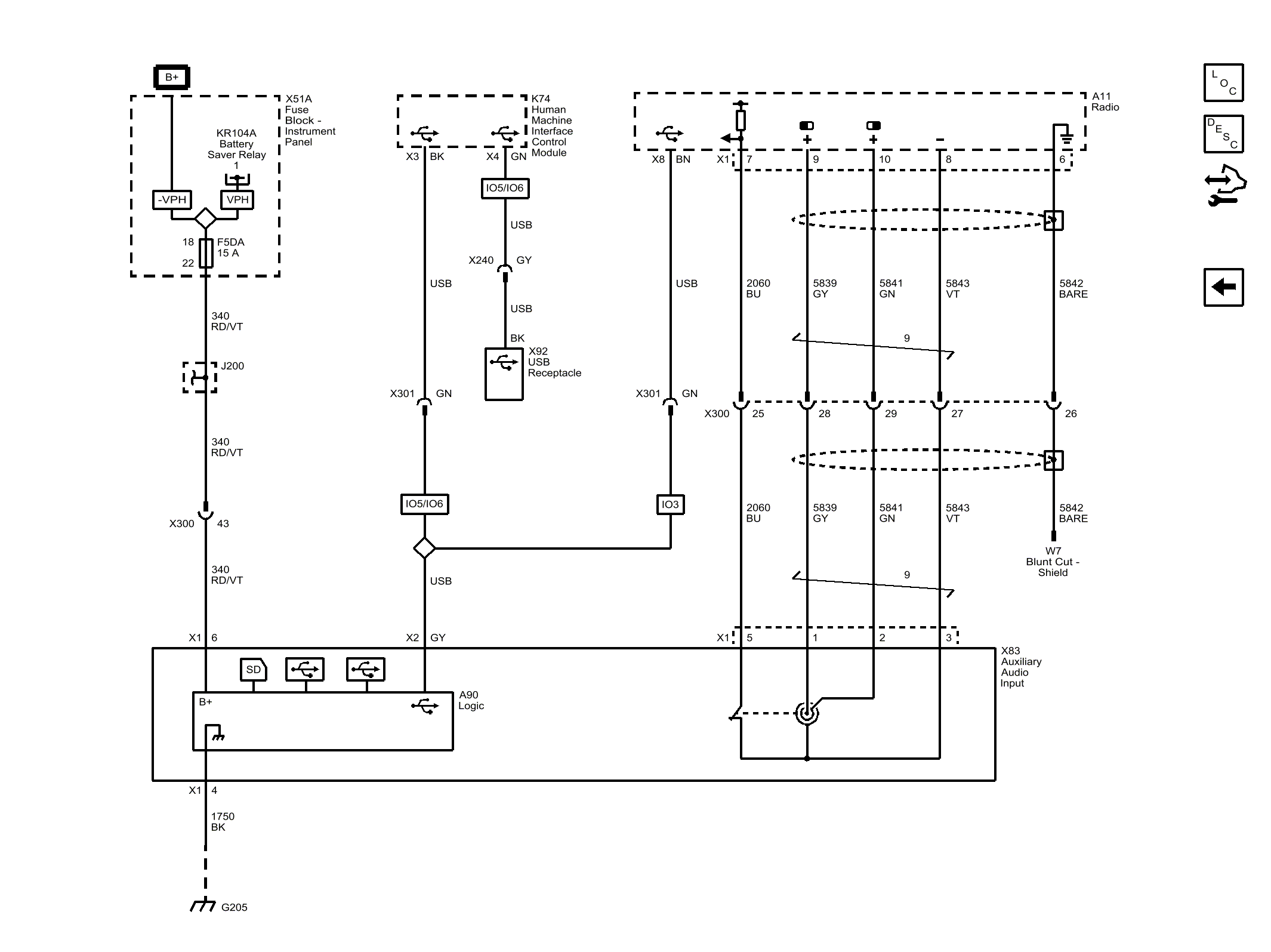

Fig 1: Auxiliary Inputs
GM3715855Courtesy of GENERAL MOTORS COMPANY
