Radio Front Center Speaker Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

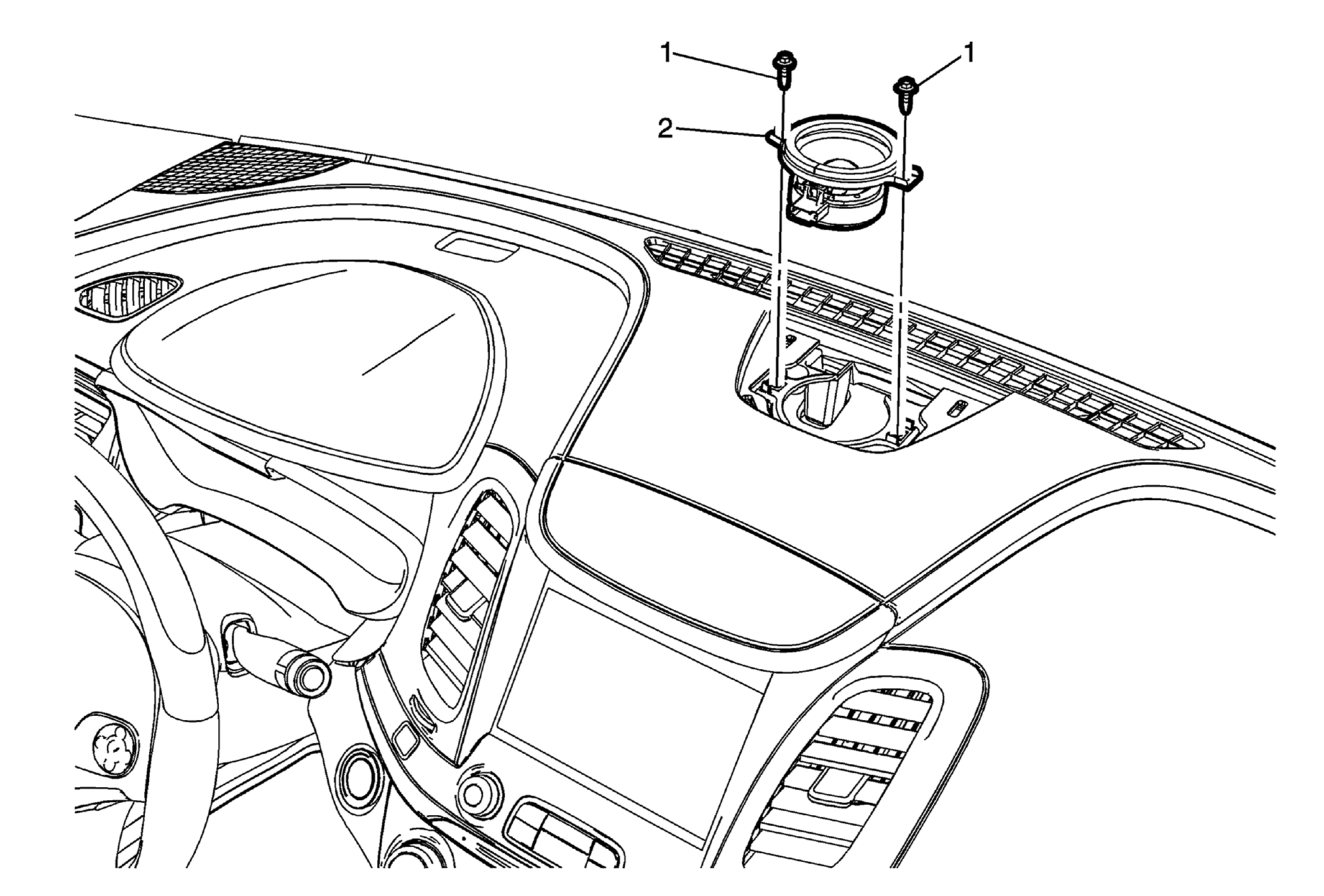

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the radio front center speaker grille. Refer to Radio Front Center Speaker Grille Replacement . |
|
| 1 | Radio Front Center Speaker Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
|
| 2 | Radio Front Center Speaker Procedure Disconnect the electrical connector. |
