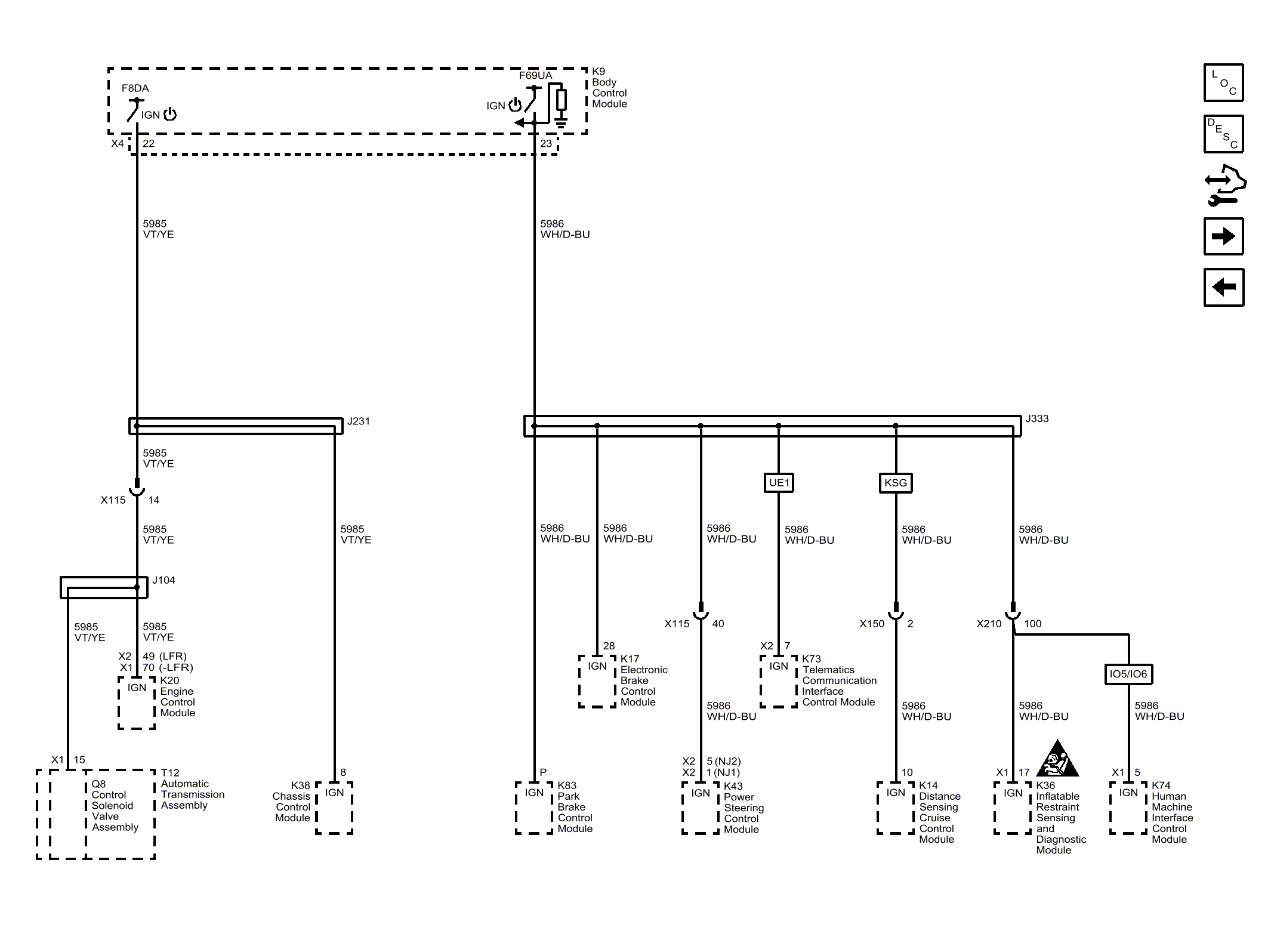

Home >> Chevrolet >> 2015 >> Impala LS, 2.5L Eng VIN L >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> GMLAN Communications Enable
