Power, Ground, Data Communications and Subsystem References (1 of 4)

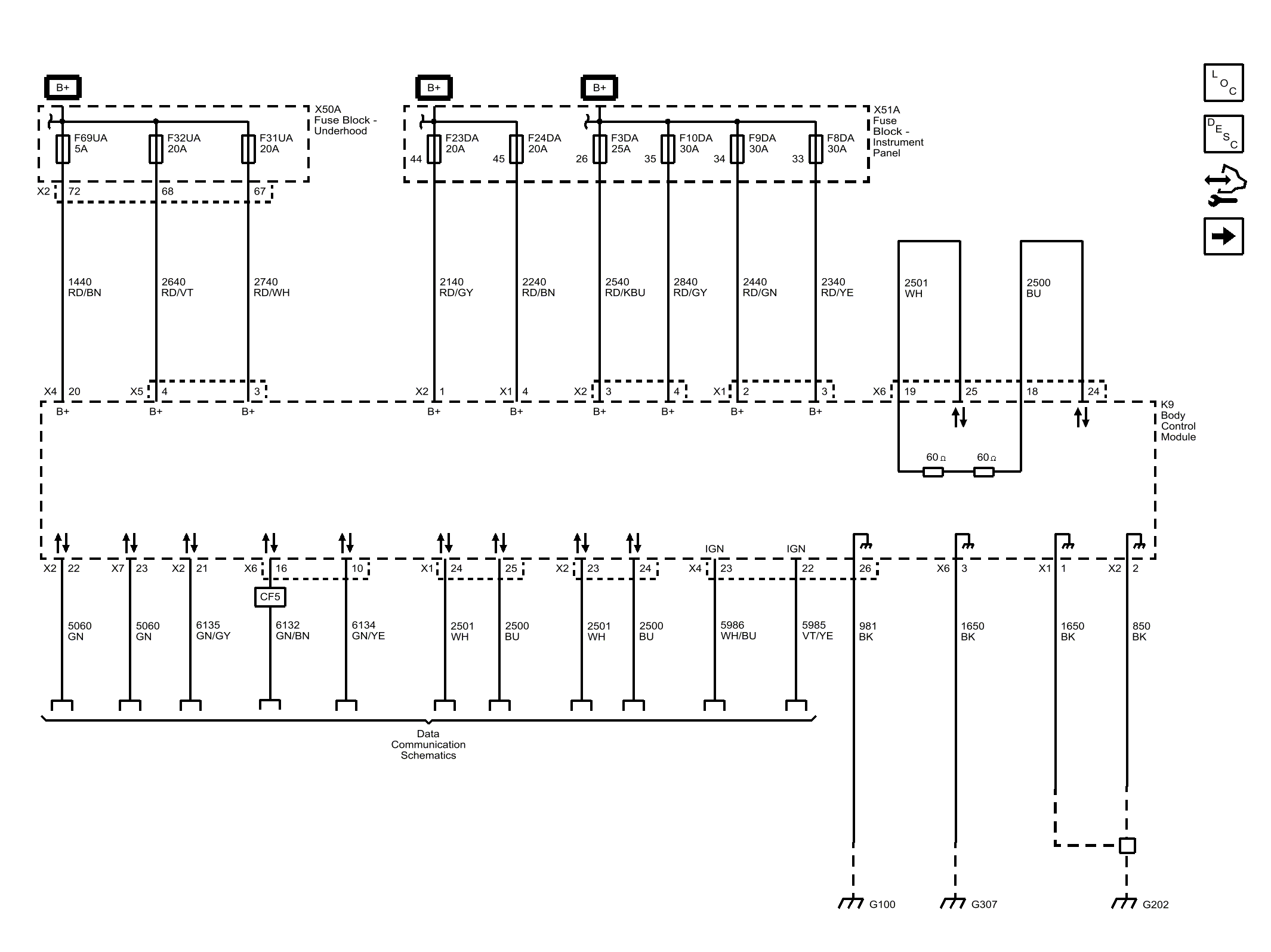

Fig 1: Power, Ground, Data Communications and Subsystem References (1 of 4)

GM3814486

Courtesy of GENERAL MOTORS COMPANY
