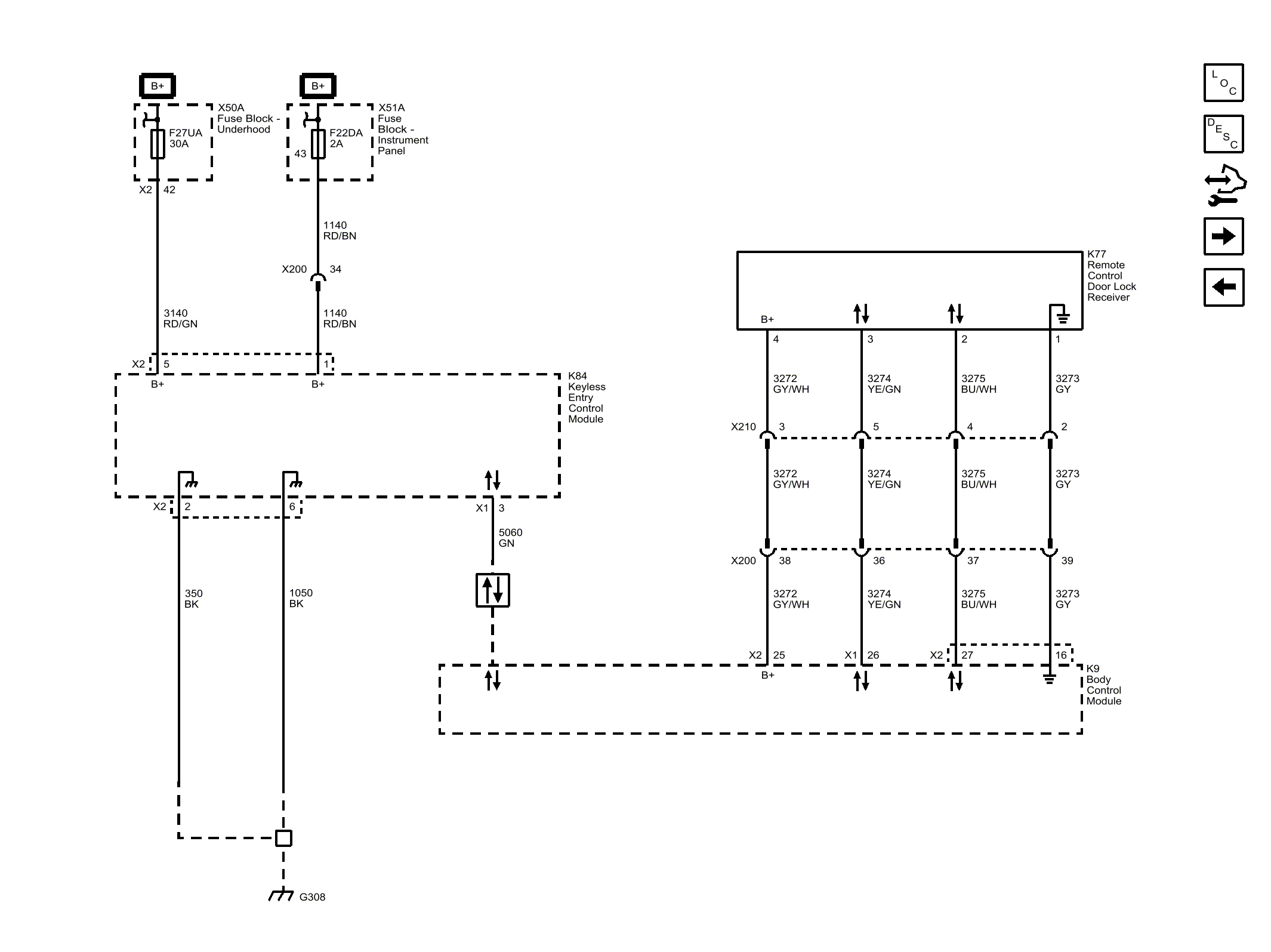

Home >> Chevrolet >> 2015 >> Cruze Diesel >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System And Remote Functions >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics >> Keyless and Passive Entry (ATH)
