Engine Coolant Temperature Sensor Replacement

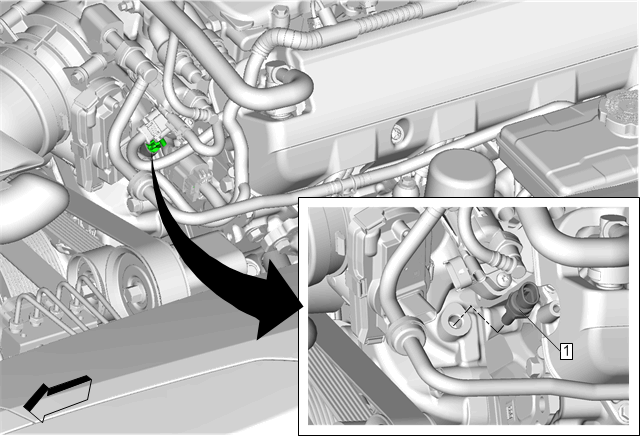

Fig 1: Engine Coolant Temperature Sensor
GM3965046Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Cooling System Draining and Filling (Static Fill)Cooling System Draining and Filling (GE 47716)
1 Engine Coolant Temperature Sensor
CAUTION:

Refer to Component Fastener Tightening Caution .


Procedure
Disconnect the electrical connector from the engine coolant temperature sensor.
Tighten
20 N.m (15 lb ft)
