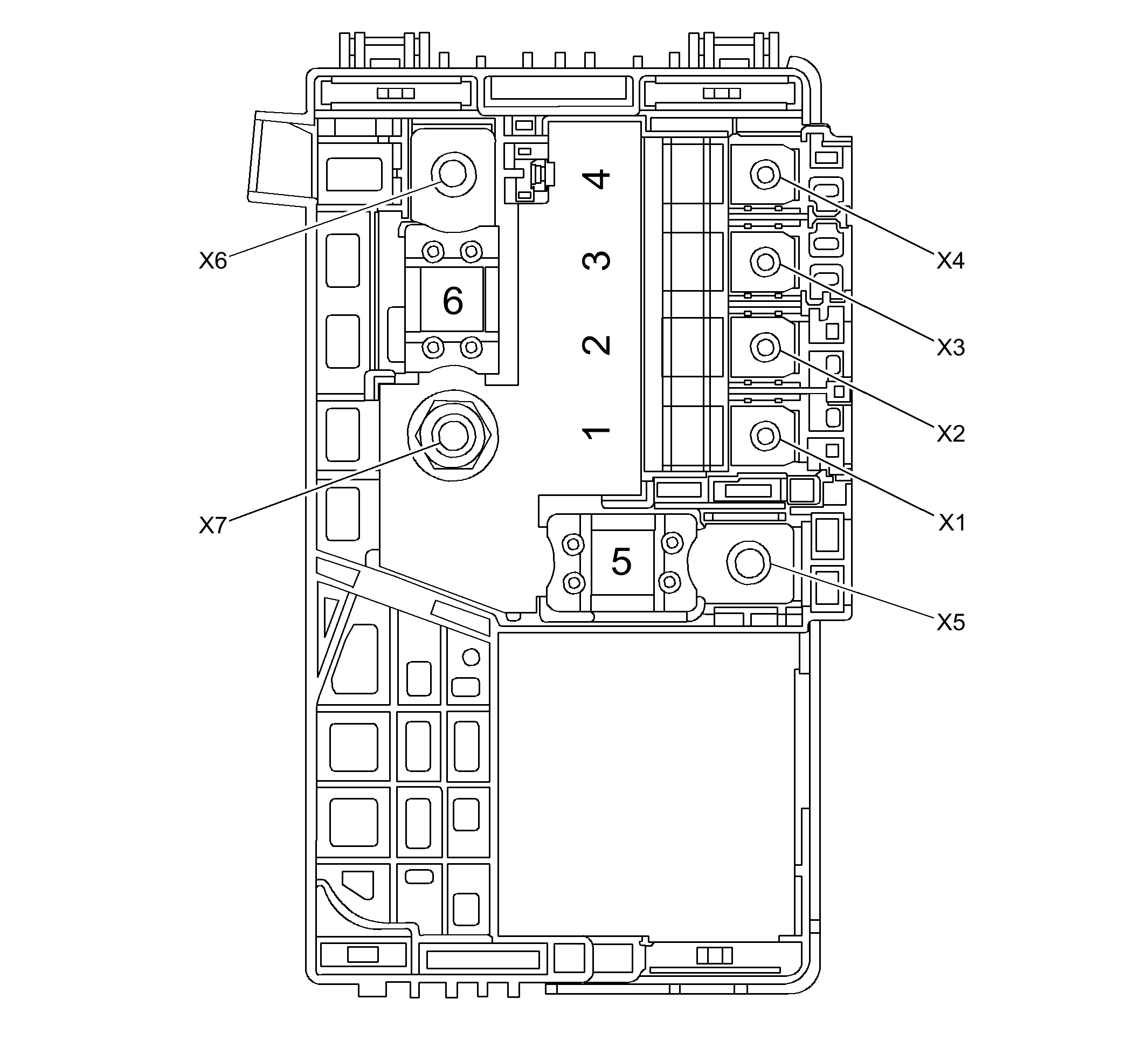

X50D Fuse Block - Battery Top View
X50D FUSE BLOCK - BATTERY FUSE IDENTIFICATION
| No. | Device Label Name | Device Assigned Name | Rating | Description |
|---|---|---|---|---|
| 1 | - | F1UB | 100A | K43 Power Steering Control Module |
| 2 | - | F2UB | 100A | X51A Fuse Block - Instrument Panel |
| 3 | - | F3UB | 100A | X51A Fuse Block - Instrument Panel |
| 4 | - | F4UB | 100A | K22 Cooling Fan Control Module |
| 5 | - | F5UB | 250A | X50A Fuse Block - Underhood |
| 6 | - | F6UB | 300A | M64 Starter Motor |
