Windshield Wiper Transmission Replacement

WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

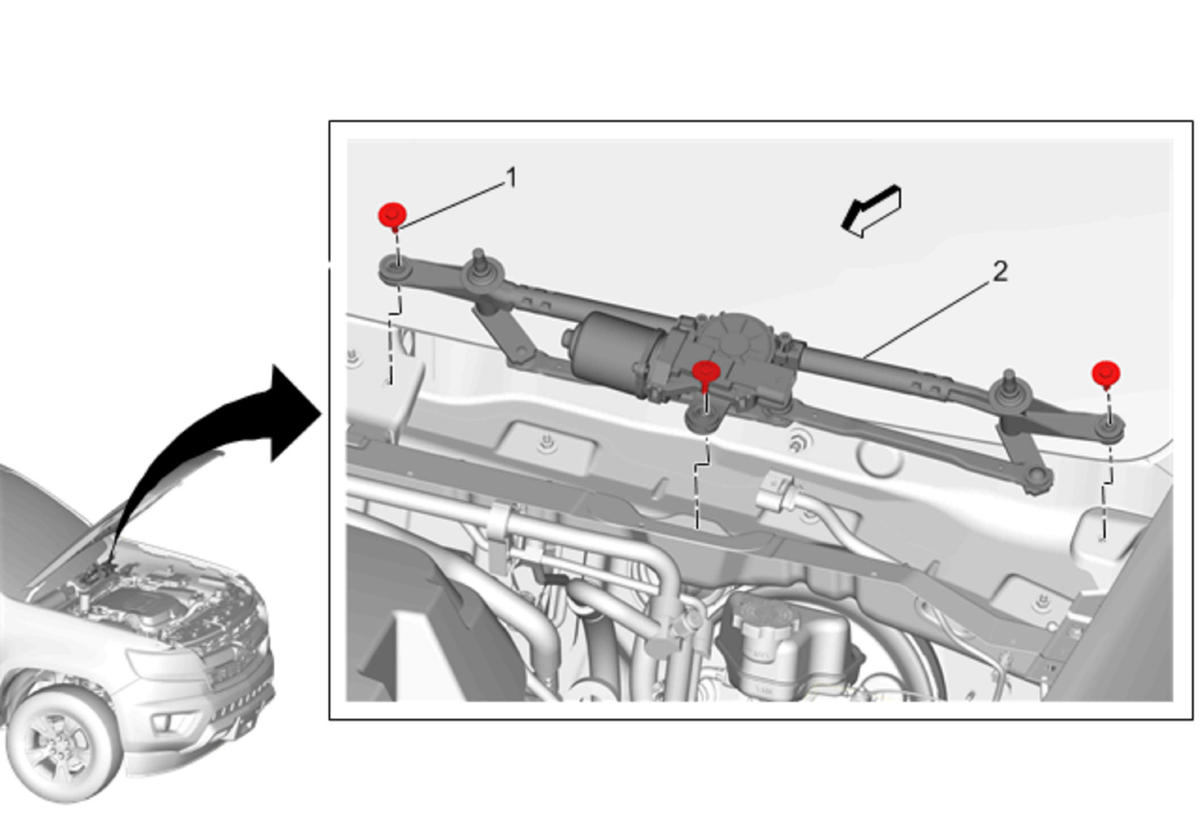

Fig 1: Windshield Wiper Transmission
GM3802329Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
1 Windshield Wiper Transmission Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Windshield Wiper Transmission

Procedure

  1. Disconnect the windshield wiper motor electrical connector.
  2. Remove the windshield wiper transmission from the vehicle.
  3. Transfer components as necessary.
