Serial Data Communications Enable and Accessory Wake Up

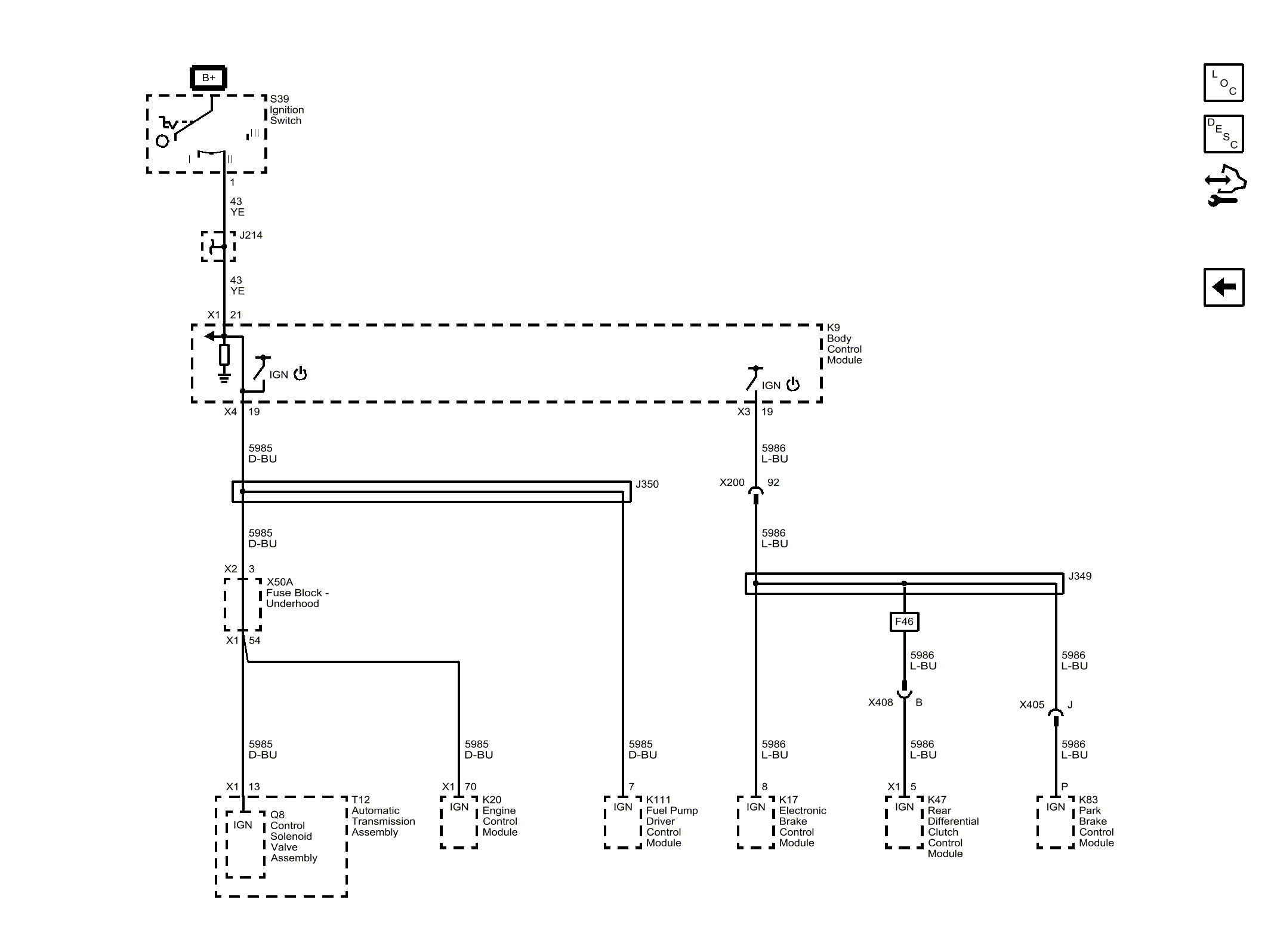

Fig 1: Serial Data Communications Enable and Accessory Wake Up

GM3763579

Courtesy of GENERAL MOTORS COMPANY
