Removal Procedure

WARNING: This page is about a different variant/trim than selected.

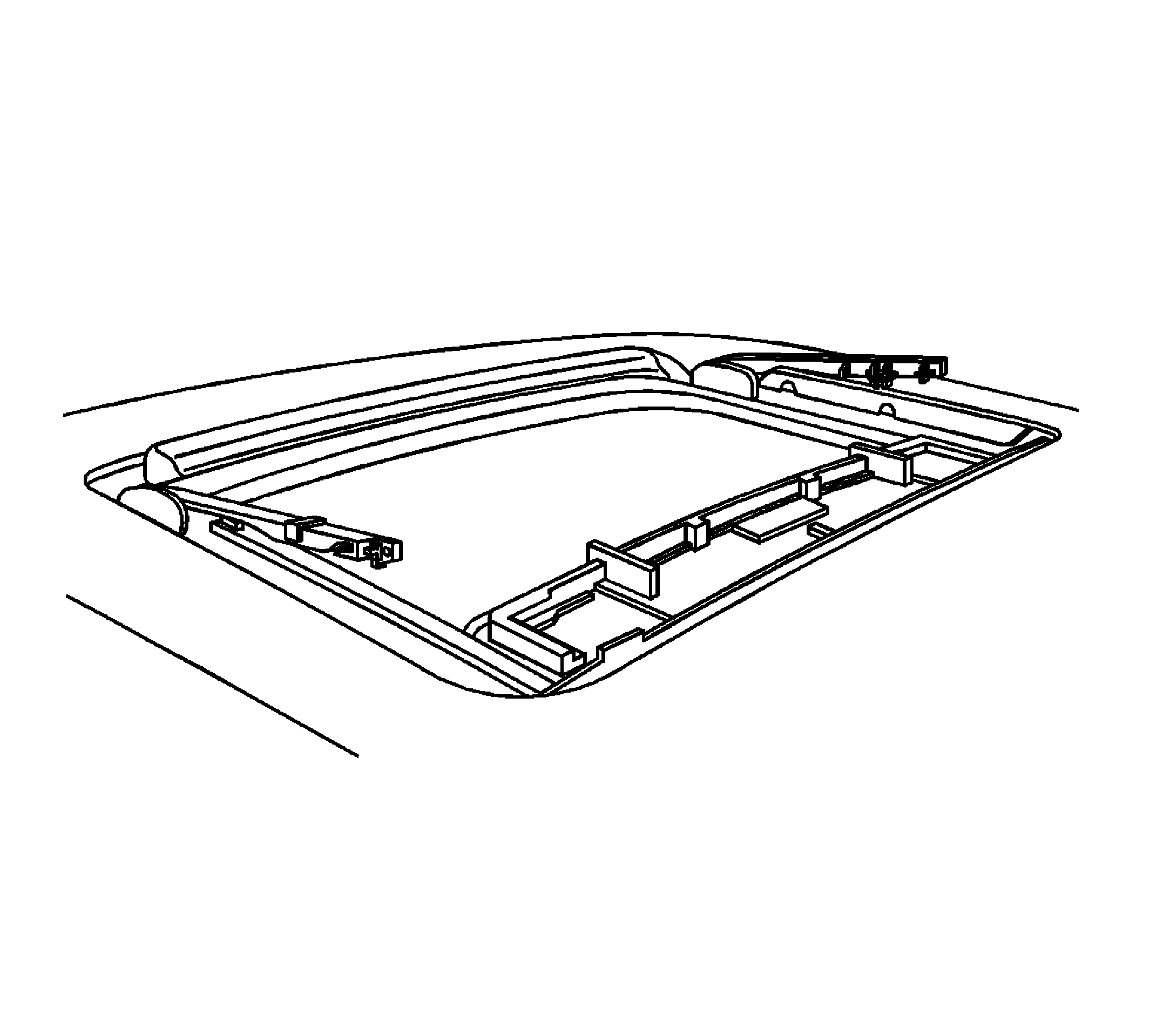

    Fig 1: Sunroof Guides
    GM2529662Courtesy of GENERAL MOTORS COMPANY
  1. Remove the sunroof glass. Refer to Sunroof Window Replacement .

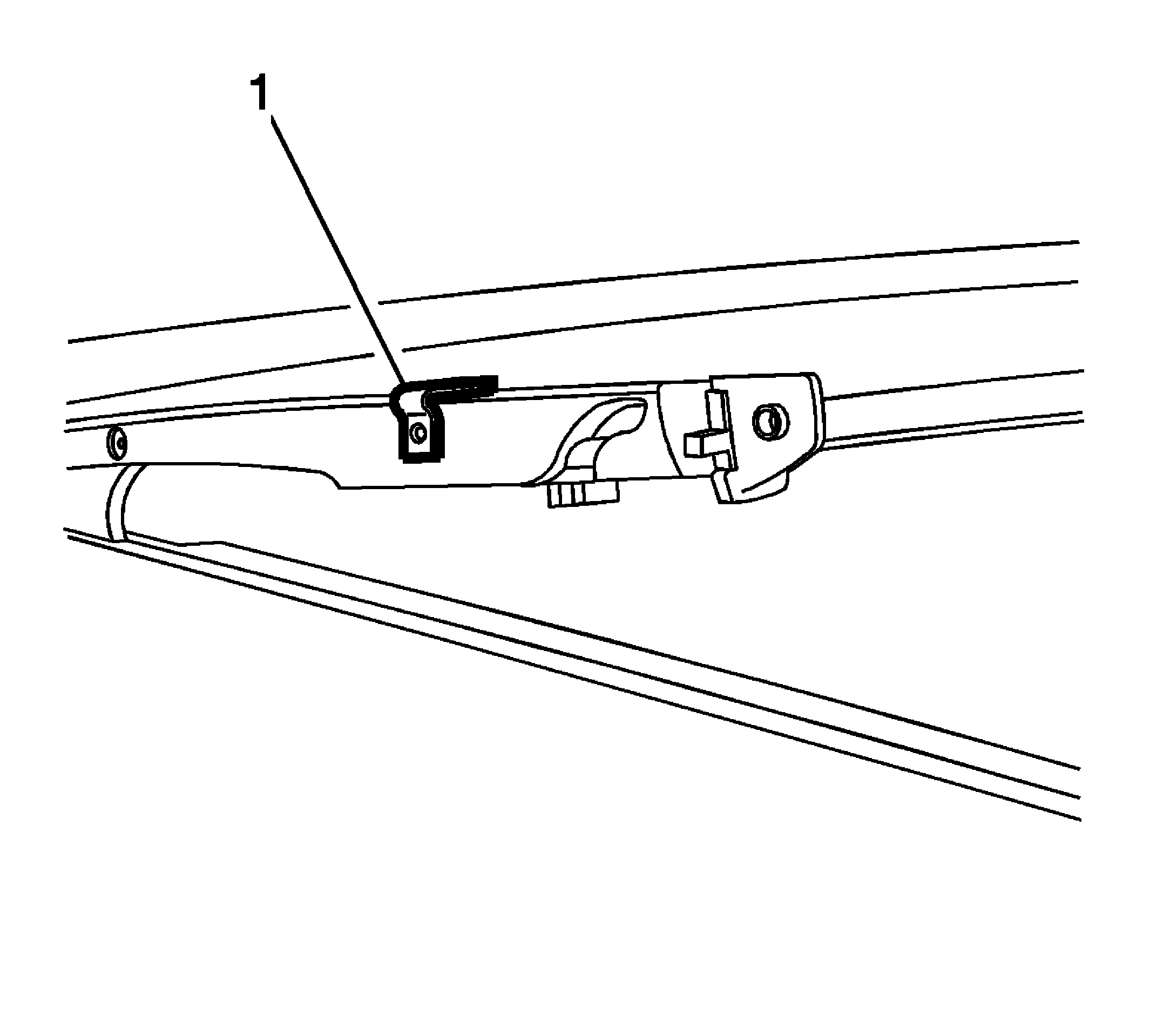

    2. Fig 2: Slide Guide Clips
    GM2529684Courtesy of GENERAL MOTORS COMPANY
  2. Lifting upward with a flat-bladed tool, remove the left and right clips (1) retaining the locking slide guides to the mechanism arms. Discard the clips as new clips will be used for installation.

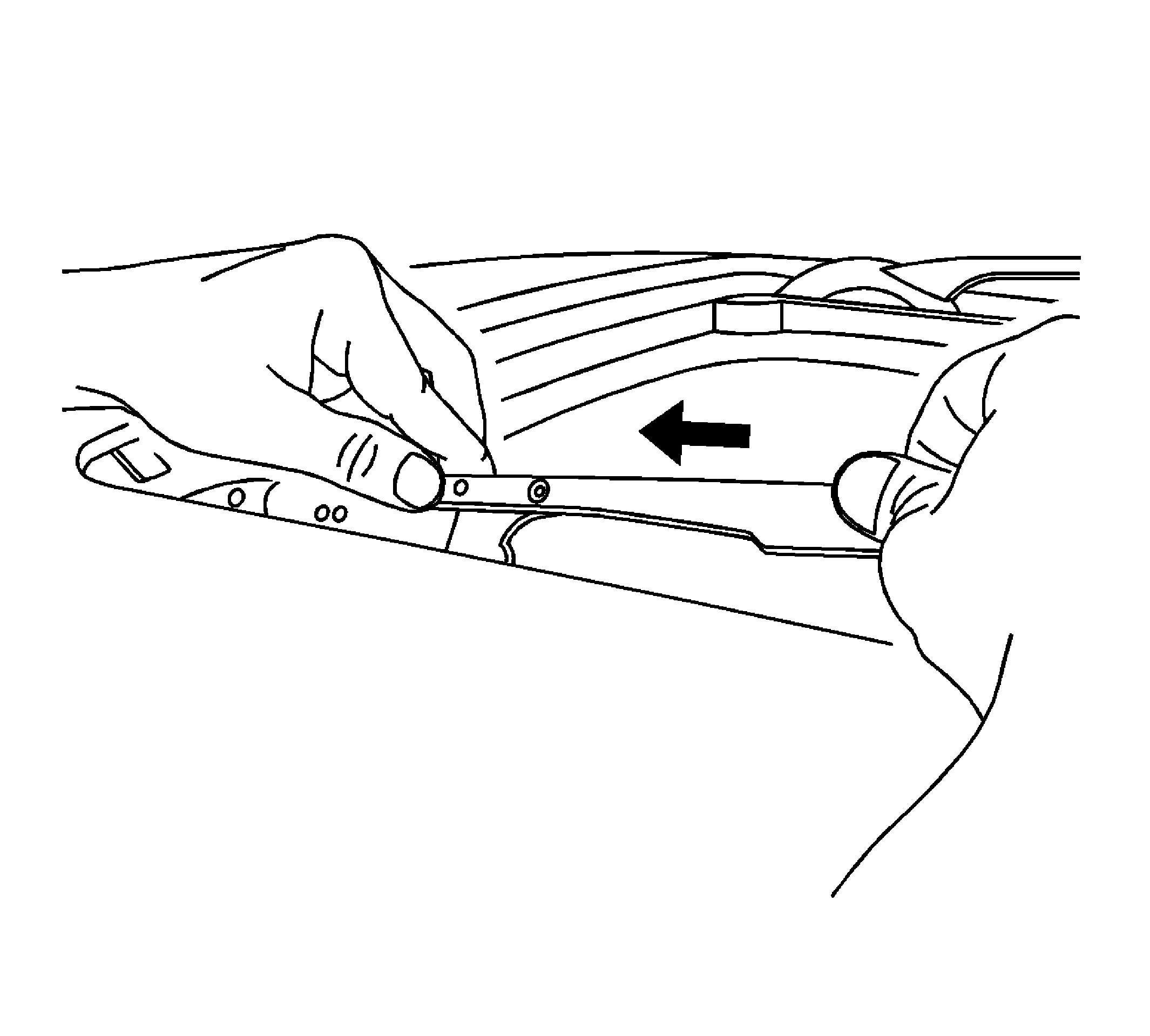

    3. Fig 3: Disengaging Sunroof Guides
    GM2529665Courtesy of GENERAL MOTORS COMPANY
  3. Remove the left and right guides from the arms by unsnapping it at the bottom rear, then pivot the front upward while pushing forward to disengage the front arm pin and slide it off the arm.
