Battery Charger

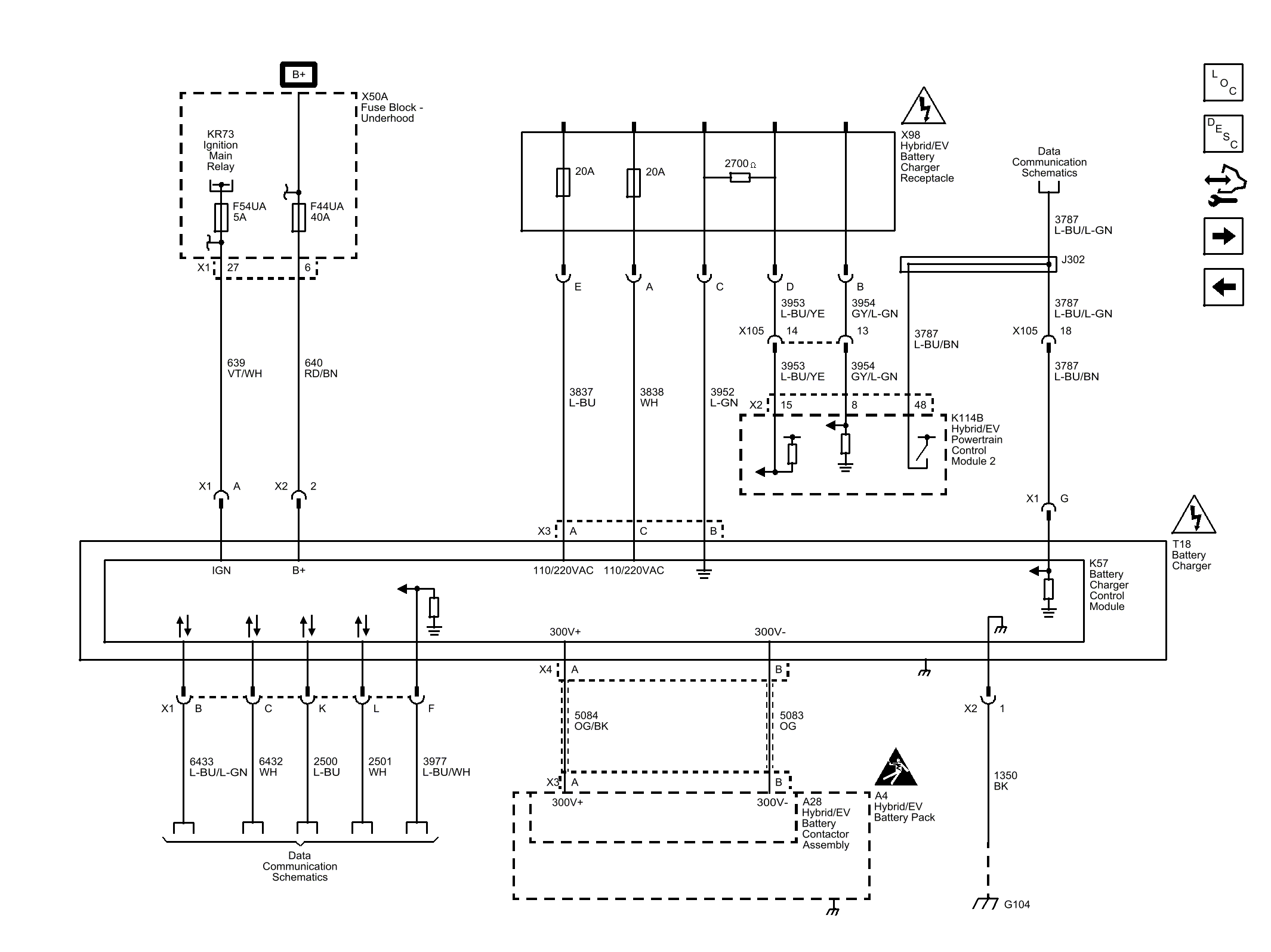

Fig 1: Battery Charger Wiring Schematics

GM3340140

Courtesy of GENERAL MOTORS COMPANY
