Home >> Chevrolet >> 2014 >> Trax LS, Automatic Trans >> Repair and Diagnosis >> Body & Frame >> Windows >> Fixed And MOVEABLE Window System >> Schematic Wiring Diagrams >> Moveable Window Wiring Schematics (Encore) >> Front Windows

Front Windows

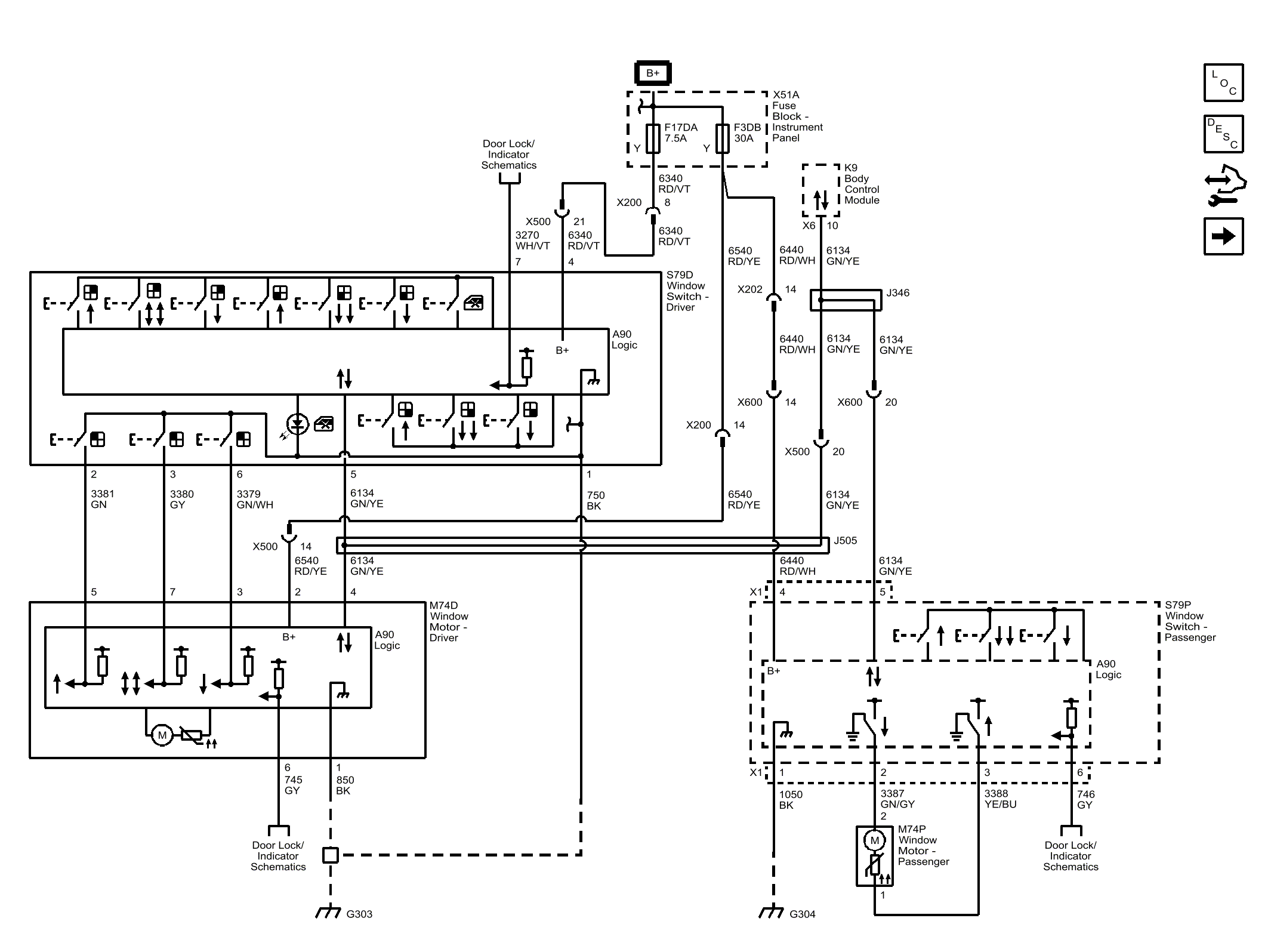

Fig 1: Front Windows

GM3265788

Courtesy of GENERAL MOTORS COMPANY
