Defogger Wiring Schematics (Encore): Defogger

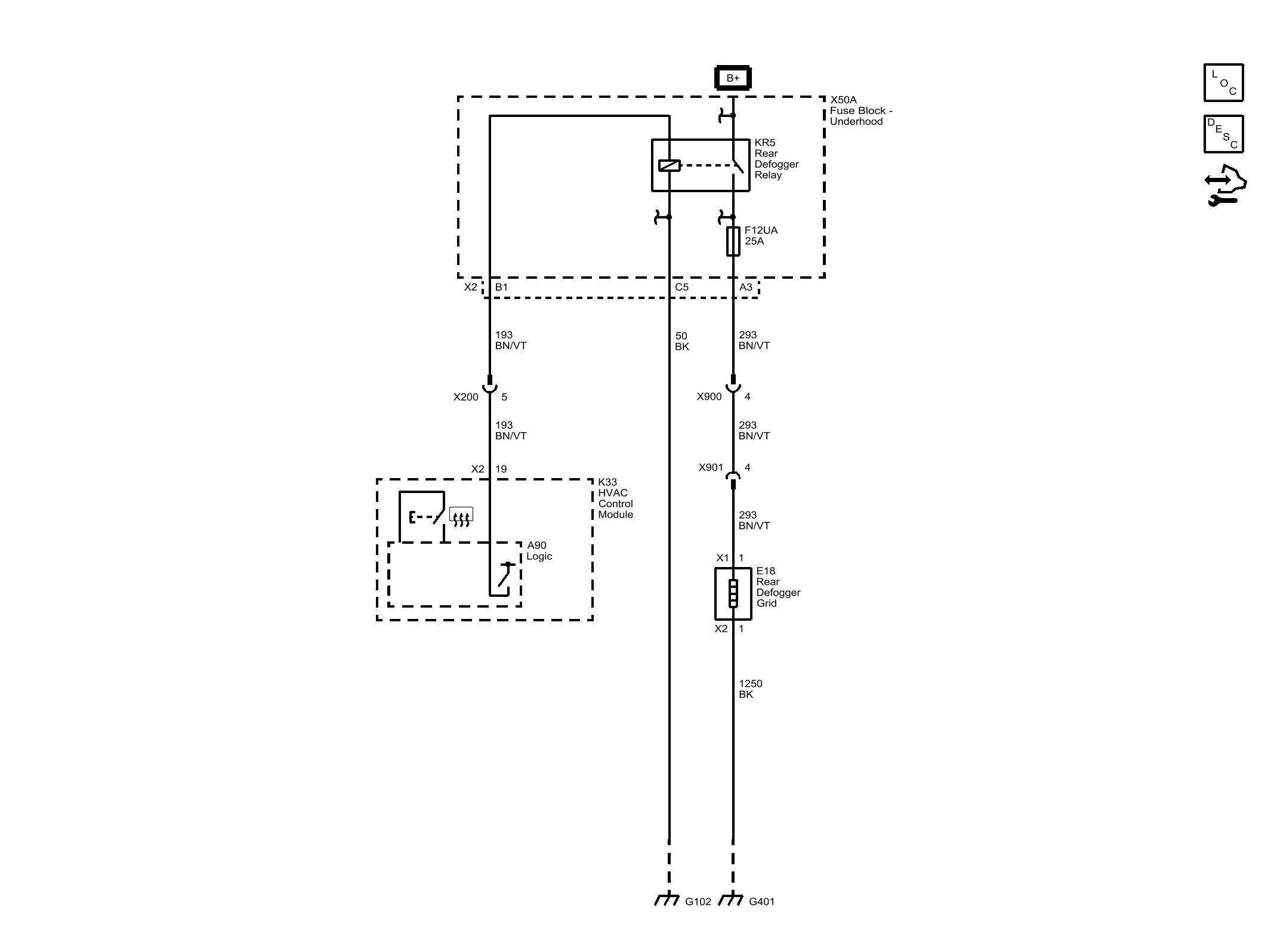

Fig 1: Defogger

GM3263627

Courtesy of GENERAL MOTORS COMPANY
