Cruise Control

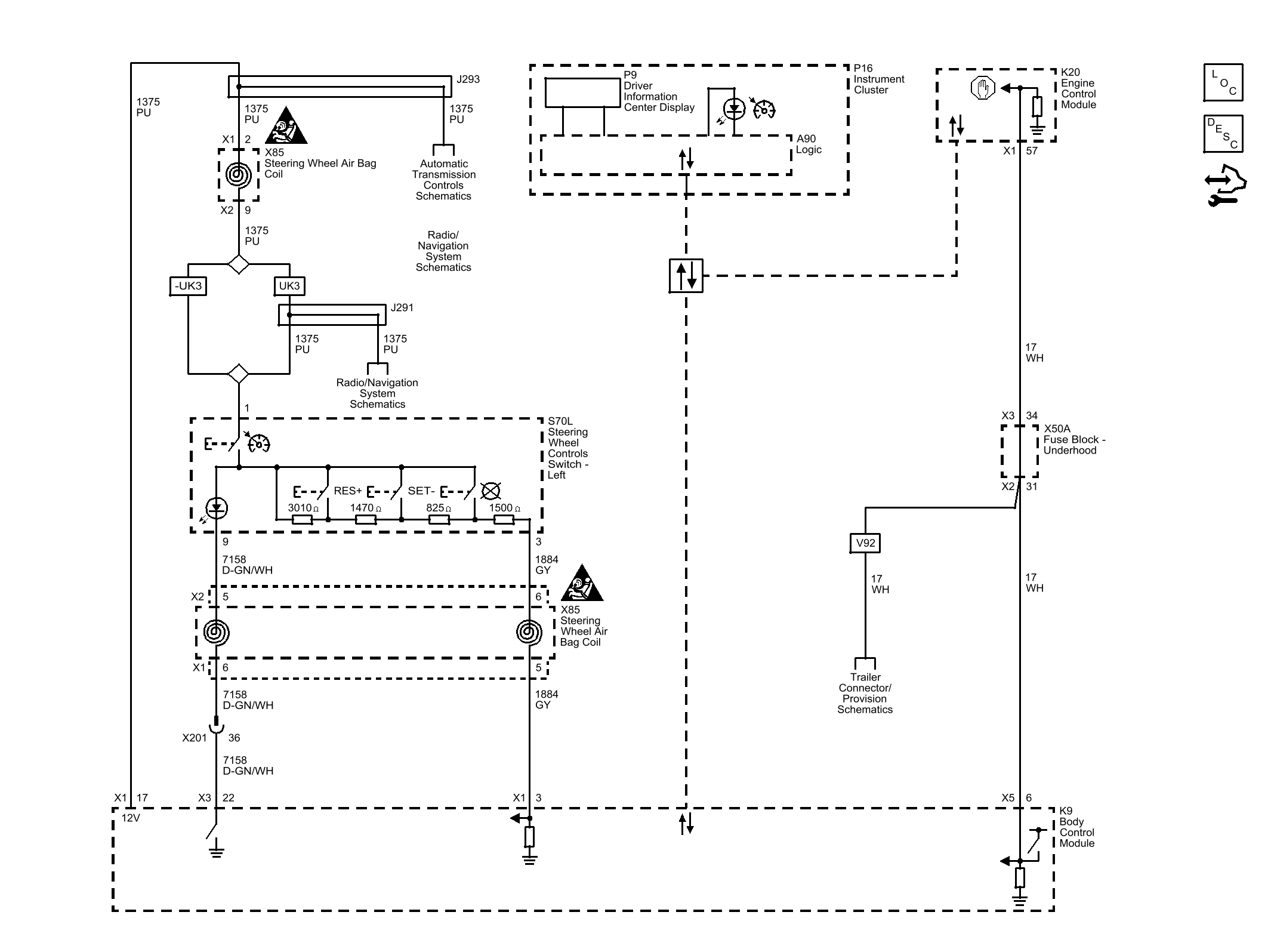

Fig 1: Cruise Control System Wiring Schematic

GM3329296

Courtesy of GENERAL MOTORS COMPANY
