Rear Side Door Window Channel Replacement

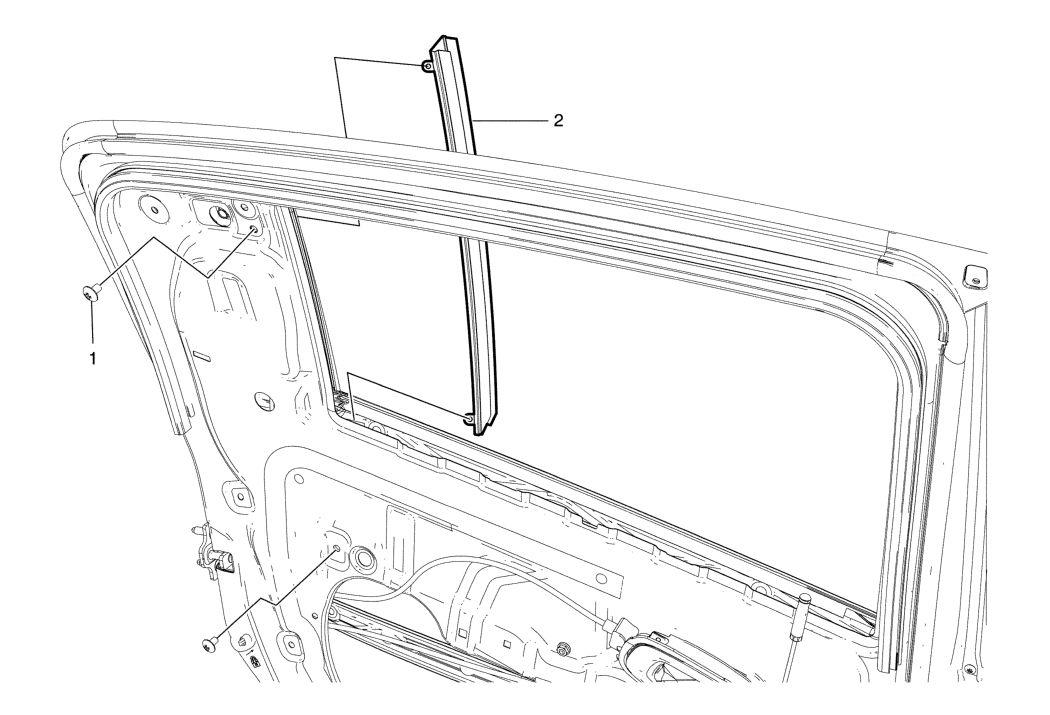

Fig 1: Rear Side Door Window Channel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Detach the rear side door window from rear side door regulator and then put it down in side door panel. Refer to Rear Side Door Window Replacement . Partially peel off the rear side door window weatherstrip from the door window opening. Refer to Rear Side Door Window Weatherstrip Replacement .
1	Rear Side Door Window Channel Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 8 (71 lb in)
2	Rear Side Door Window Channel Assembly

Callout

Component Name

Preliminary Procedure

Detach the rear side door window from rear side door regulator and then put it down in side door panel. Refer to Rear Side Door Window Replacement .
Partially peel off the rear side door window weatherstrip from the door window opening. Refer to Rear Side Door Window Weatherstrip Replacement .

Rear Side Door Window Channel Screw (Qty: 2)

CAUTION:

Tighten
8 (71 lb in)

Rear Side Door Window Channel Assembly
