Hybrid/EV Powertrain Control Module 1 Power, Ground and Data Communication Wiring Schematics

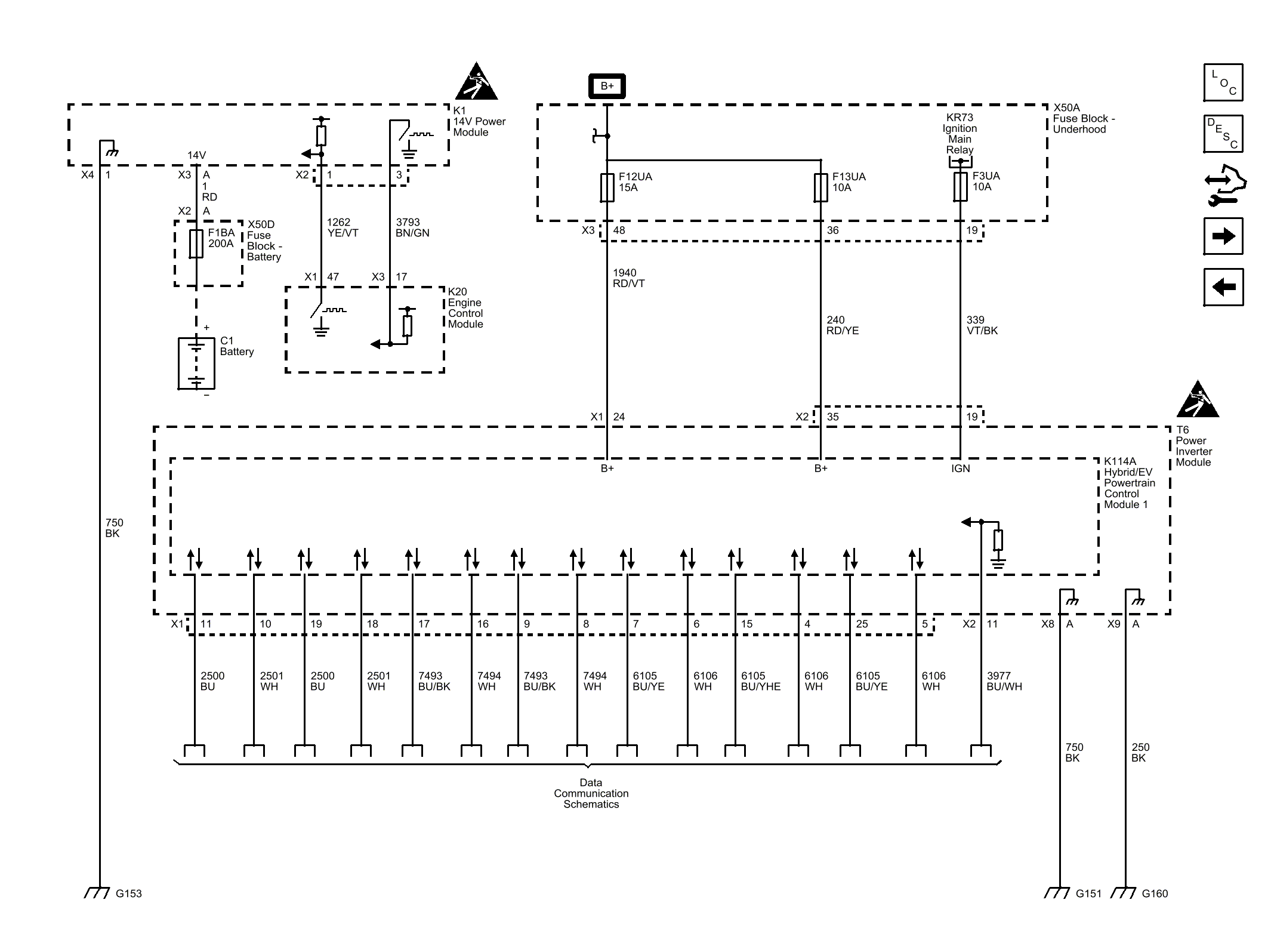

Fig 1: Hybrid/EV Powertrain Control Module 1 Power, Ground and Data Communication Wiring Schematic
GM3239044Courtesy of GENERAL MOTORS COMPANY
