Battery State of Charge Wiring Schematics

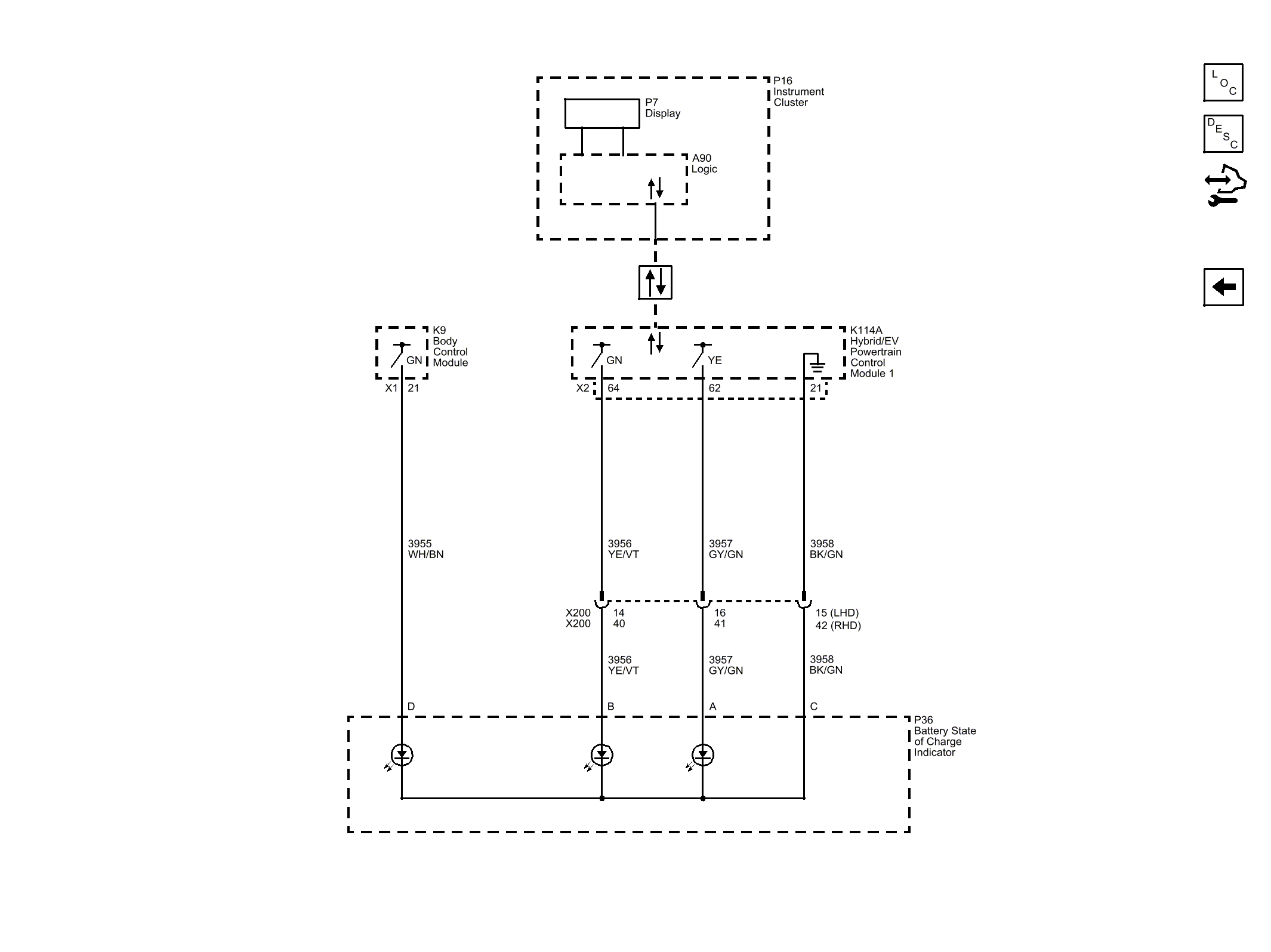

Fig 1: Battery State of Charge Wiring Schematic

GM3228807

Courtesy of GENERAL MOTORS COMPANY
