Hood Ajar Indicator Switch Replacement

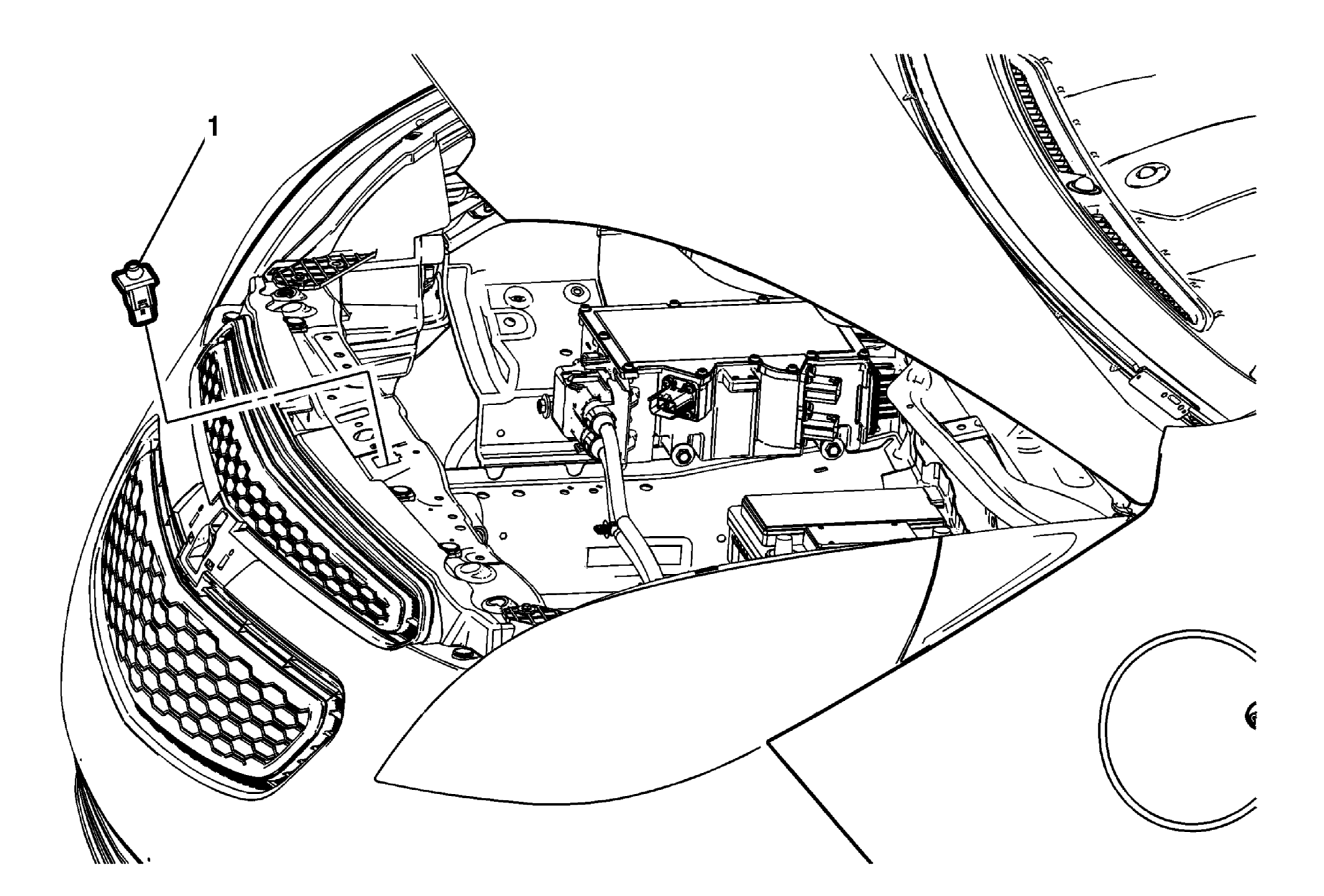

Fig 1: Hood Ajar Indicator Switch
GM3212645Courtesy of GENERAL MOTORS COMPANY
Hood Ajar Indicator Switch Replacement

Callout Component Name
1 Hood Ajar Indicator Switch

Procedure

  1. Using the appropriate tool, gently depress tabs to remove.
  2. Disconnect the electrical connector.
