Door Open Indicator Switch Replacement

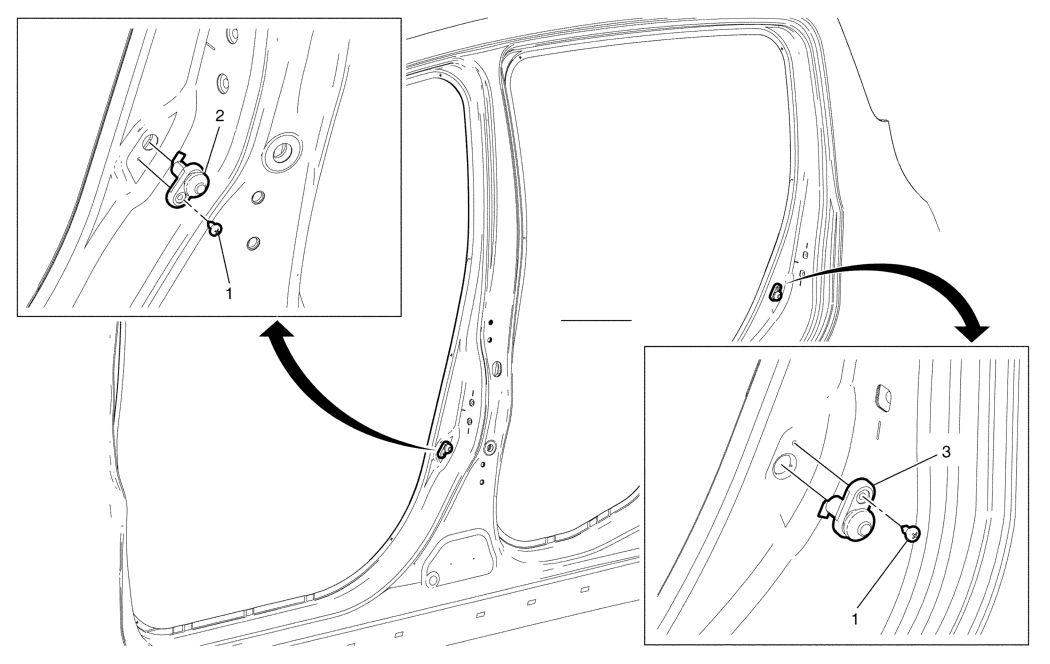

Fig 1: Door Open Indicator Switch
GM2907160Courtesy of GENERAL MOTORS COMPANY
Door Open Indicator Switch Replacement

Callout Component Name
1 Door Ajar Switch Screw
CAUTION:

Refer to Fastener Caution .
2 Door Ajar Switch

Procedure

  1. Remove the door ajar switch from the body panel.
  2. Disconnect the door ajar switch electrical connector.
