Door Lock Switch Replacement
WARNING: This page is about a different car, the 2012 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.
Door Lock Switch Replacement

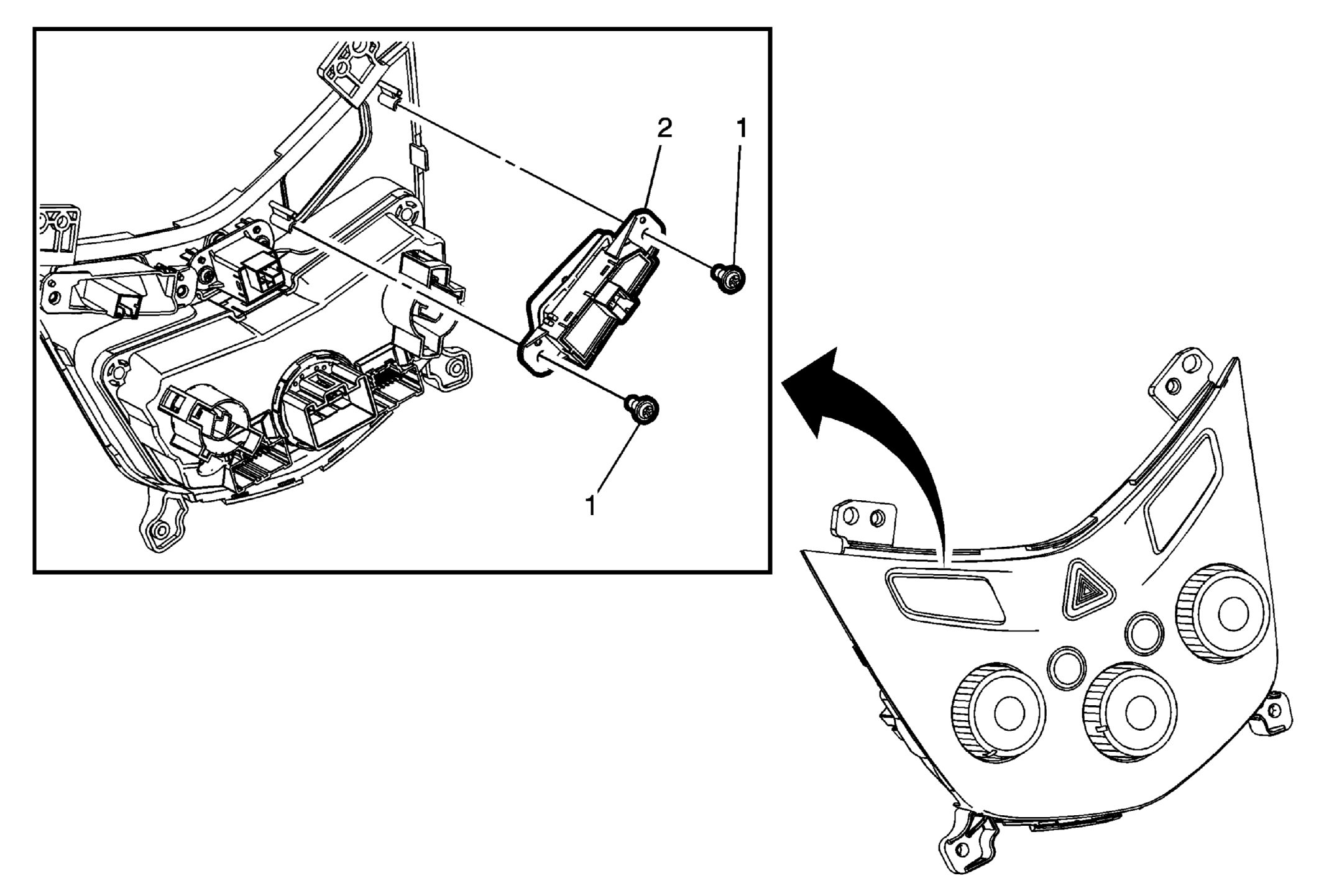

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the heater and air conditioning control. Refer to Heater and Air Conditioning Control Replacement . |
|
| 1 | Door Lock Switch Bolts (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Door Lock Switch Procedure Disconnect the electrical connector. |
