Module Power, Ground and Subsystem References

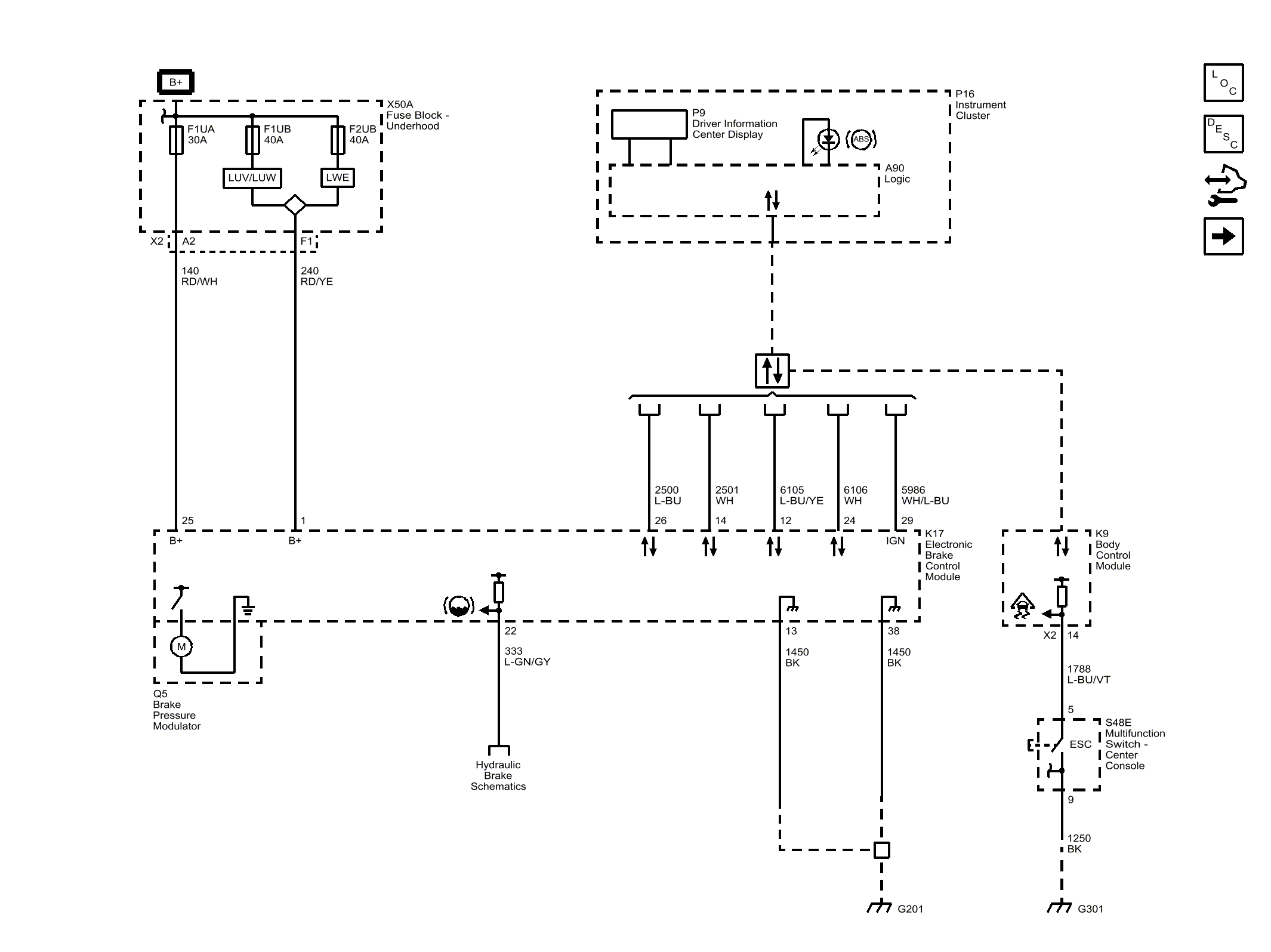

Fig 1: Module Power, Ground and Subsystem References Wiring Schematic

GM3394417

Courtesy of GENERAL MOTORS COMPANY
