Defogger Wiring Schematics: Defogger

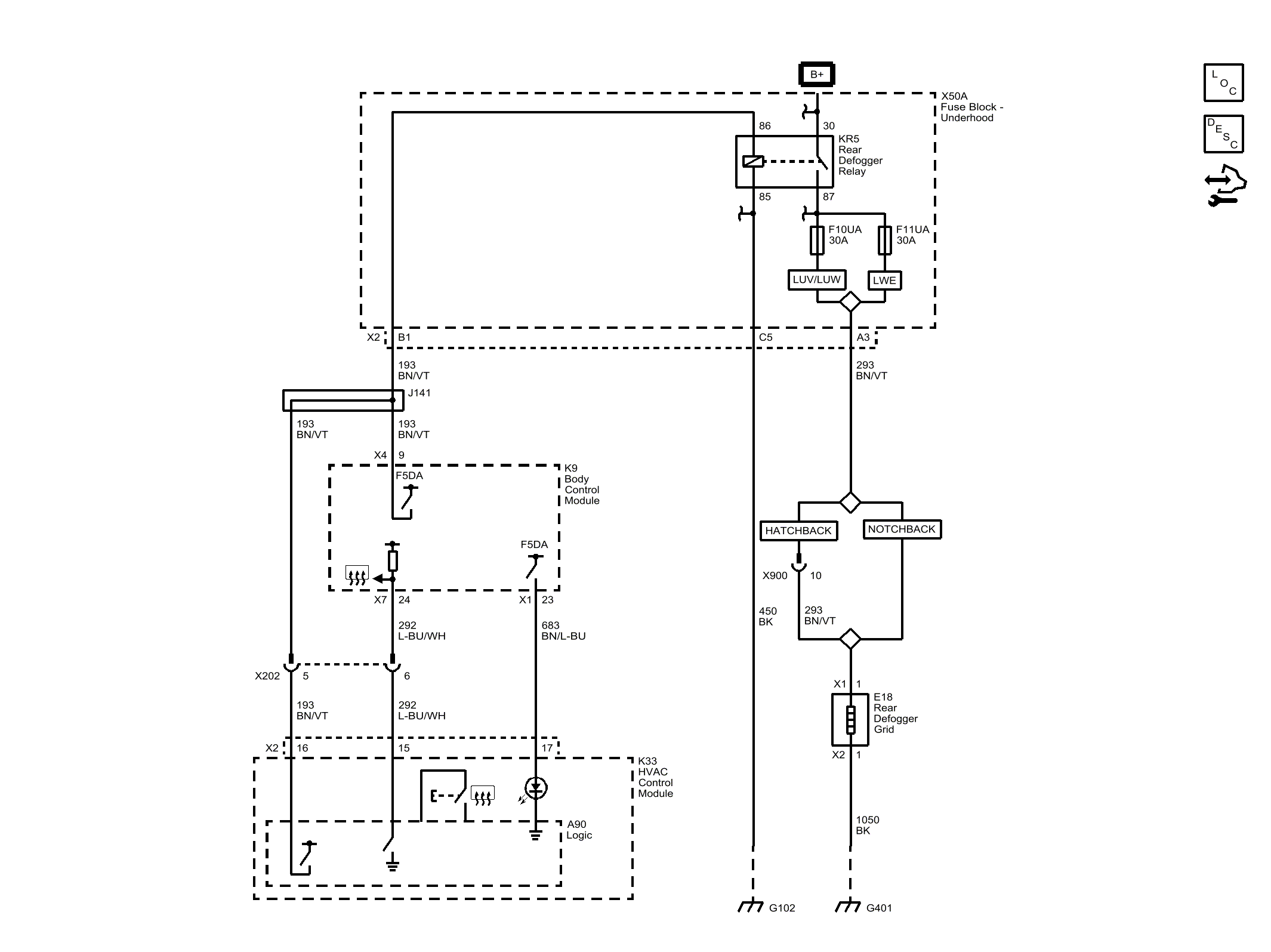

Fig 1: Defogger Wiring Schematic

GM3394696

Courtesy of GENERAL MOTORS COMPANY
