High Speed GMLAN

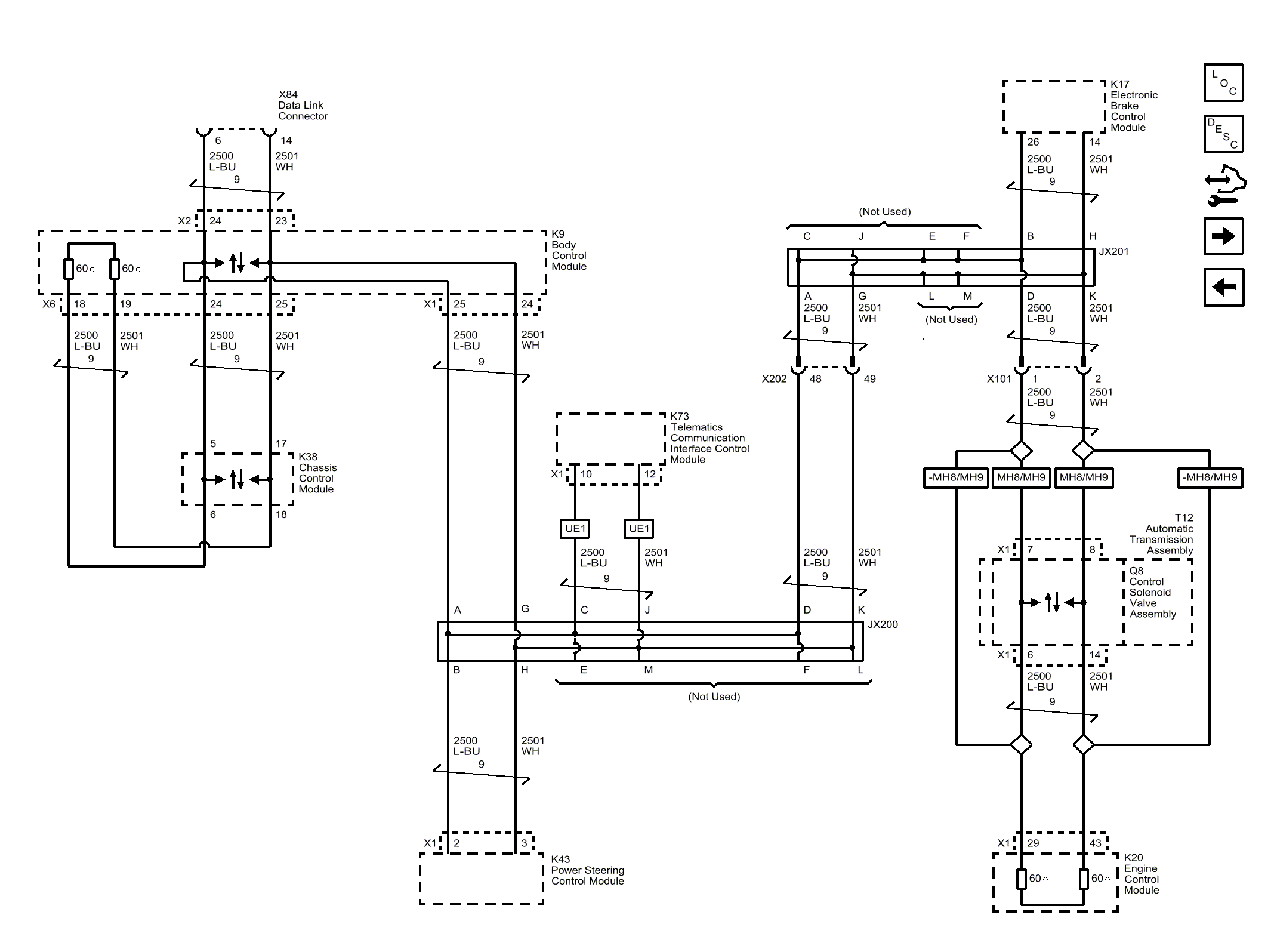

Fig 1: High Speed GMLAN Wiring Schematic

GM3394329

Courtesy of GENERAL MOTORS COMPANY
