Power, Ground, Data Communications and Subsystem References (1 of 5)

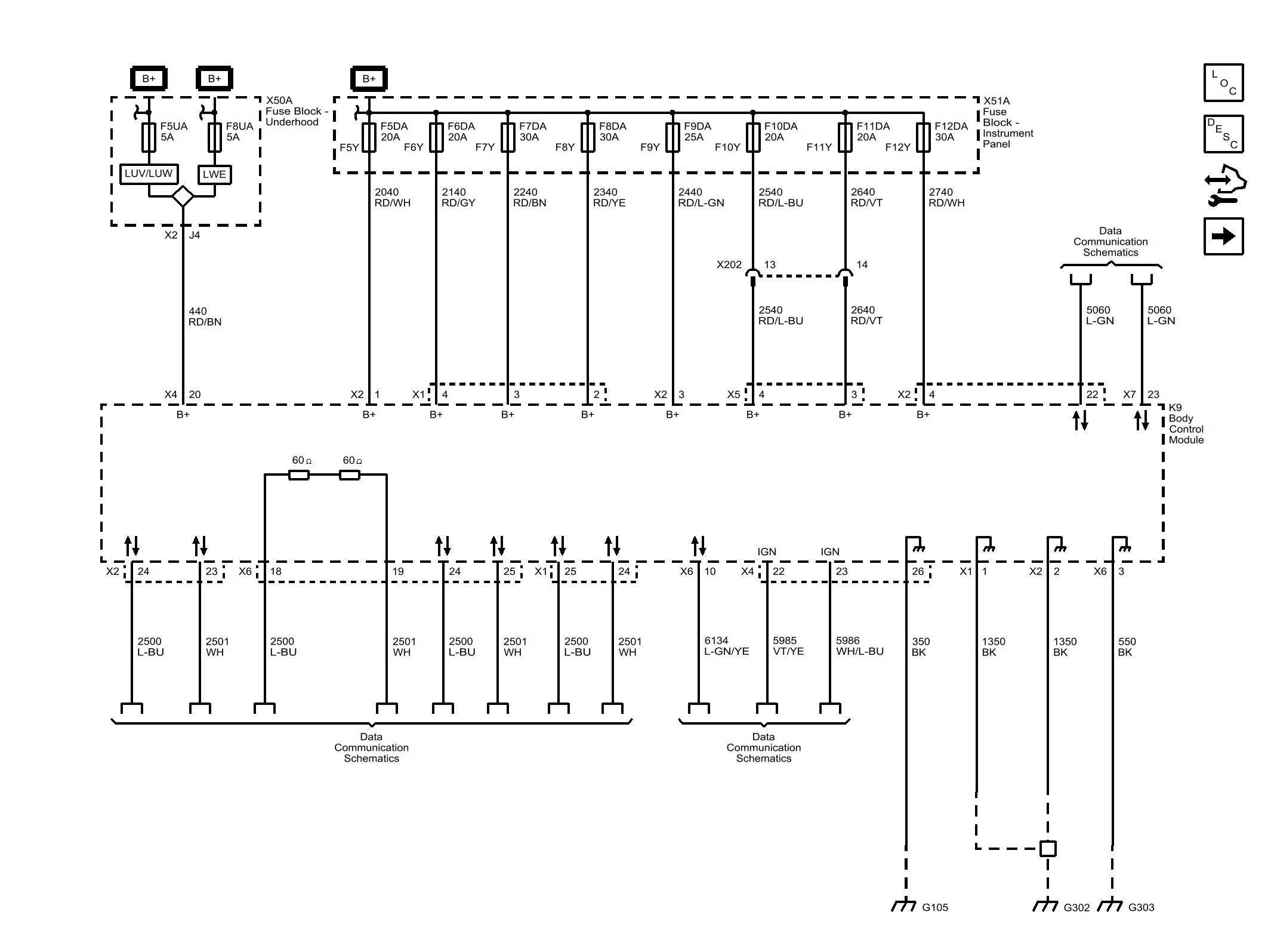

Fig 1: Power, Ground, Data Communications And Subsystem References (1 Of 5) Wiring Schematic

GM3394719

Courtesy of GENERAL MOTORS COMPANY
