Fuel Controls - Fuel Pump Controls

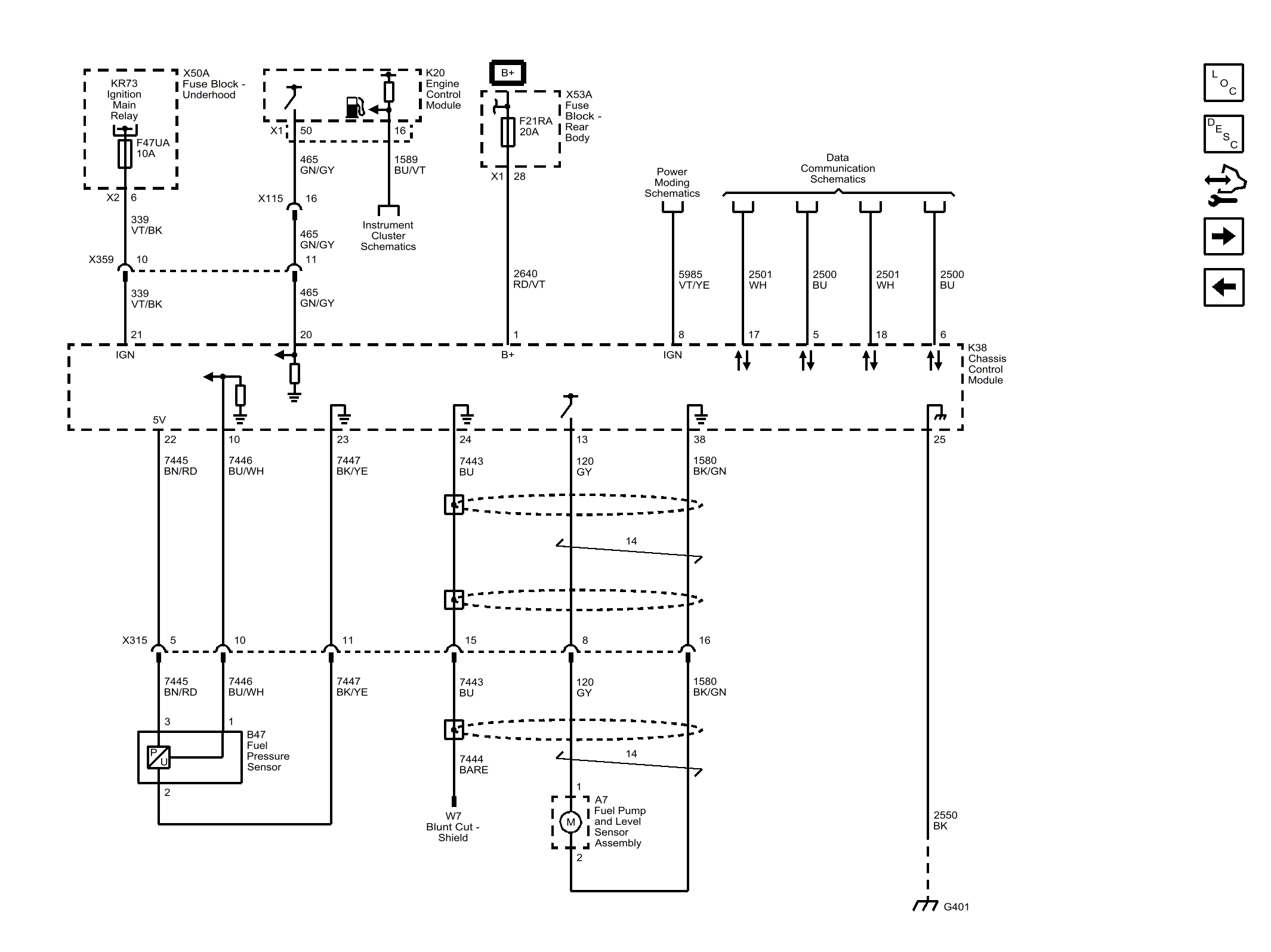

Fig 1: Fuel Controls Wiring Schematic - Fuel Pump Controls
GM3554165Courtesy of GENERAL MOTORS COMPANY
