Evaporative Emission Canister Replacement

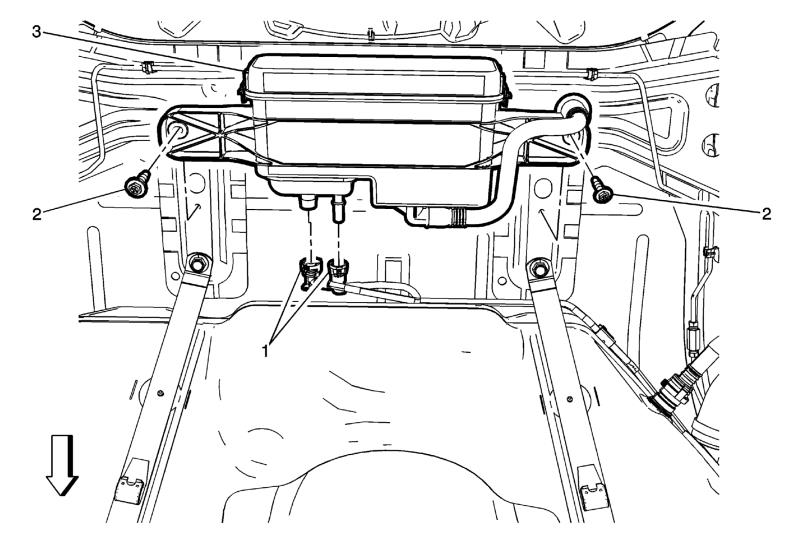

Fig 1: Evaporative Emission Canister
GM3238650Courtesy of GENERAL MOTORS COMPANY
Evaporative Emission Canister Replacement

Callout Component Name
WARNING:

To avoid any vehicle damage, serious personal injury or death when major components are removed from the vehicle and the vehicle is supported by a hoist, support the vehicle with jack stands at the opposite end from which the components are being removed and strap the vehicle to the hoist.

WARNING:

Refer to Gasoline/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedures

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the rear suspension support. Refer to Rear Suspension Support Removal and Installation .
1 EVAP Emission Hoses
Procedure
Disconnect the EVAP hoses from the EVAP canister. Refer to Plastic Collar Quick Connect Fitting Service .
2 EVAP Emission Canister Fasteners (Qty: 2)
CAUTION:

Refer to Fastener Caution .
3 EVAP Emission Canister
