Defogger Wiring Schematics: Defogger

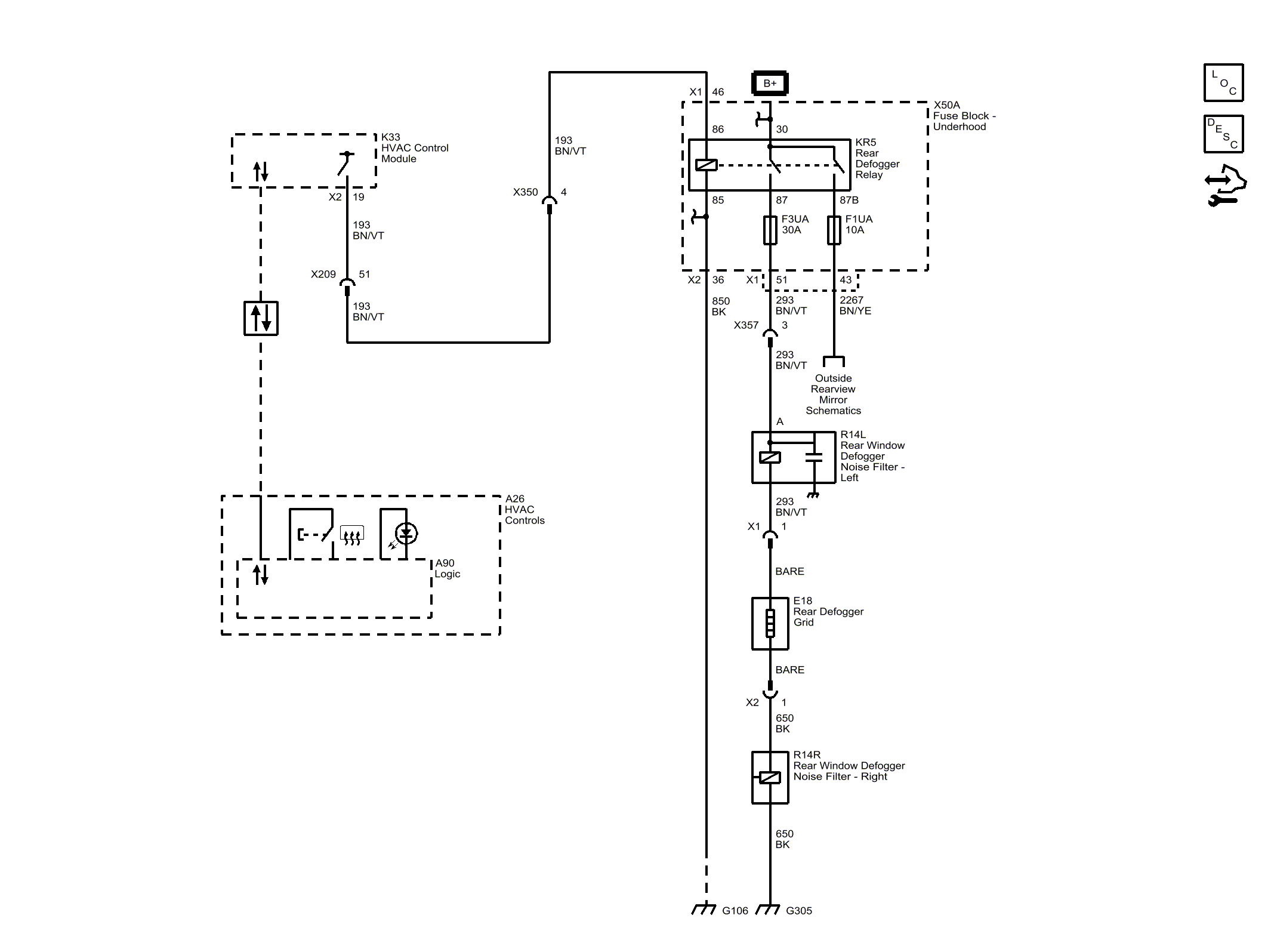

Fig 1: Defogger Wiring Schematic

GM3554045

Courtesy of GENERAL MOTORS COMPANY
