Front Side Sensors

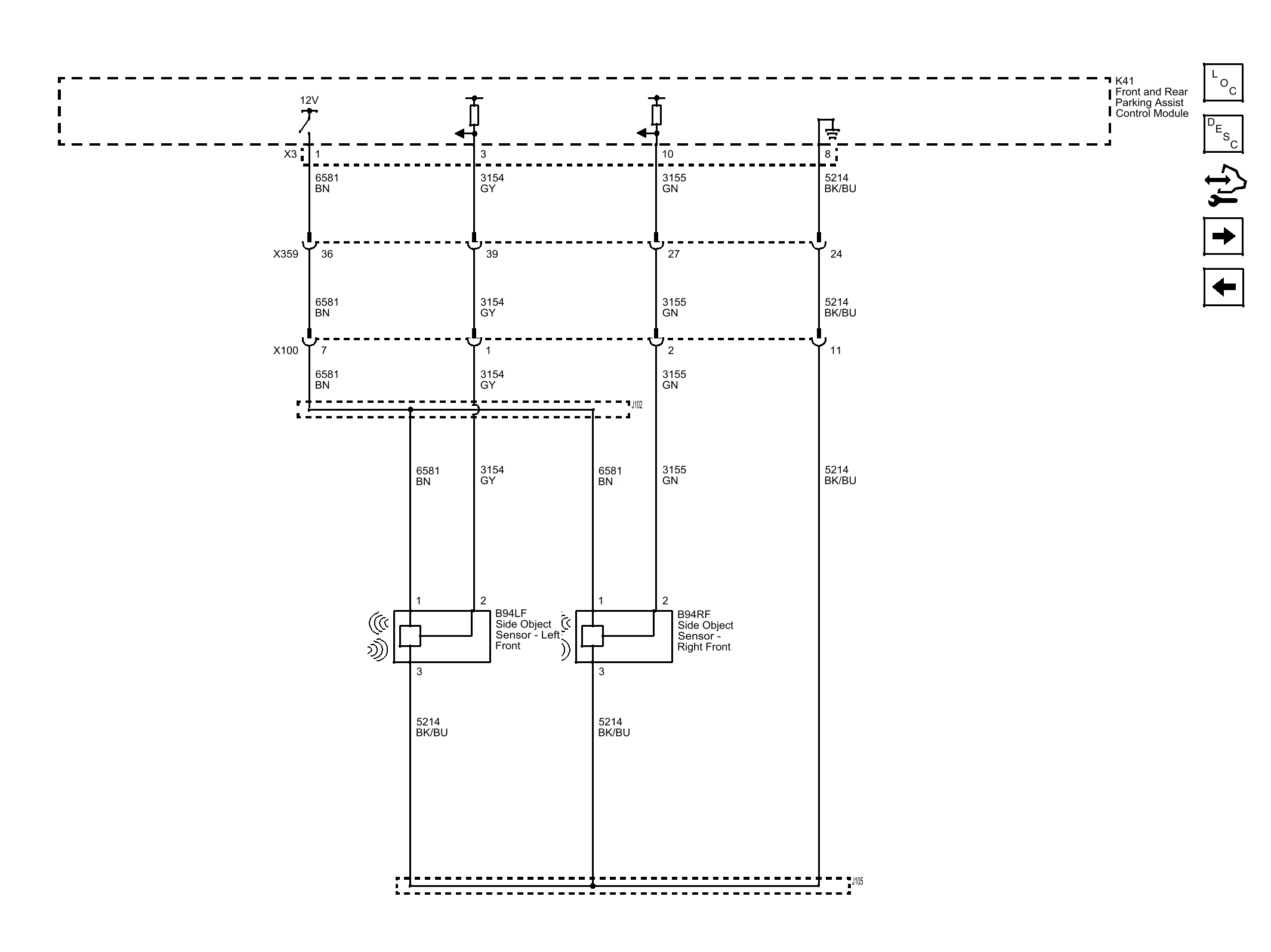

Fig 1: Front Side Sensors Wiring Schematic

GM3708289

Courtesy of GENERAL MOTORS COMPANY
