Right Front of the Engine Compartment

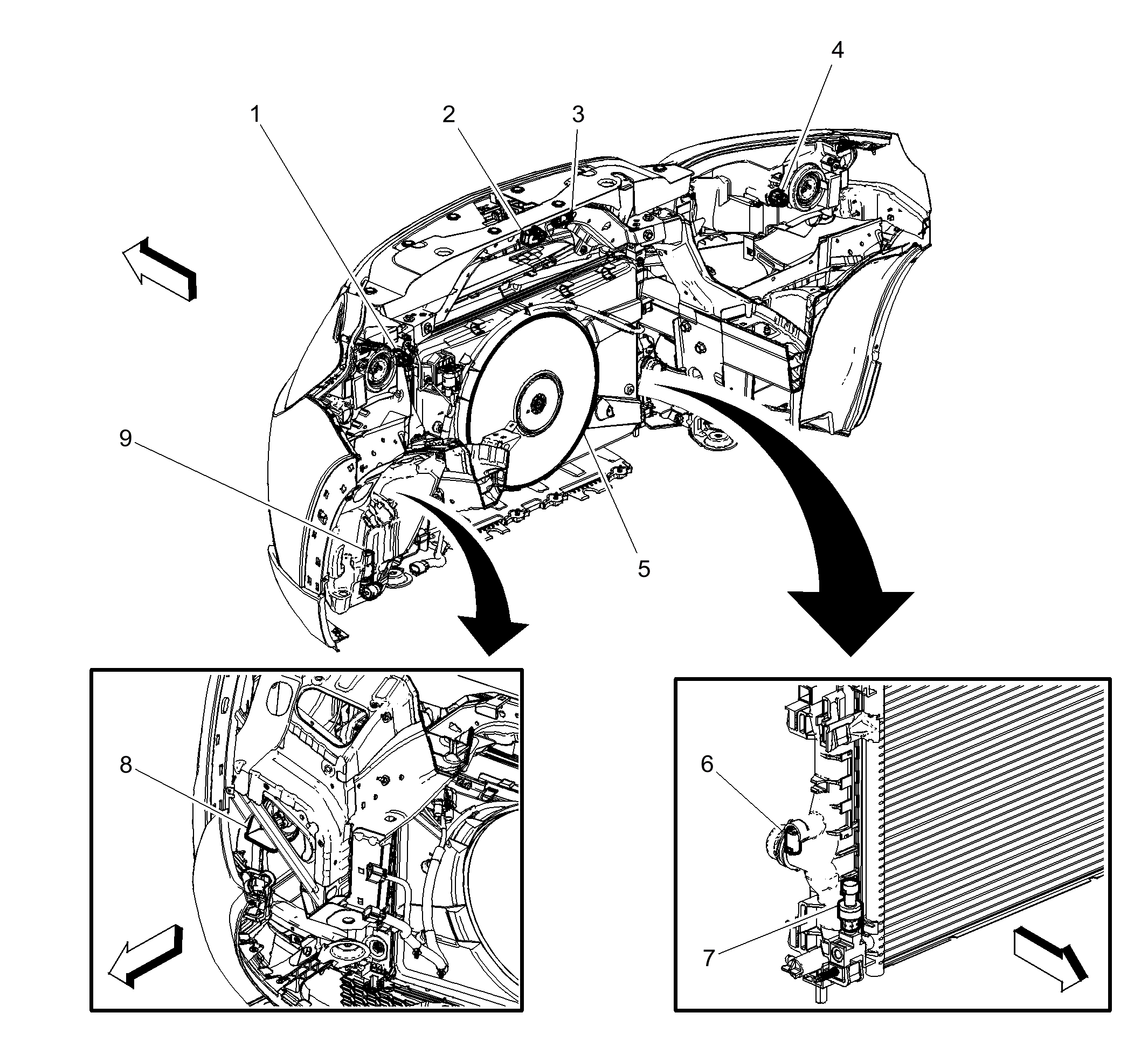

Fig 1: Front of Engine Compartment
GM3349998Courtesy of GENERAL MOTORS COMPANY
Items
1:  B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left (Z49)
2:  B55 Hood Ajar Switch B55 Hood Ajar Switch
3:  B34 Engine Coolant Temperature Sensor
4:  B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor
5:  G10 Cooling Fan Motor G10 Cooling Fan Motor
6:  G24 Windshield Washer Pump G24 Windshield Washer Pump
7:  P12 Horn P12 Horn
8:  G24 Windshield Washer Pump G24 Windshield Washer Pump
9:  P12 Horn P12 Horn
