Liftgate Latch Striker Replacement

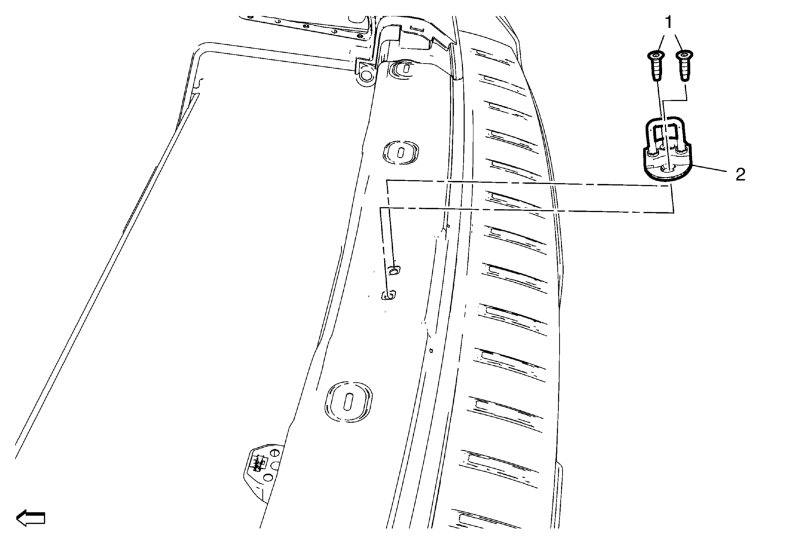

Fig 1: Liftgate Latch Striker
GM2372677Courtesy of GENERAL MOTORS COMPANY
Liftgate Latch Striker Replacement

Callout Component Name
Preliminary Procedure
Remove the rear compartment sill trim plate. Refer to Rear Compartment Sill Trim Plate Replacement
1 Liftgate Latch Striker Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Liftgate Latch Striker
