Front Side Door Outside Handle Replacement

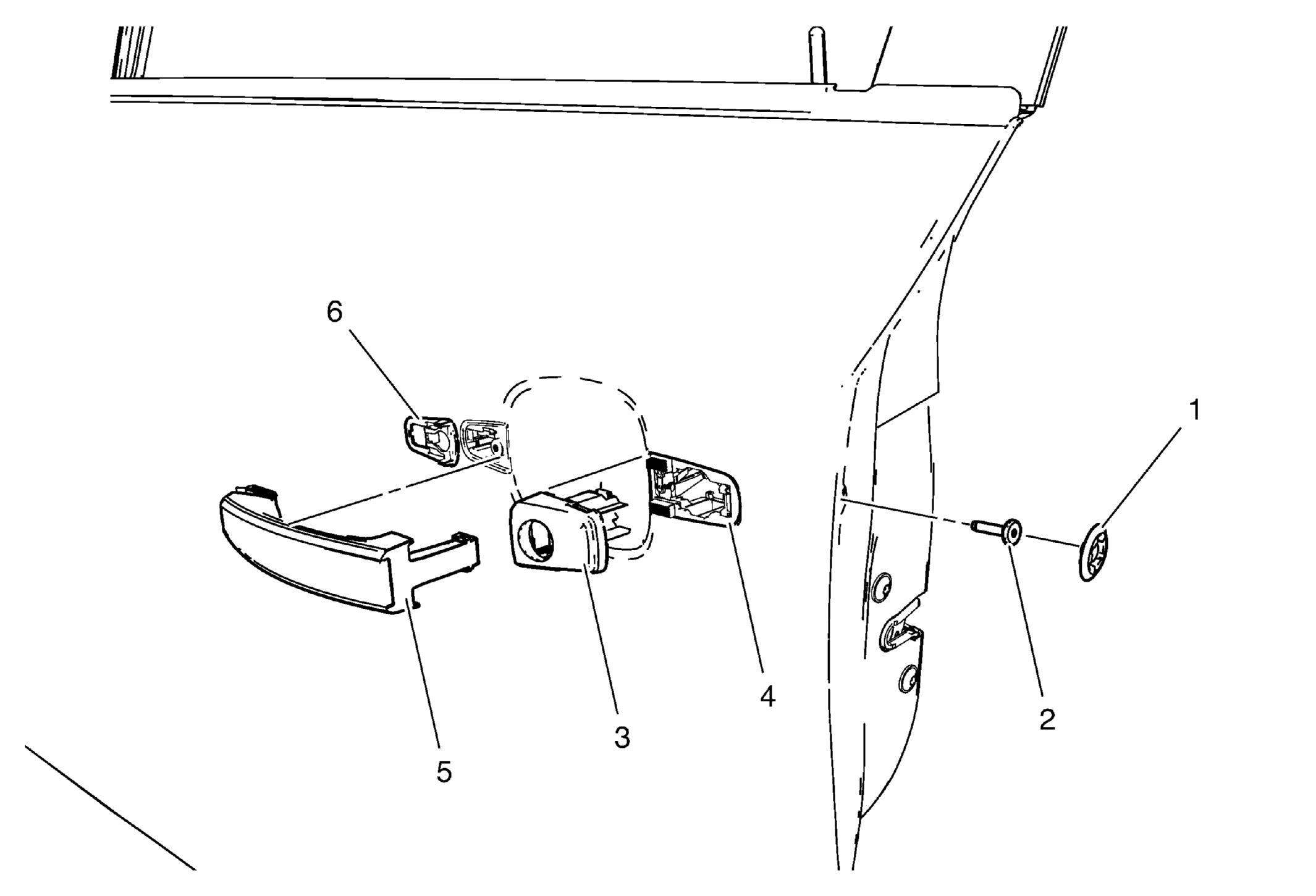

Fig 1: Front Side Door Outside Handle Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Bolt Access Plug Procedure Use a plastic flat-bladed tool to remove.
2	Front Side Door Outside Handle Bolt CAUTION: Refer to Fastener Caution . Procedure Loosen the front side door outside handle bolt until the front side door outside handle cap could be removed. Tighten 9 (80 lb in)
3	Front Door Outside Handle Cap
4	Front Door Outside Handle Cap Gasket Procedure Use a plastic flat-bladed tool to remove.
5	Front Door Outside Handle Procedure Pull the outside handle rearward to release it from the inside handle housing. Disconnect the Passive Entry Passive Start connector, if equipped.
6	Front Door Outside Handle Gasket Procedure Inspect the lock, lock cylinder and handle adjustments. Refer to Front Side Door Outside Handle Rod Adjustment .
